Deck Plans
Flybridge
Upper Deck

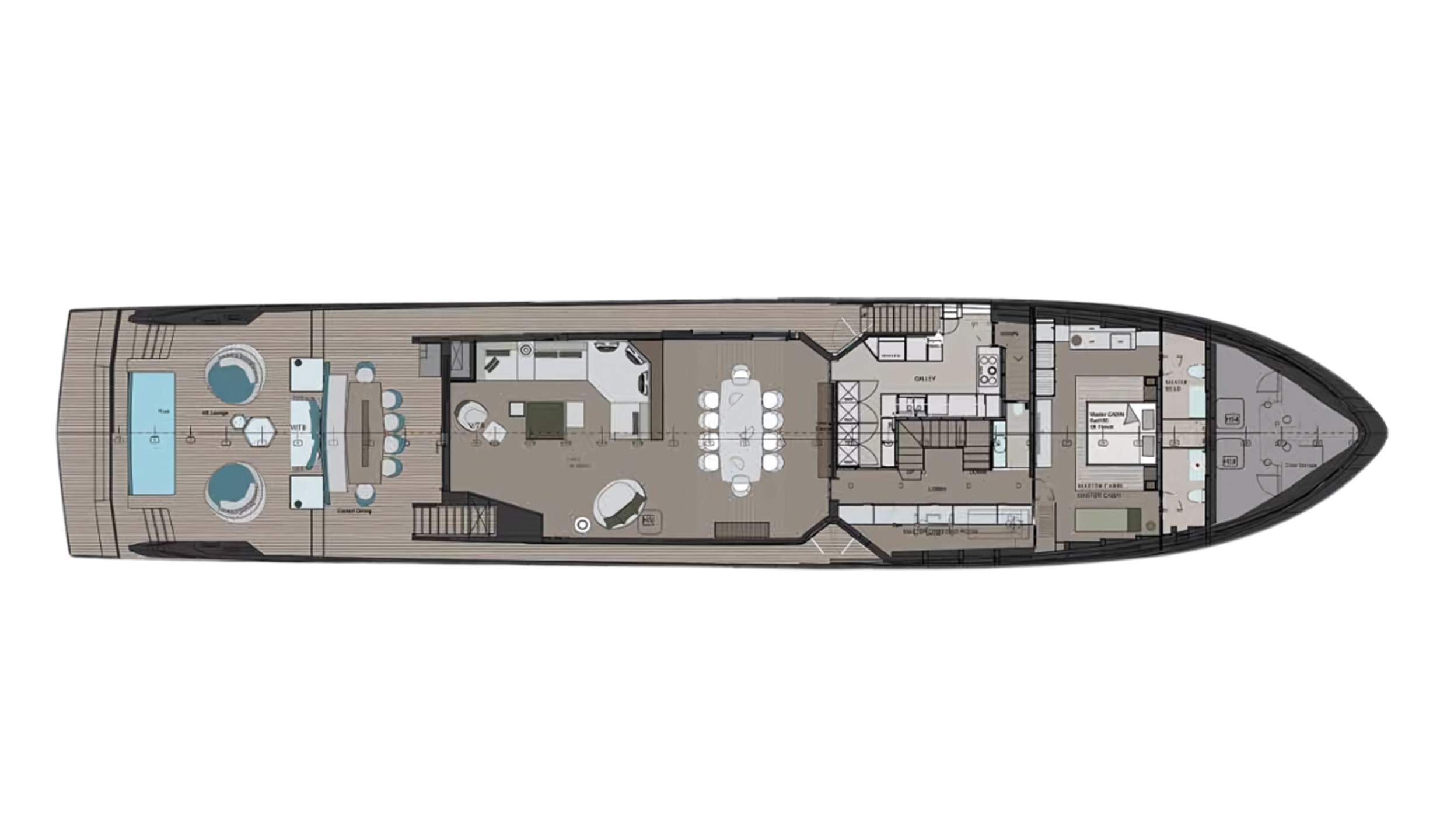

Main Deck

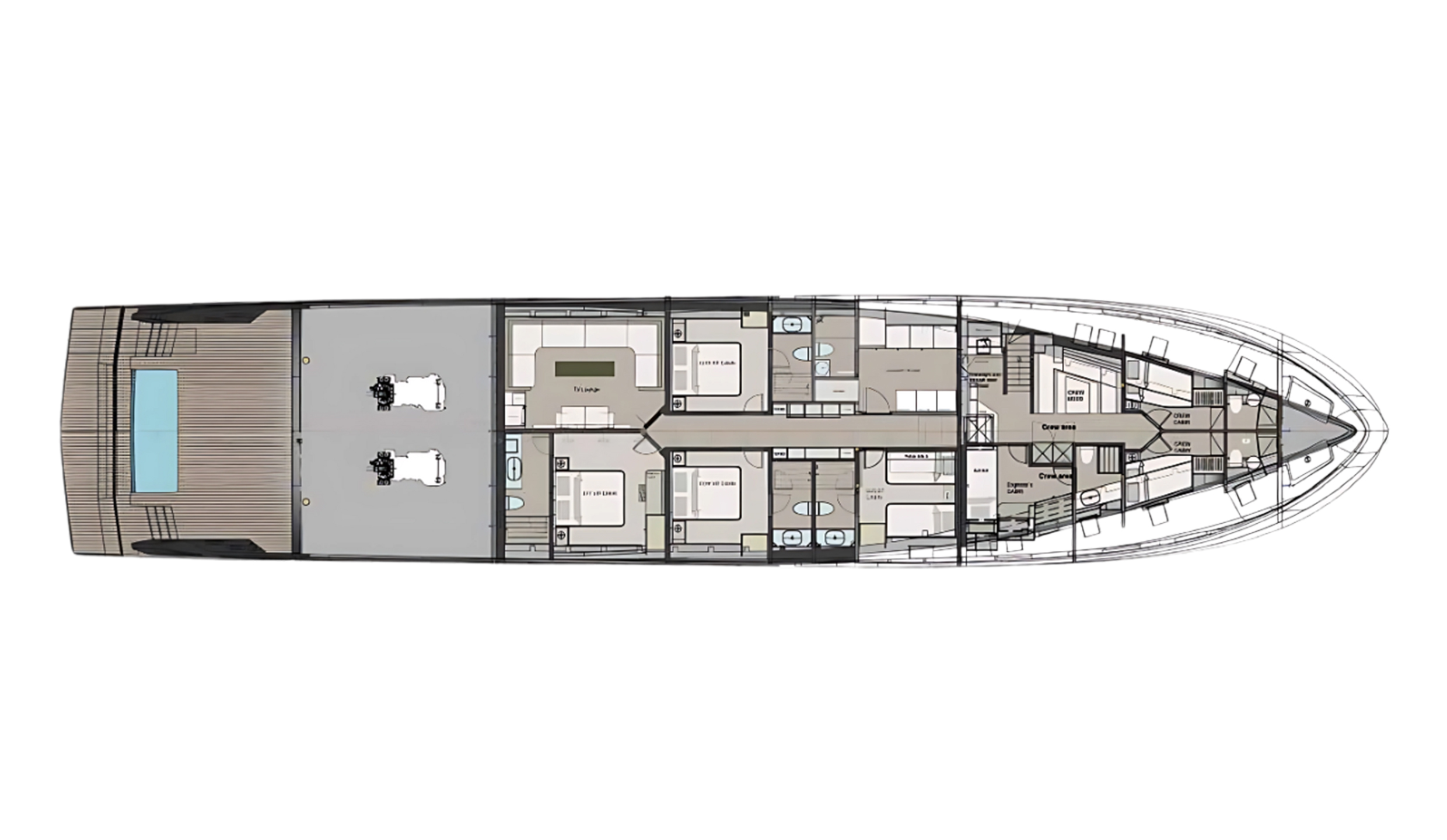

Lower Deck
Description
HIGHLIGHTS
BOAT DETAILS
Builder: NUMARINE
Model: 40 MXP
Model Year: 2026
Location: Istanbul, Turkey
Staterooms: Sleeps 12 in 6 cabins
Crew Sleeps: Sleeps 9 in 6 cabins
ENGINE DETAILS
Engine: Twin MAN D2862 LE 427 900bhp (662Kw) @1800rpm Heavy Duty IMO TIII with SCR system
Max speed: 14 knots
Cruise speed: 12 knots
Range: upto 6000 nm @ 8 knots
DIMENSIONS
LOA: 39.42 m / 129′ 3″ ft
Max Beam: 8.02 m / 26’3″ ft
Max Draft: 2.51 m / 8′ 2″ ft
Hull Material: Steel Hull + Superstructure – FRP Composite
Volume: 365 GT
TANKAGE
Fuel Tank: 49,000 litres / 12,944 US Gal
Water Capacity: 4,000 litres / 1,056.68 US Gal
Black Water Capacity: 4,600 litres / 1,215.19 US Gal
Description
The spirit of the Mediterranean. The soul of an explorer.

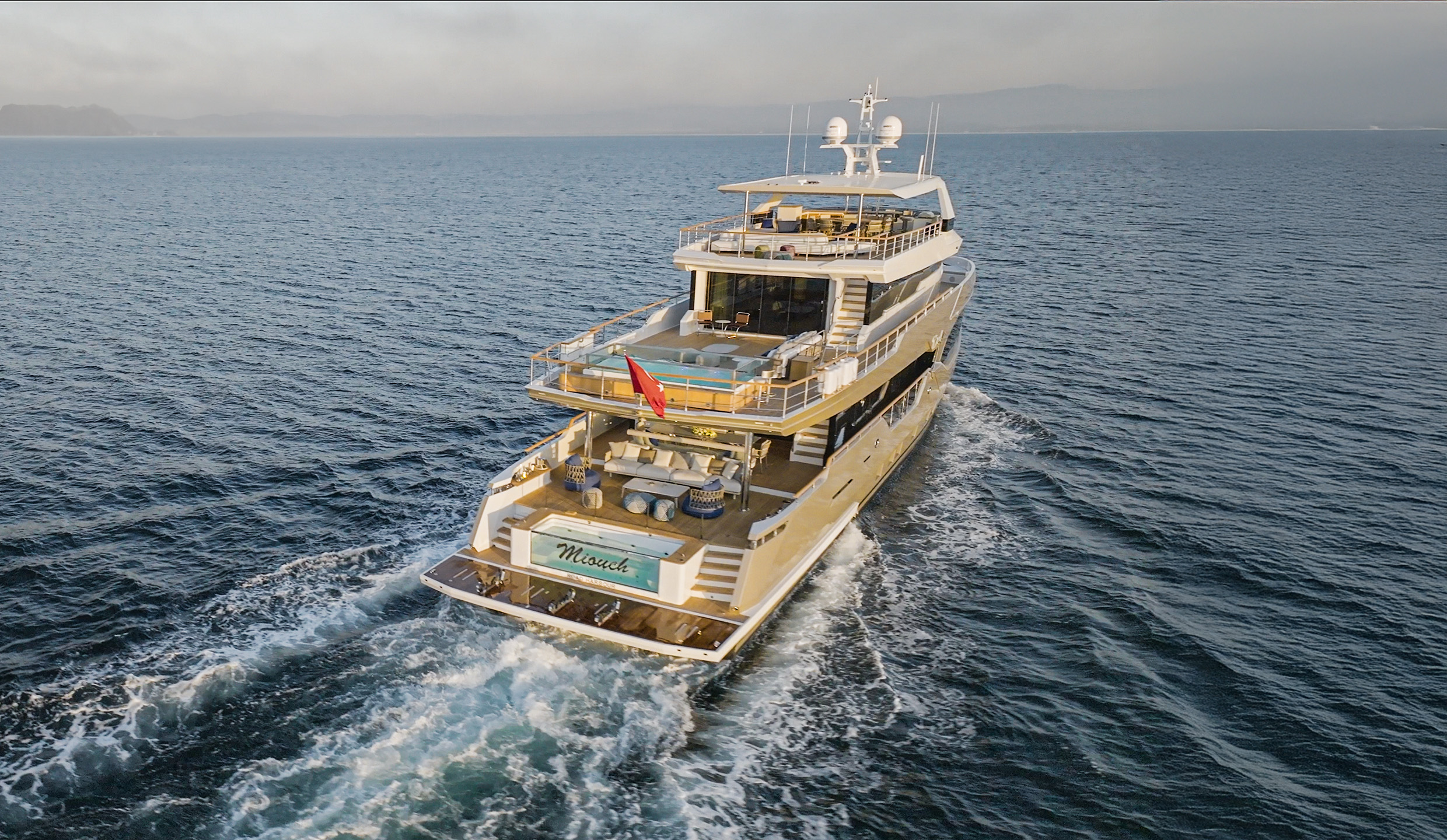

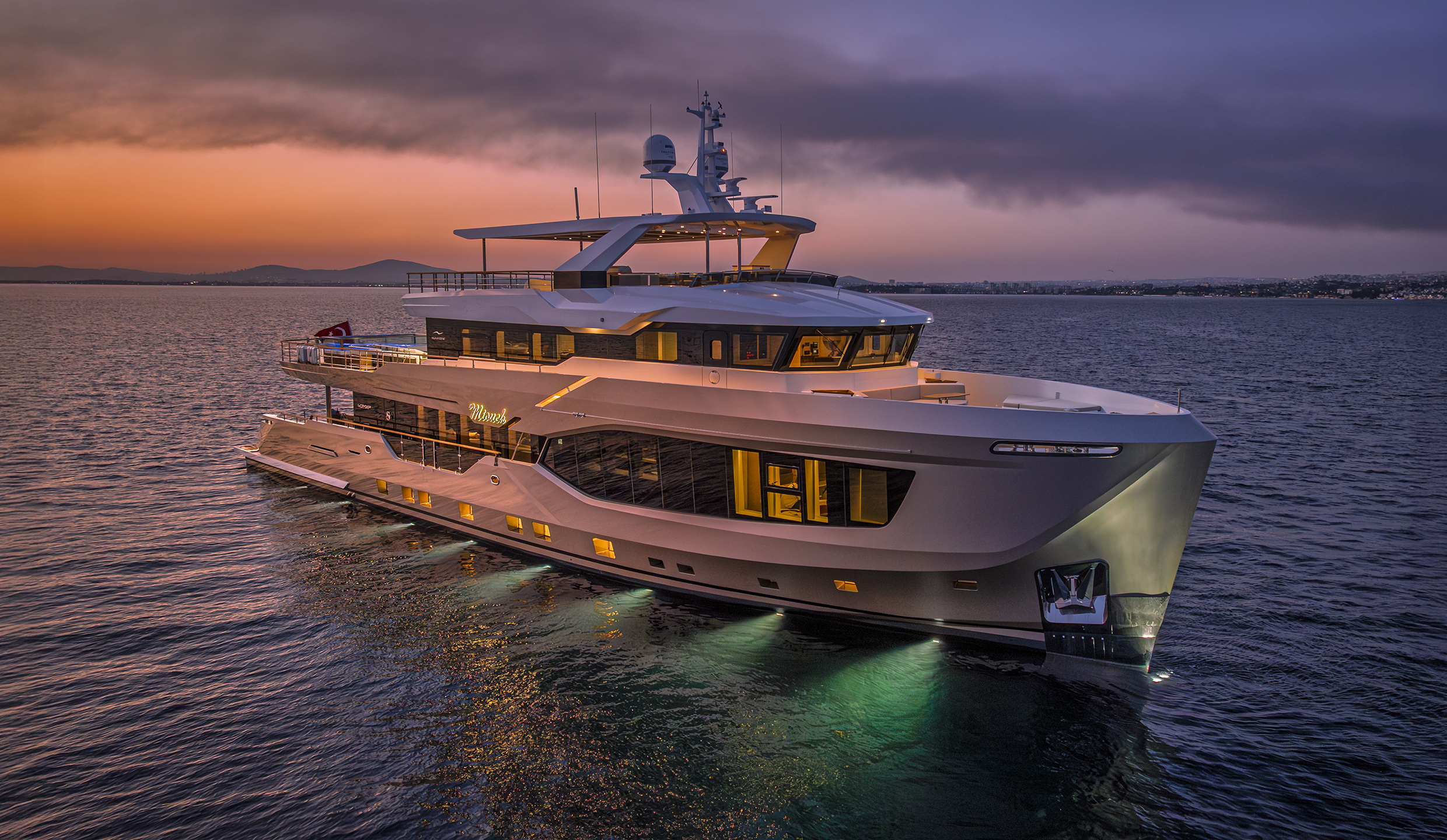

The Numarine 40MXP is a visionary yacht that unites the rugged endurance of an expedition vessel with the relaxed elegance of Mediterranean living.
**MXP—Mediterranean Explorer—**captures the essence of freedom, offering expansive outdoor spaces, effortless access to the water, and a lifestyle-first design that allows owners to roam the world without compromise.
Built around the philosophy that life on board should flow seamlessly between yacht and sea, the 40MXP delivers true long-range credentials with an impressive range of up to 6,000 nautical miles. Its hull, crafted by renowned naval architect Umberto Tagliavini, maximizes internal volume while ensuring efficiency and performance.

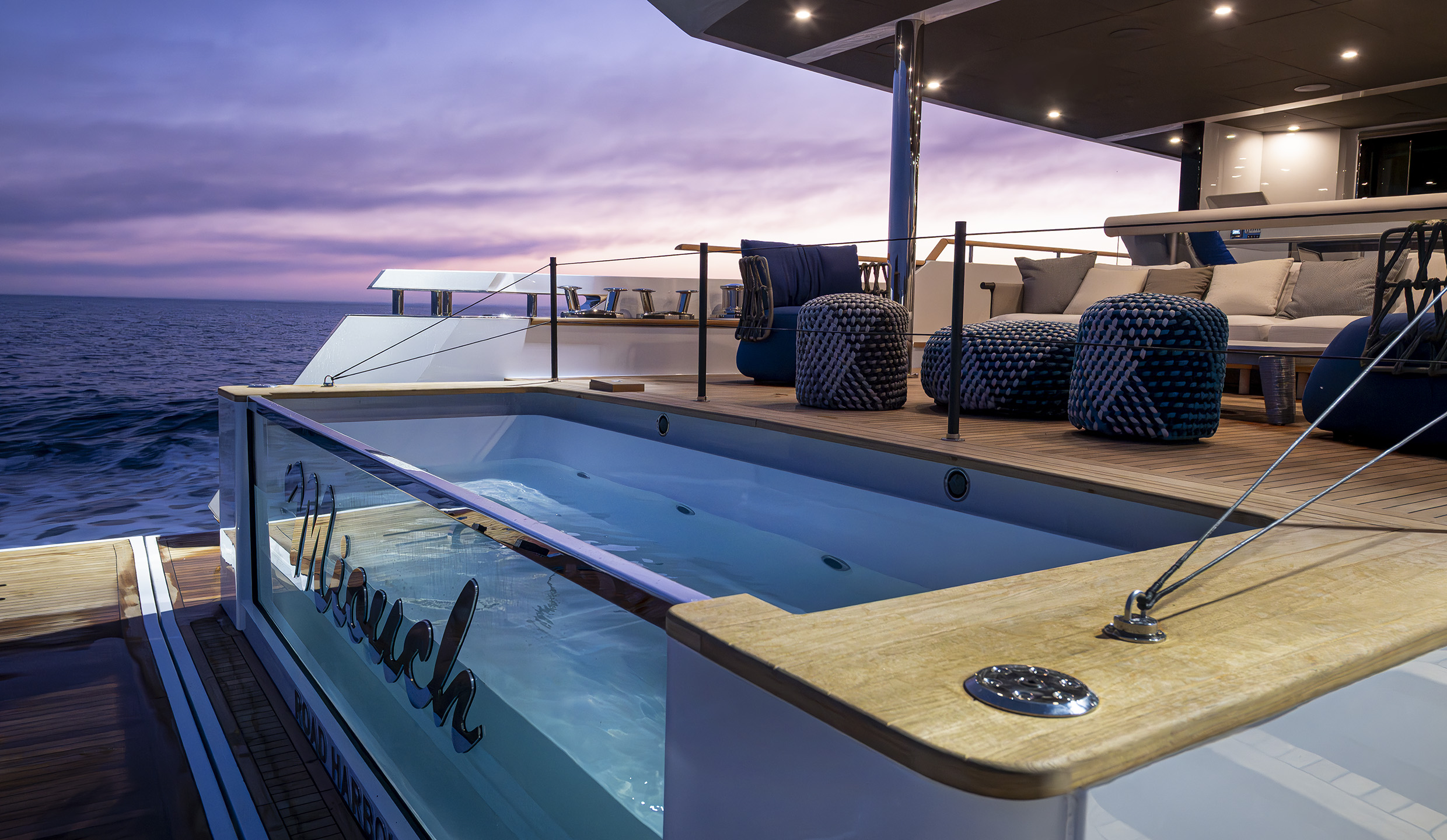

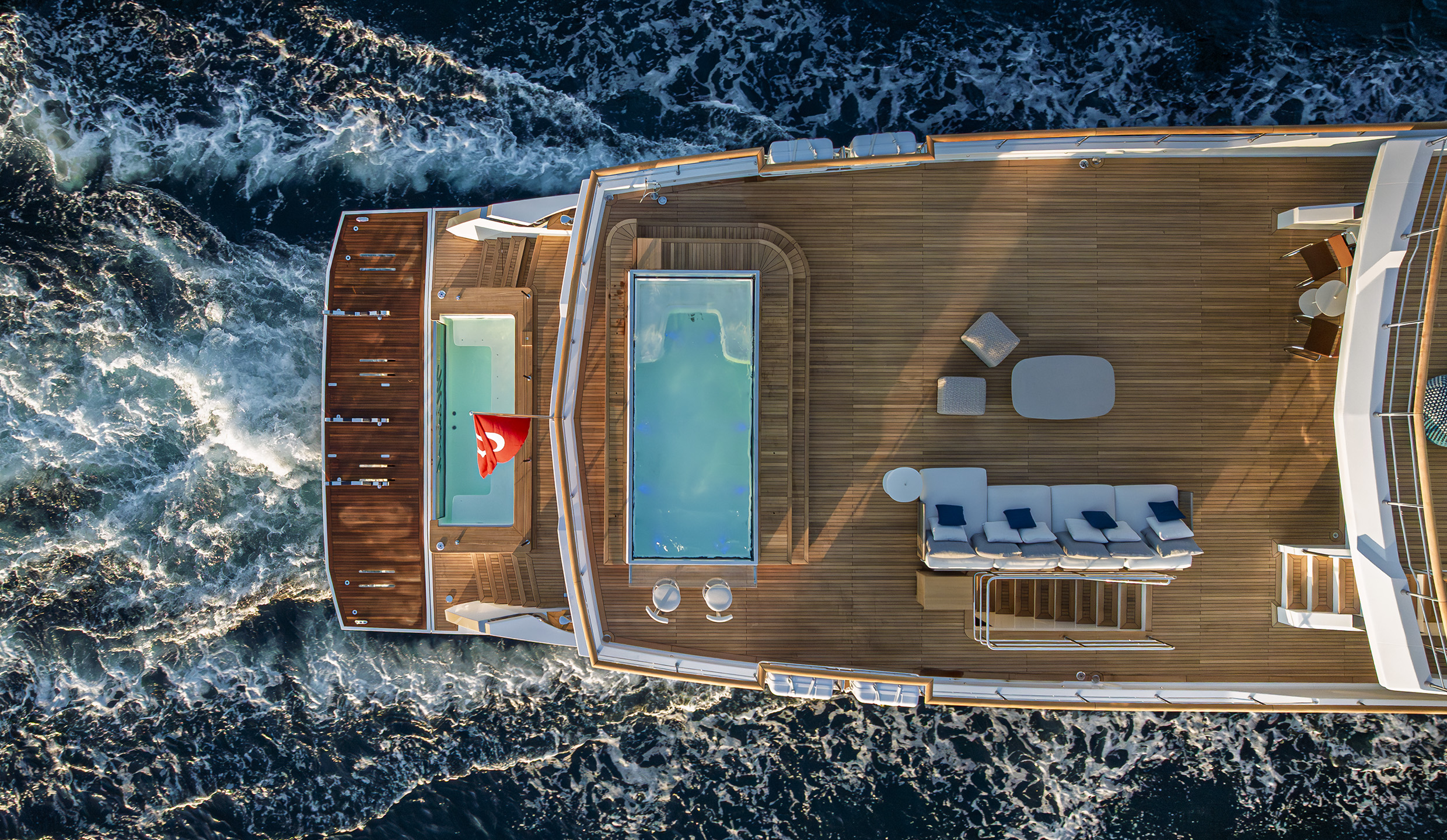

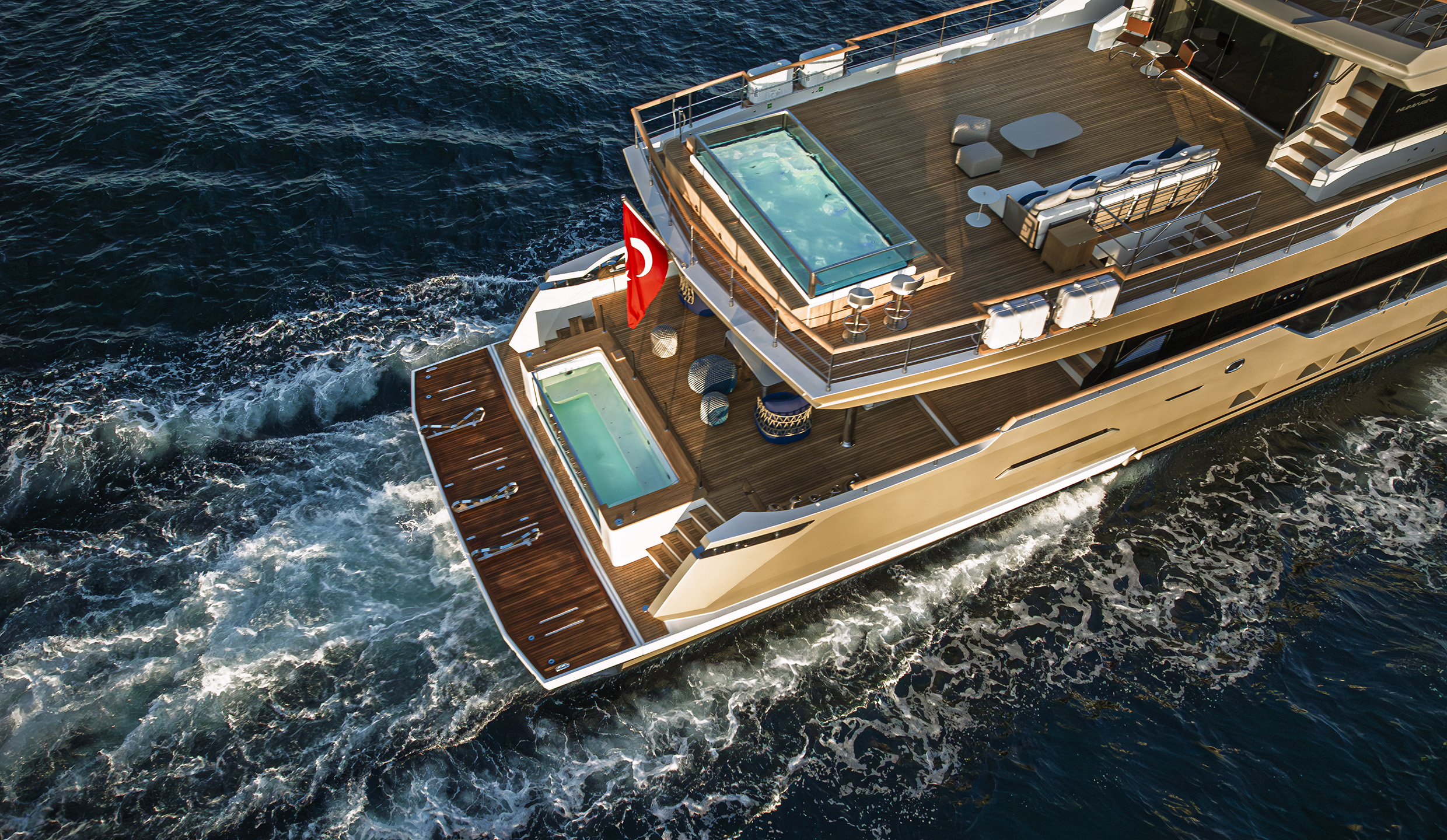

For those who seek both vibrant social moments and peaceful retreats, the yacht’s decks redefine open-air luxury. At the heart of this experience is the beach club, complete with a bespoke pool, expansive lounging areas, and direct sea access. More than an explorer, the 40MXP feels like a private floating villa, immersing guests in the essence of barefoot luxury.

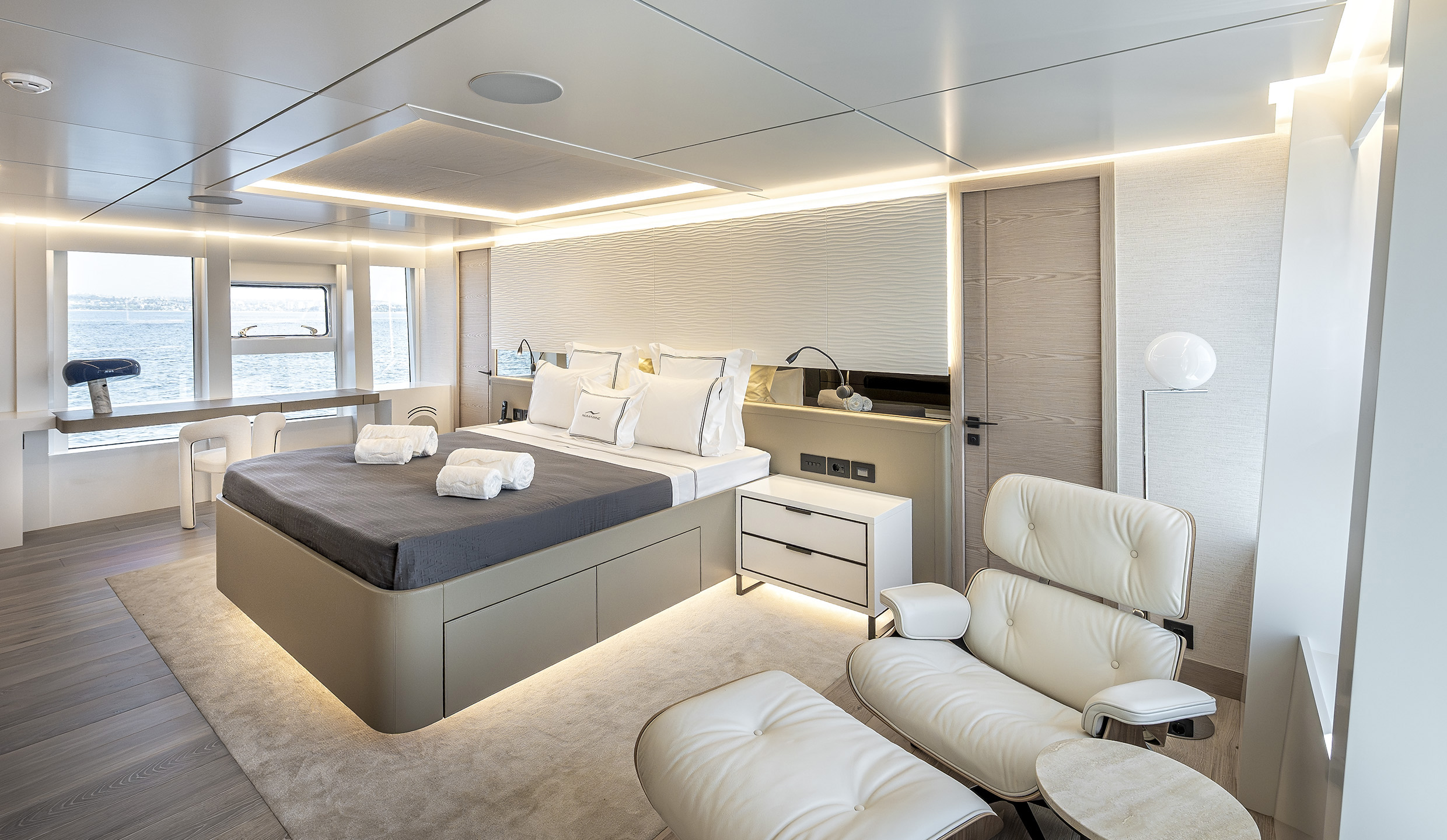

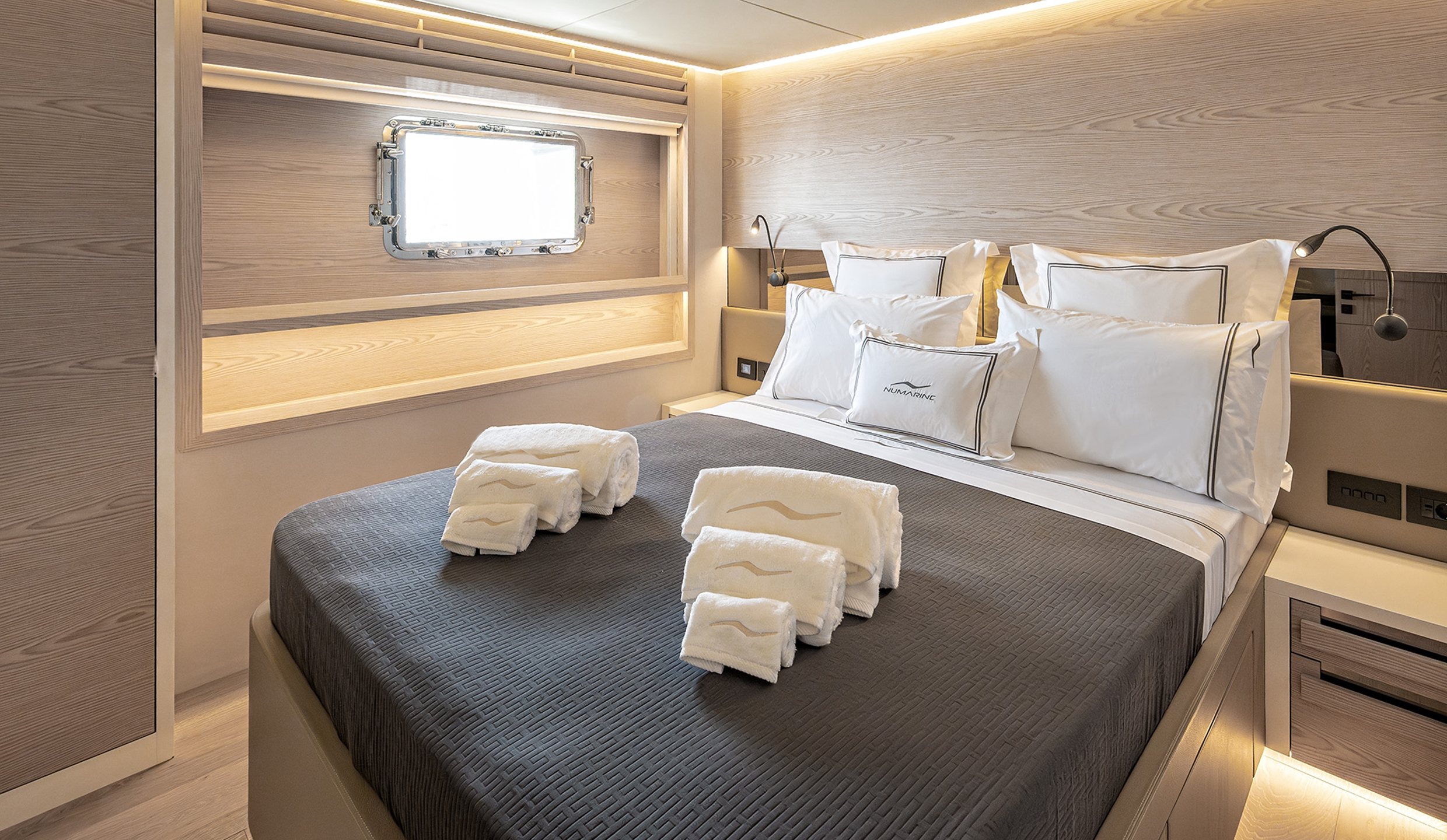

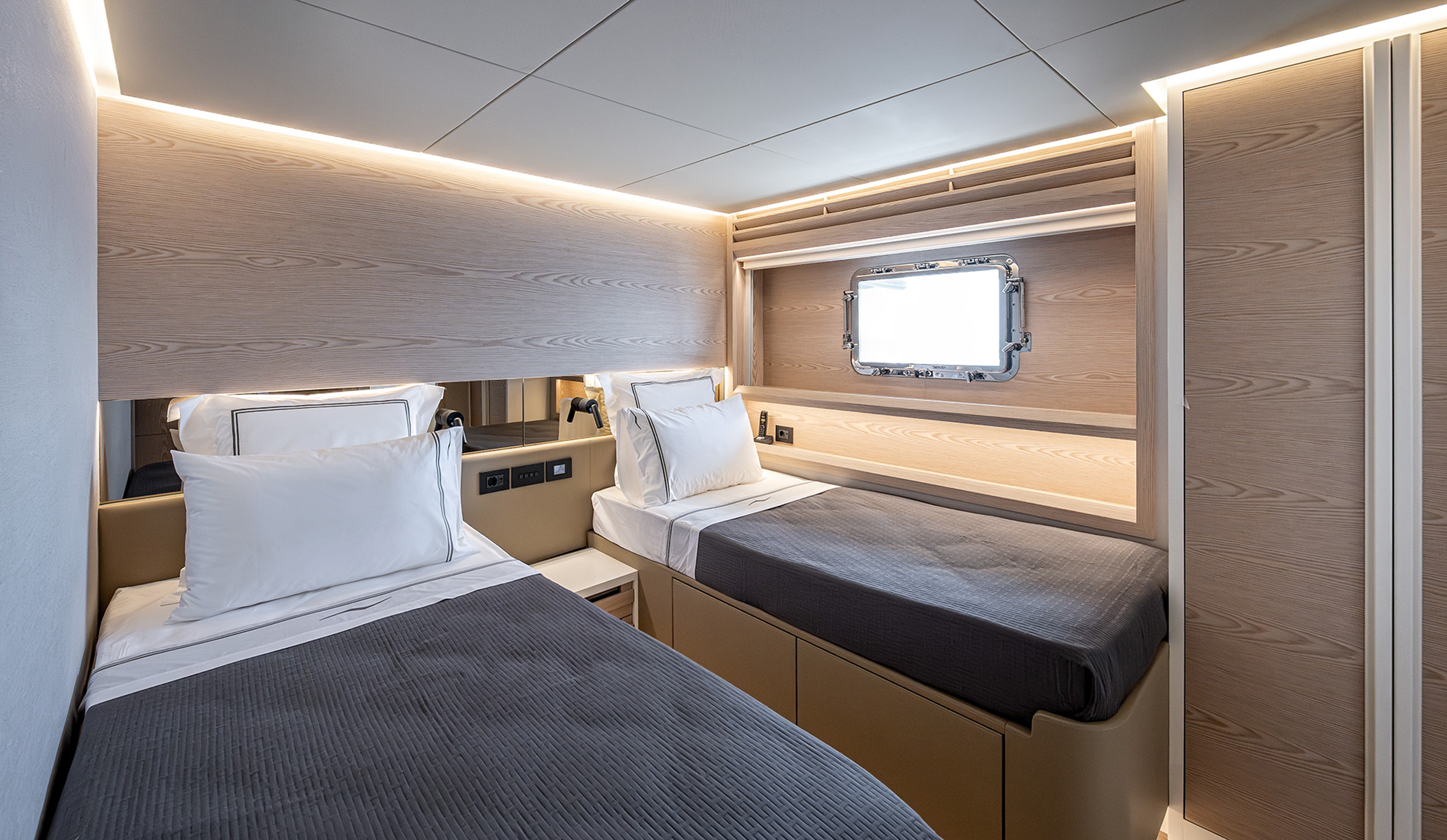

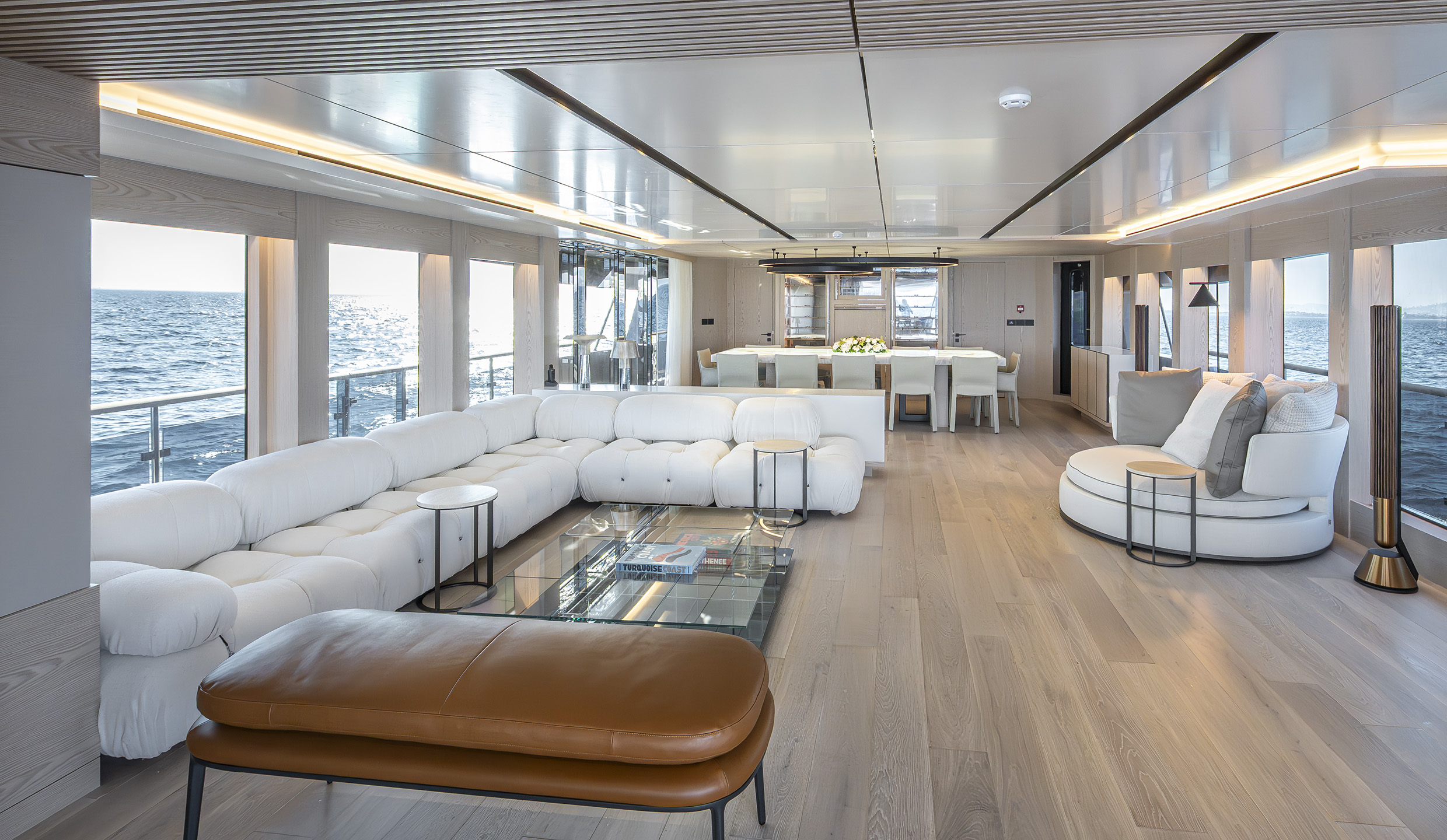

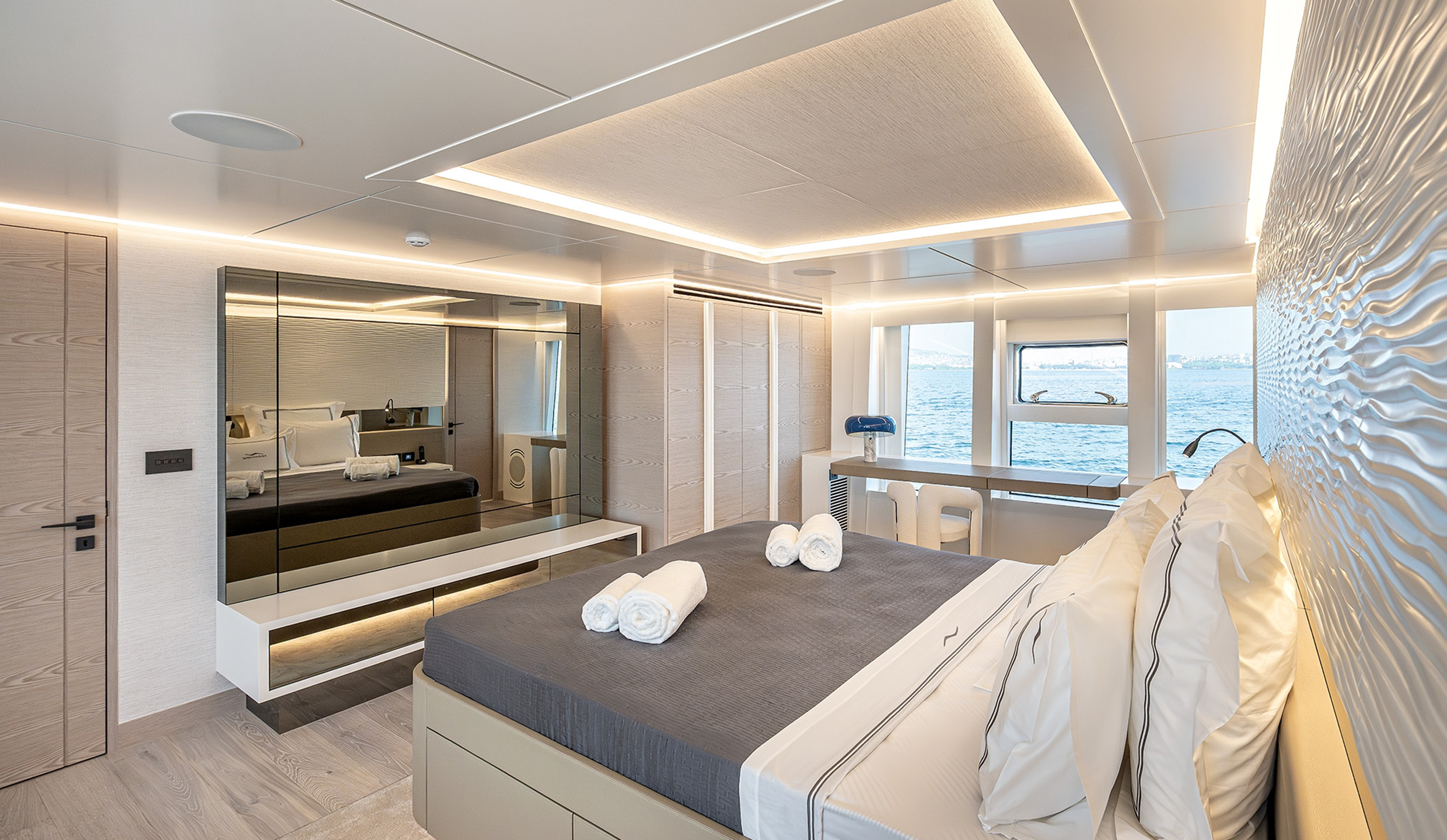

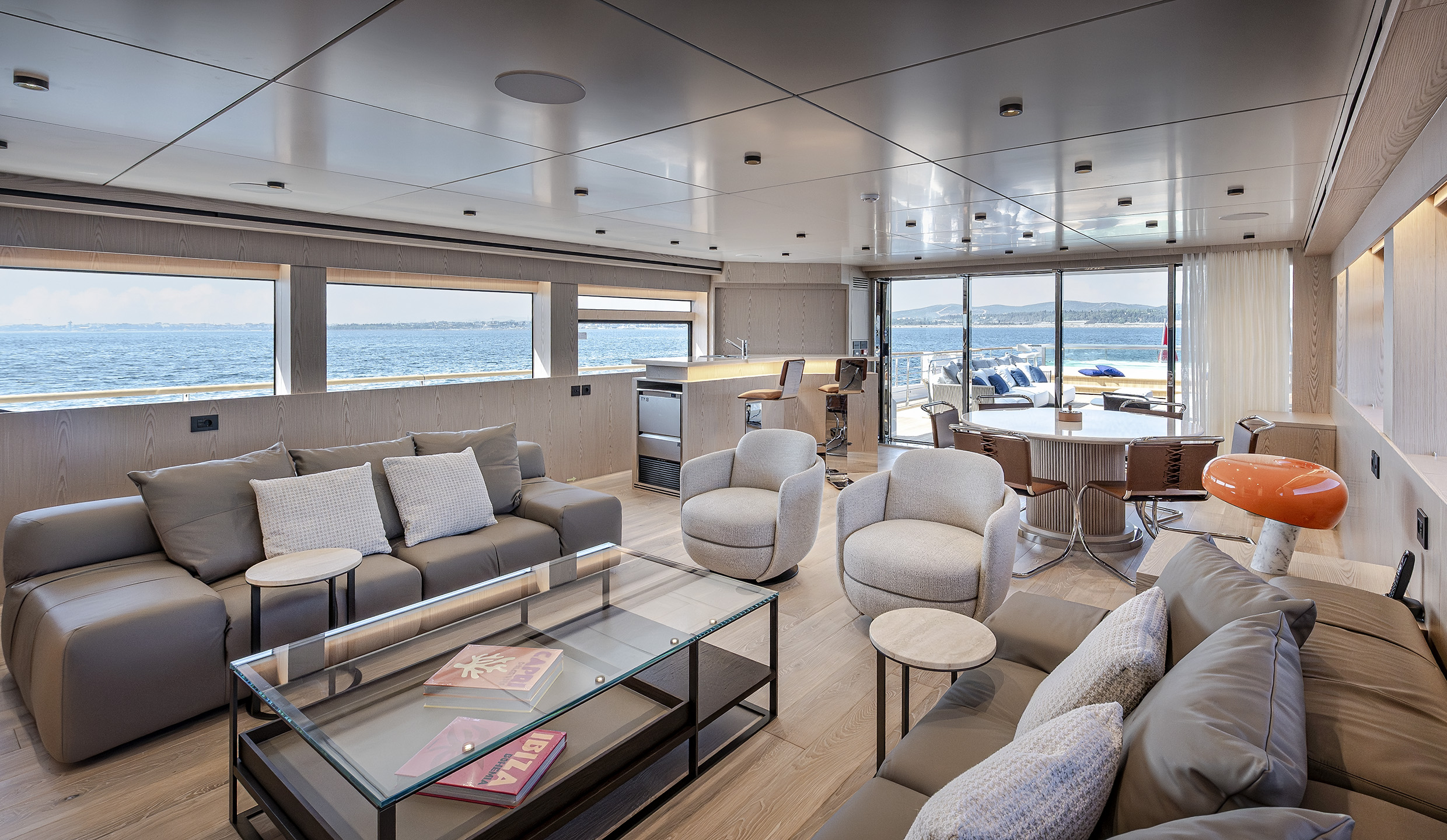

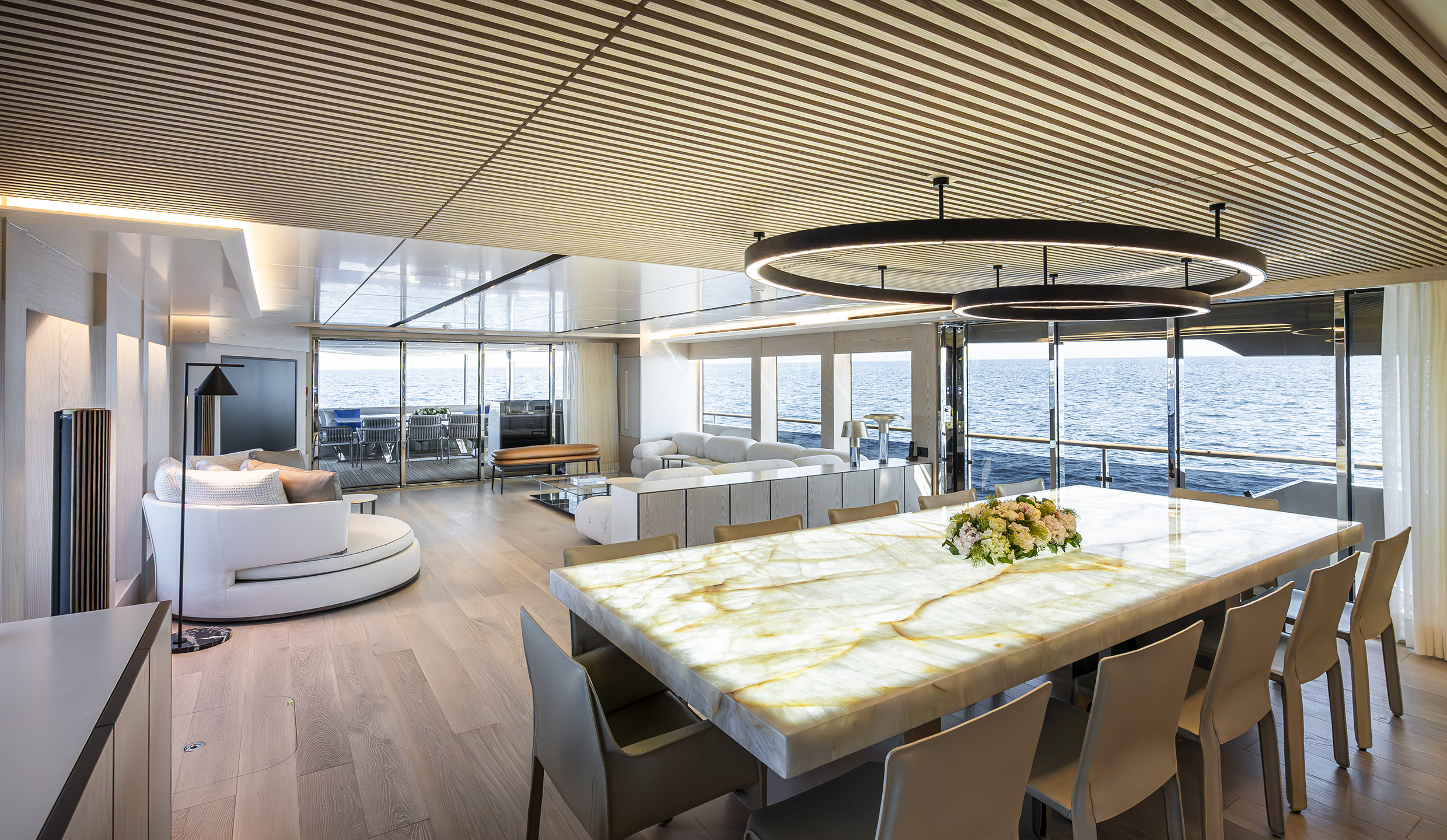

Onboard, accommodation is designed for comfort and elegance, with space for up to 12 guests across six beautifully appointed cabins. The full-beam master suite on the main deck serves as a floating penthouse, while the expansive, light-filled main saloon provides unrivaled volume and a setting tailored to each owner’s lifestyle.

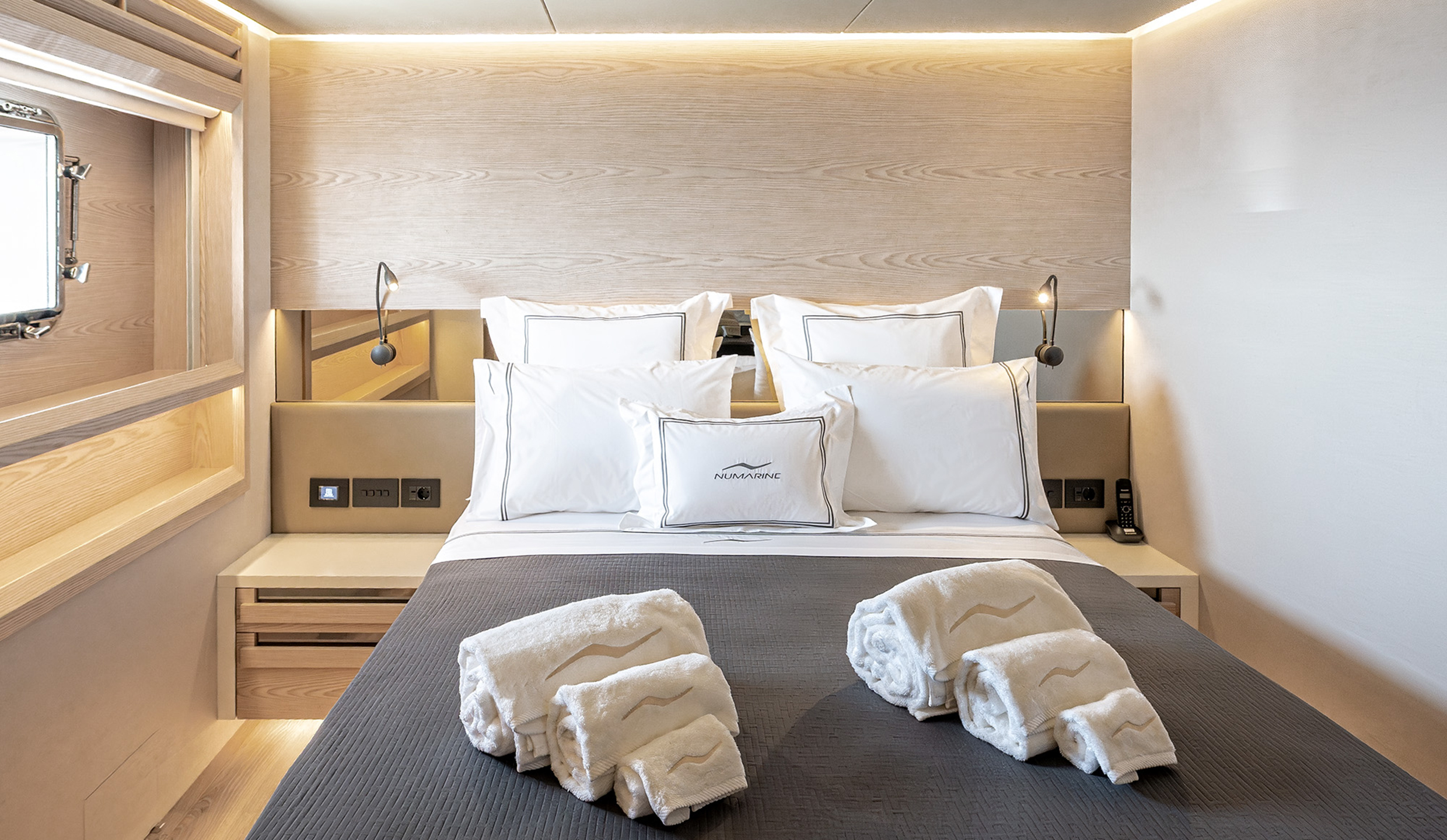

Owners may also opt for a skylounge, transforming the upper deck into an elevated indoor sanctuary—perfect for gatherings, media viewing, or simply admiring the endless horizon. Below, generously sized, customizable ensuites ensure every guest enjoys refined comfort throughout the journey.

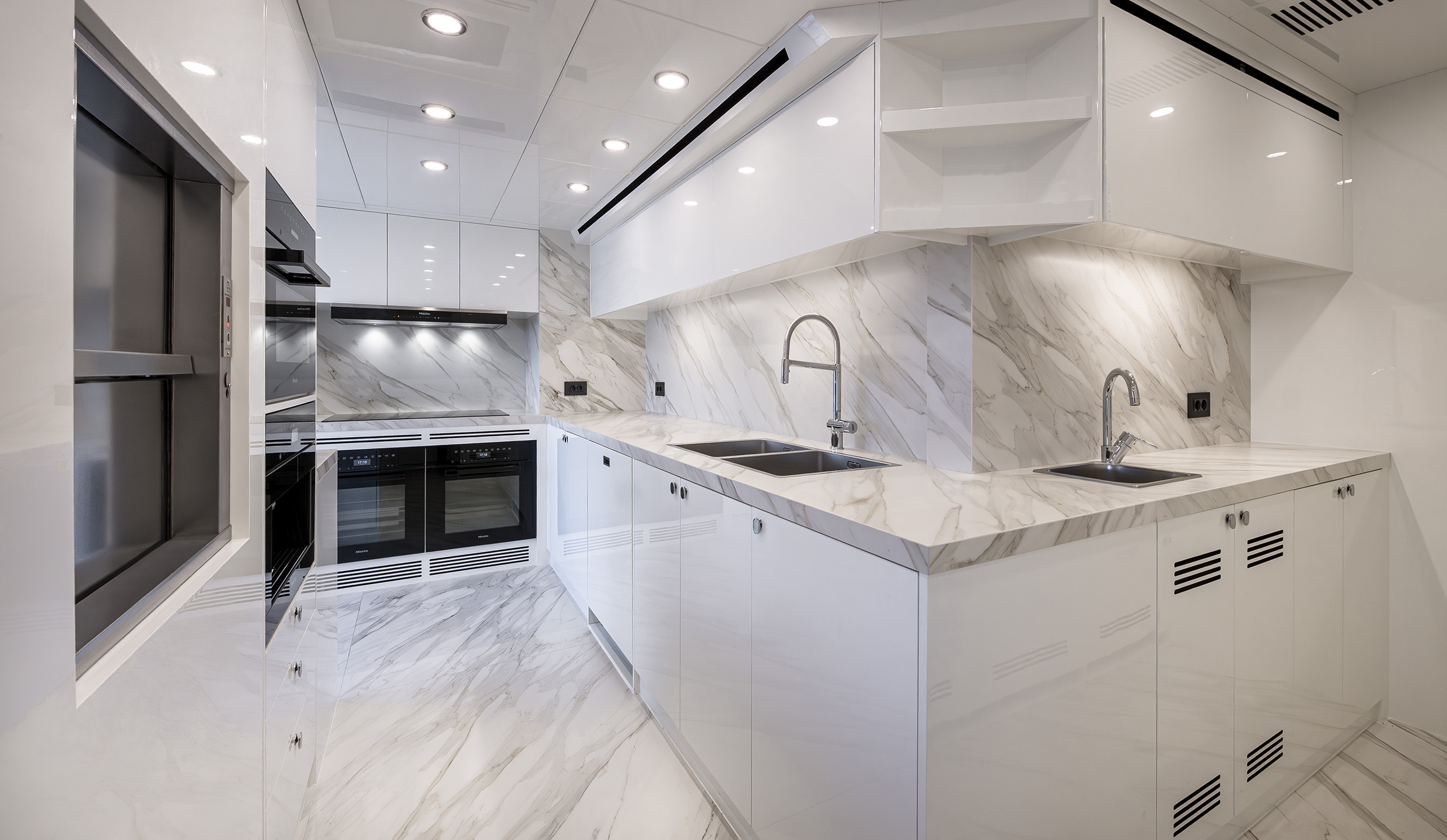

The galley, seamlessly integrated yet discreetly positioned, is equipped with top-tier appliances and ample workspace, delivering effortless gourmet experiences at sea.
The Numarine 40MXP is more than a yacht—it is a new definition of exploration, freedom, and Mediterranean living.
Specification
Electric Fin Stabilization
Generators: 3 x 70 Auto Sync
Full air conditioning / heating with central chiller system and fresh-air make up with individual controlled fan coil for each cabin. 480.000 BTU
2*230I/h water maker
Electric bow (90kW) and stern thruster (45kW)

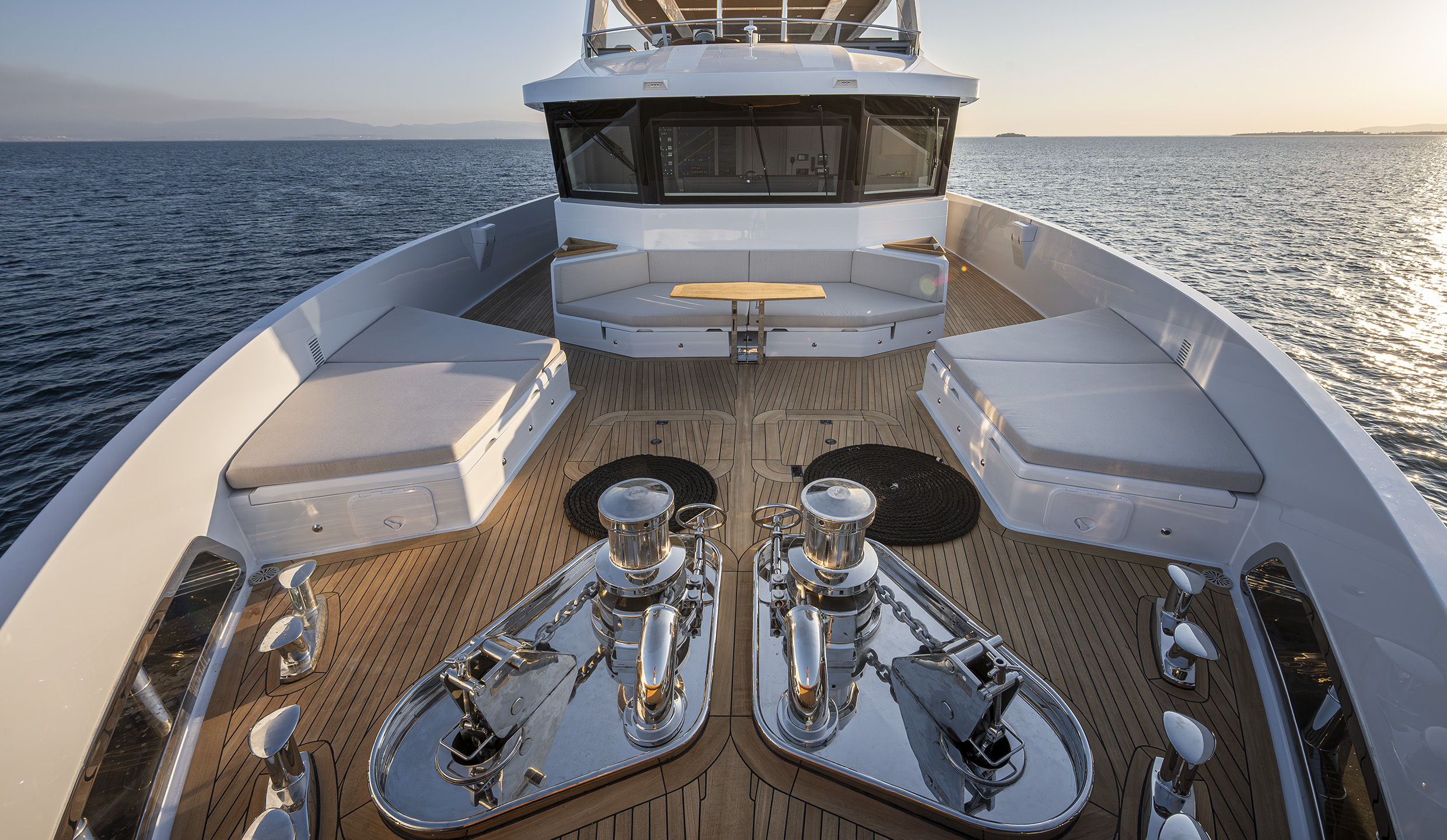

Electric twin anchor windlass (18mm chain 140+ 190m) and twin stern capstan winches
24V DC service battery+220V AC electrical system
380V 125A *2 shore supply
Hot and cold swimming shower at stern

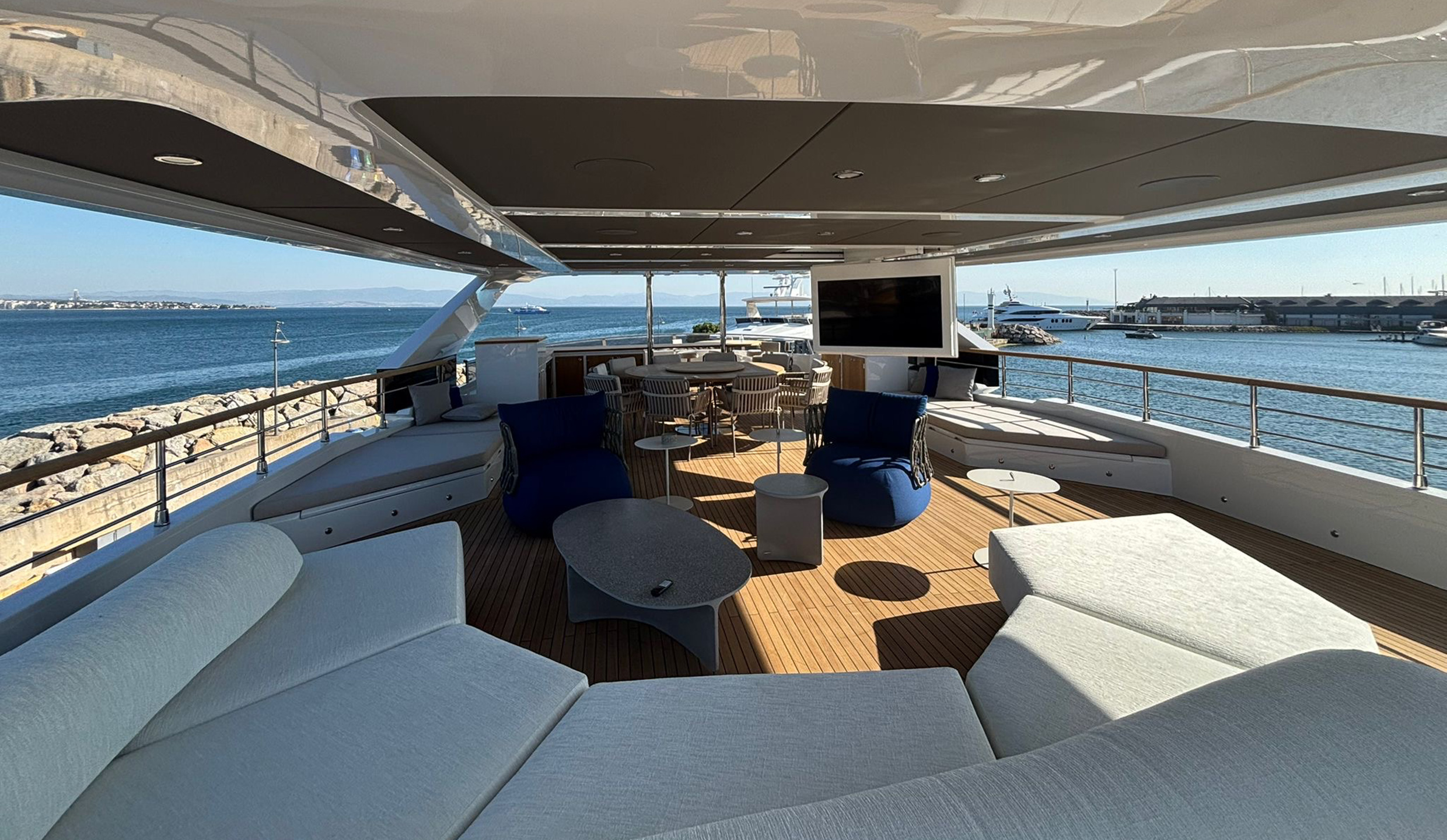

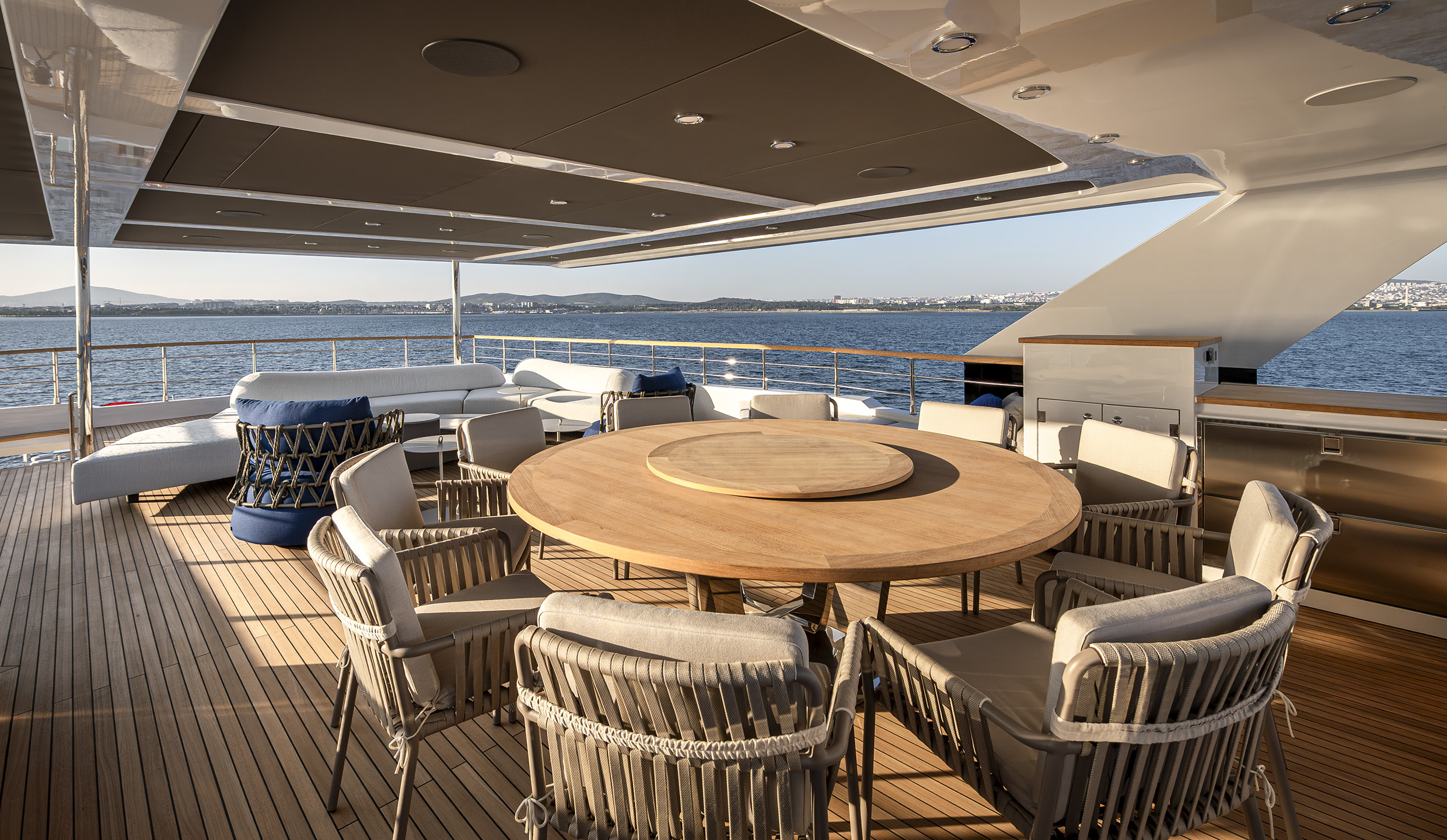

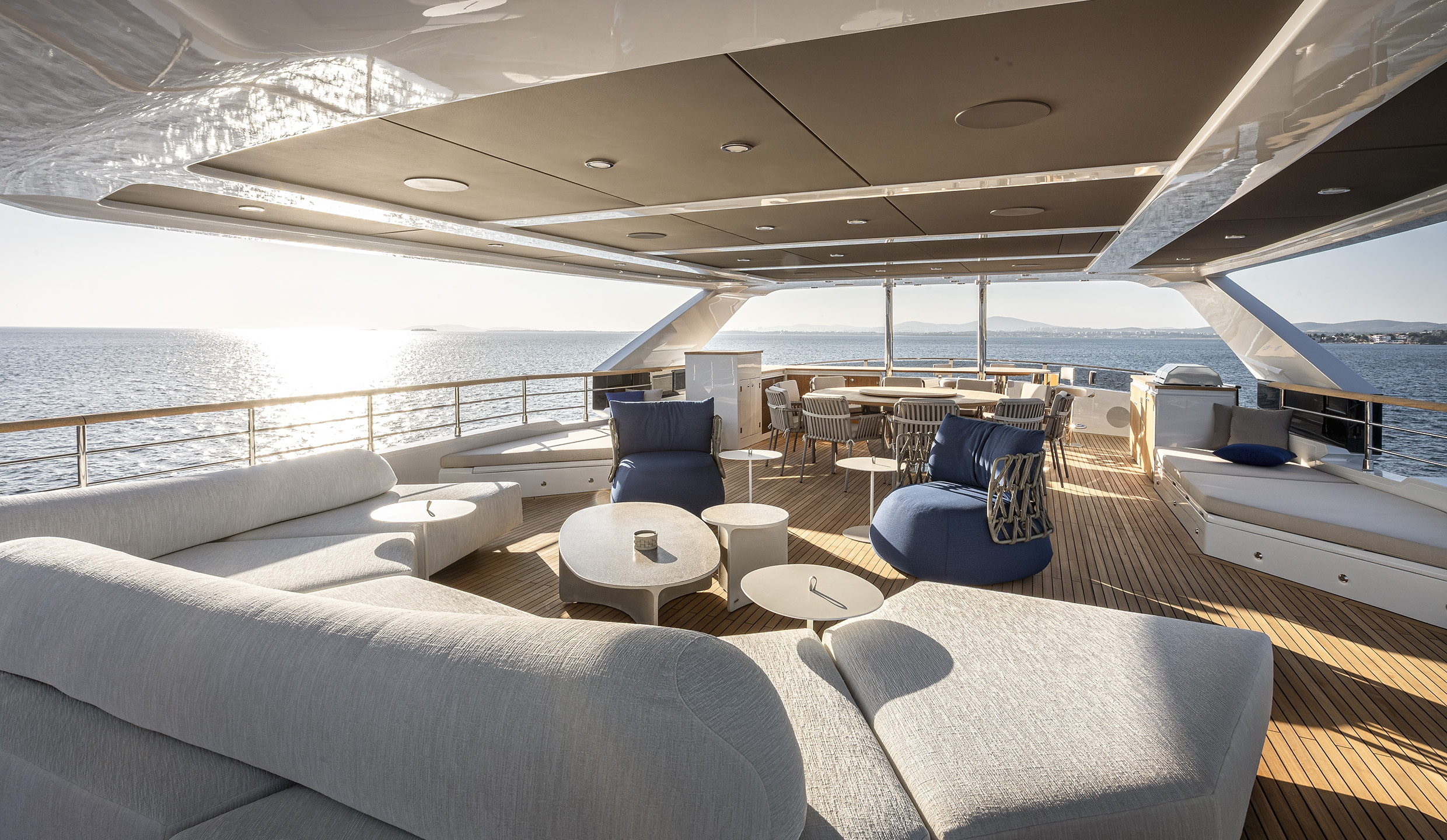

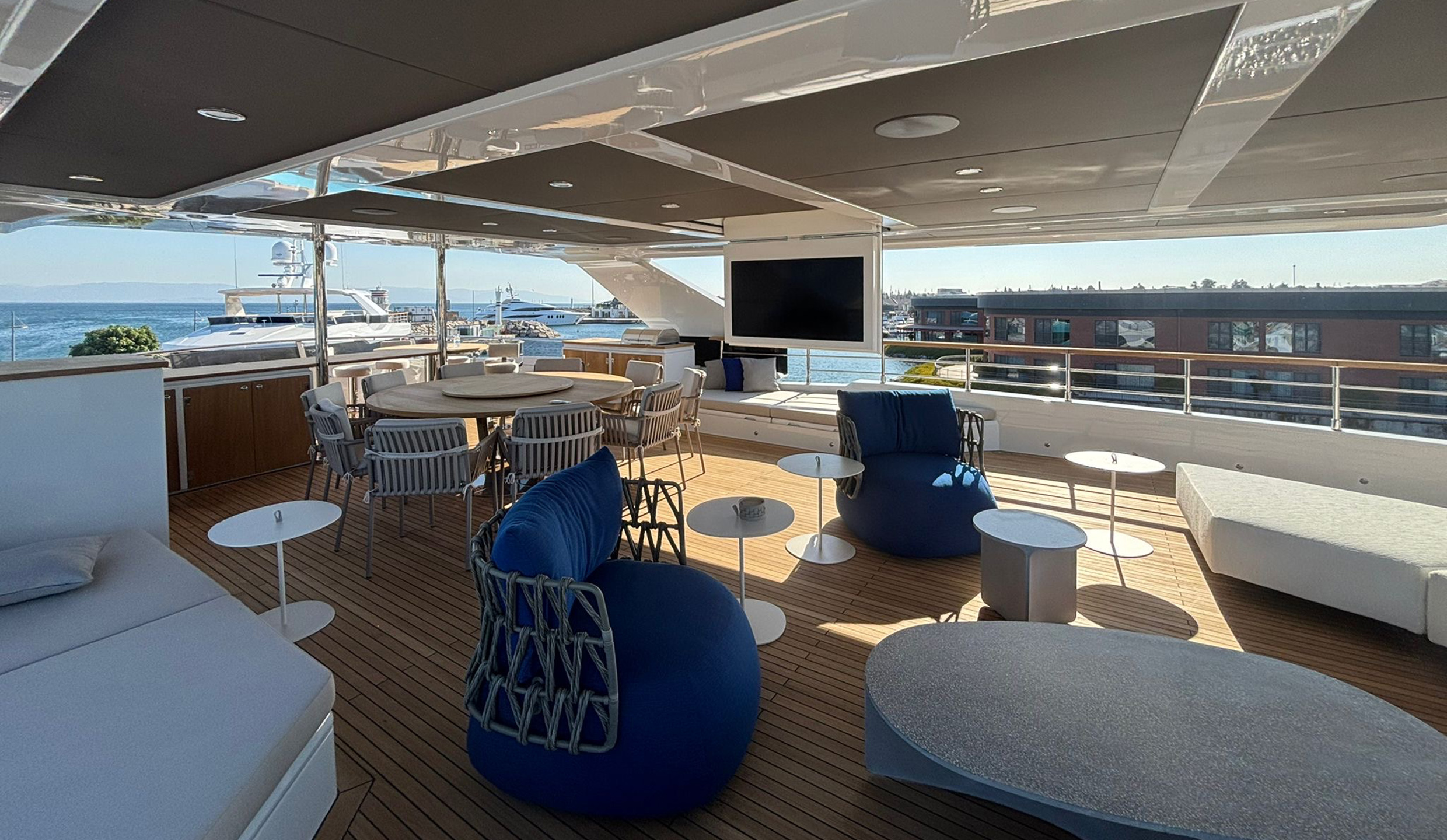

Flybridge wetbar with sink, hot and cold water, electric barbeque, icemaker and refrigerator
Flatscreen televisions in all guest cabins, captain’s cabin and crew mess, all with SAT connection
TV (Saloon 75″) Owner’s Cabin 65″ and Master Cabin 65″
Satellite TV system (85cm Dish)
Raymarine electronic depth and speed displays, autopilot, VHF with AIS, 2 radars and plotter (2*16″ + 3*22″)
Automatic fire extinguishing system for engine room
Automatic bilge pumps
380V AC shore power (automatic reclaim) and battery chargers
Remote controlled search light
Teak laid bathing platform and steps, side decks and foredeck, flybridge stairway, flybridge and cockpit floor
Flybridge sunbed and cushions
3.000 Kg Capacity Tender Crane
Fully fitted crew cabin
Antifouling
6 x under water lights
Fuel polishing system
4*Iife rafts SOLAS B10 man
6*cameras with monitor in the wheelhouse and crew mess
GMDSS
Navtex NX300 or equivalent
Twin pump hot and cold water pressurized system with shore connection
The yacht is built with RINA C +
Hull*Mach, Y Unrestricted Navigation Yacht Monitoring System
Optional Extras
MAN D2868 LE428 800 bhp ®2100 rpm – IMO T-III (SCR) – € 198.000
MAN D2862 LE 427 900 bhp @1800 rpm – IMO T-III (SCR) – € 467.000
Extended Carbon Hard Top – € 162.750
Remote Opening Soft Top – € 57.750
Upper Deck: Saloon instead of Cabin – € 48.300
Side Boarding Ladder – € 154.500
Hydraulic Platform – € 142.000
Opacmare Transformer – € 142.000
