PRINCESS

ENGINES & DRIVE
– Twin MAN V12-1900 (2 x 1900 mph)
– Wing station (Third) controls in starboard side of flybridge coaming (engine controls, emergency engine stops and thruster controls)
Note: This is located on the starboard side, next to the helm door

HYDRAULICS
– Standard system comprises of separate engine driven hydraulic pumps allowing any system to be supplied with hydraulic power from either engine. combining the bow thruster 340kgF (with proportional speed control) and windlass system.
– Hydraulic Stern thruster (variable speed 320 KgF)

STABILISATION
Sleipner Vector Fin stabilisation system with VF1350 fins. When underway fins are driven by engine powered hydraulic motors or by a generator powered electric motor when the main engines are turned off


HULL COLOR
– Upper Deck Sky lounge canopy/hardtop and canopy coaming in white GRP and ribbon/support legs and wrap around on forward canopy finished in Oyster Grey metallic. Deckhouse buttresses painted in Onyx black gloss. – Exterior/cockpit furniture finished in Oyster grey metallic with Bronze metallic accents where appropriate.
“White Gel Coat Finish(with dark grey water line, black antifouling. Hull & bathing platform fendering is white with stainless steel insert)”
– Graphite grey hardtop wrap around and ribbon/support legs to remain finished in Oyster Grey metallic as per standard (radar mast and navigation equipment finished in dark grey)

INTERIOR FURNITURE

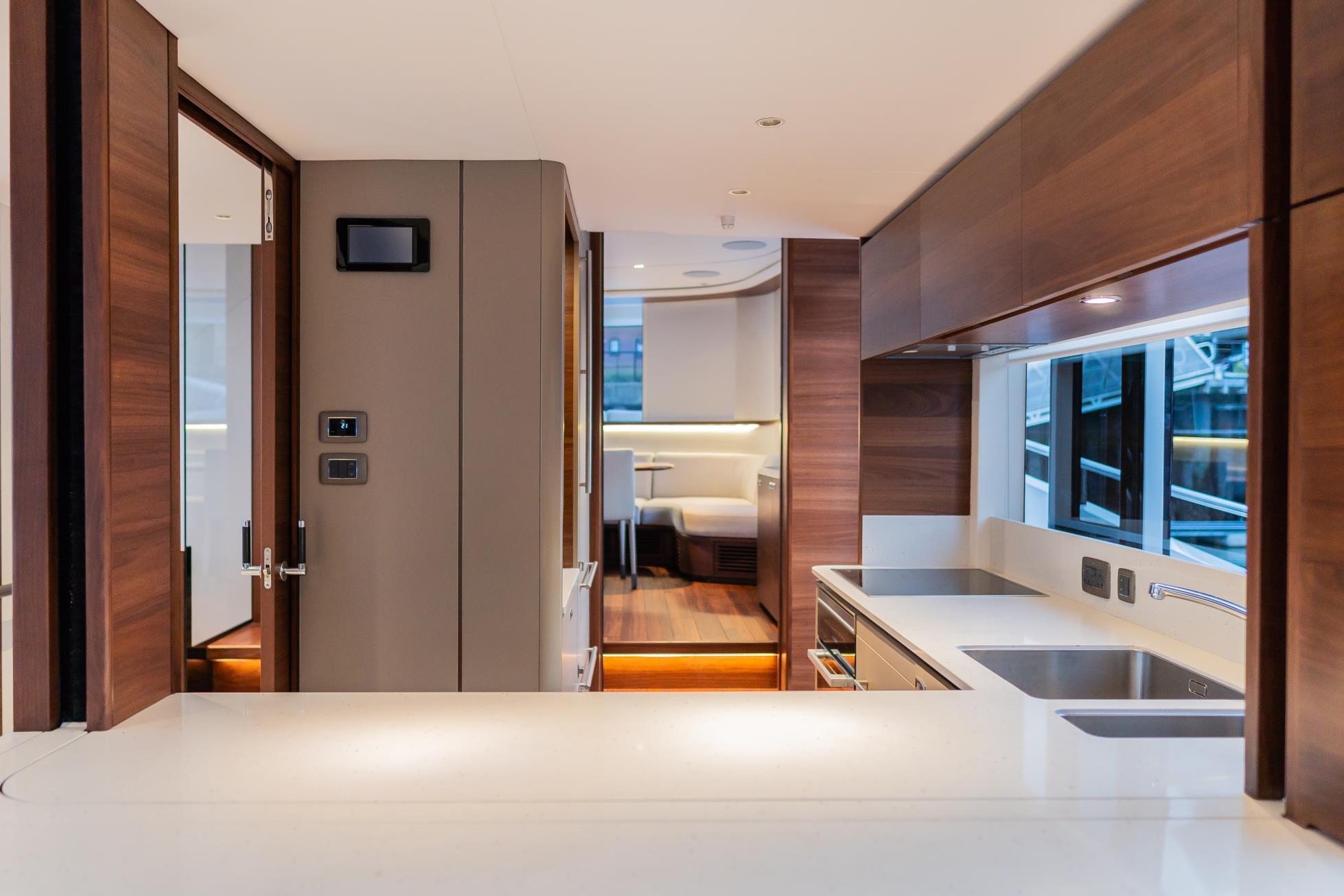

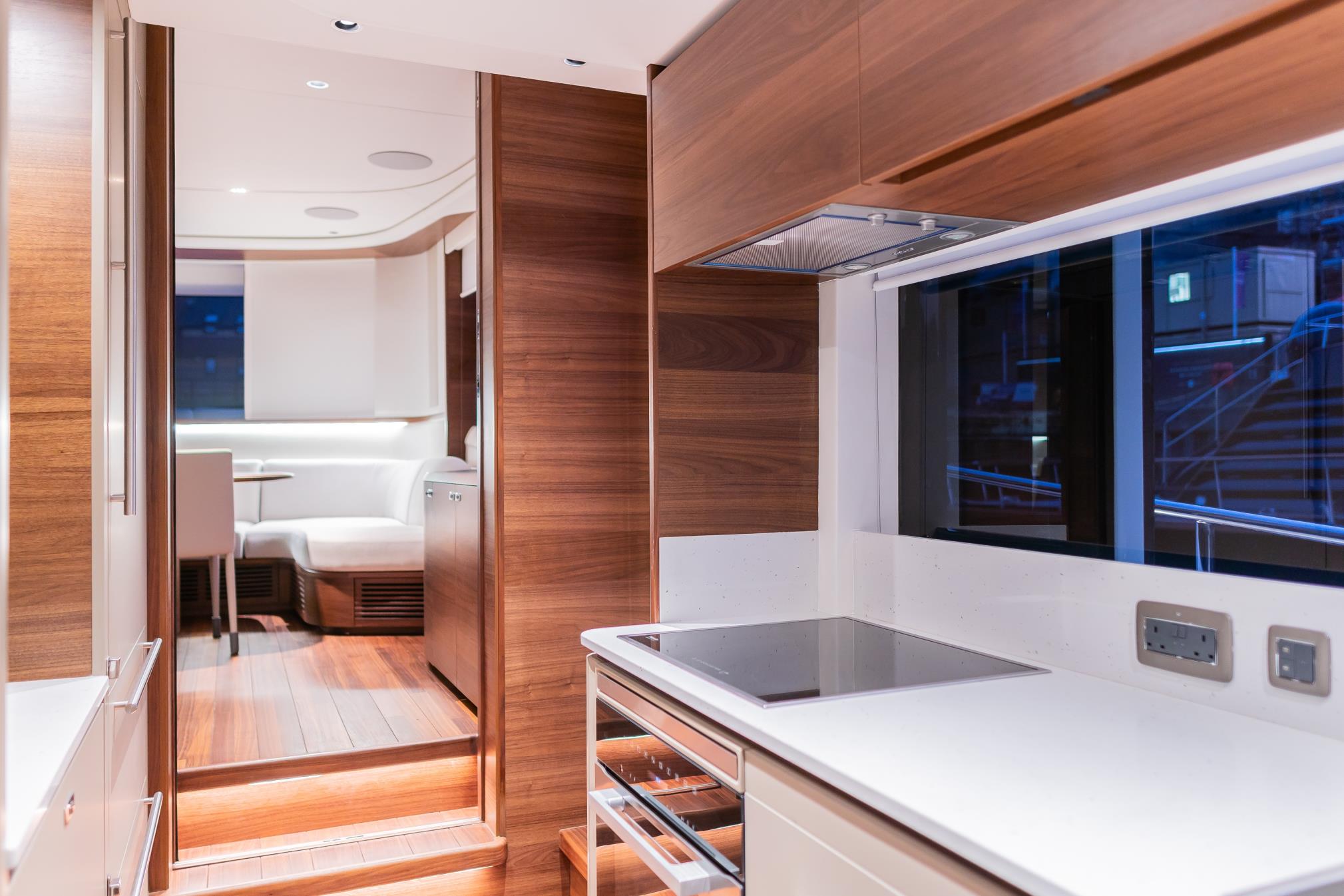

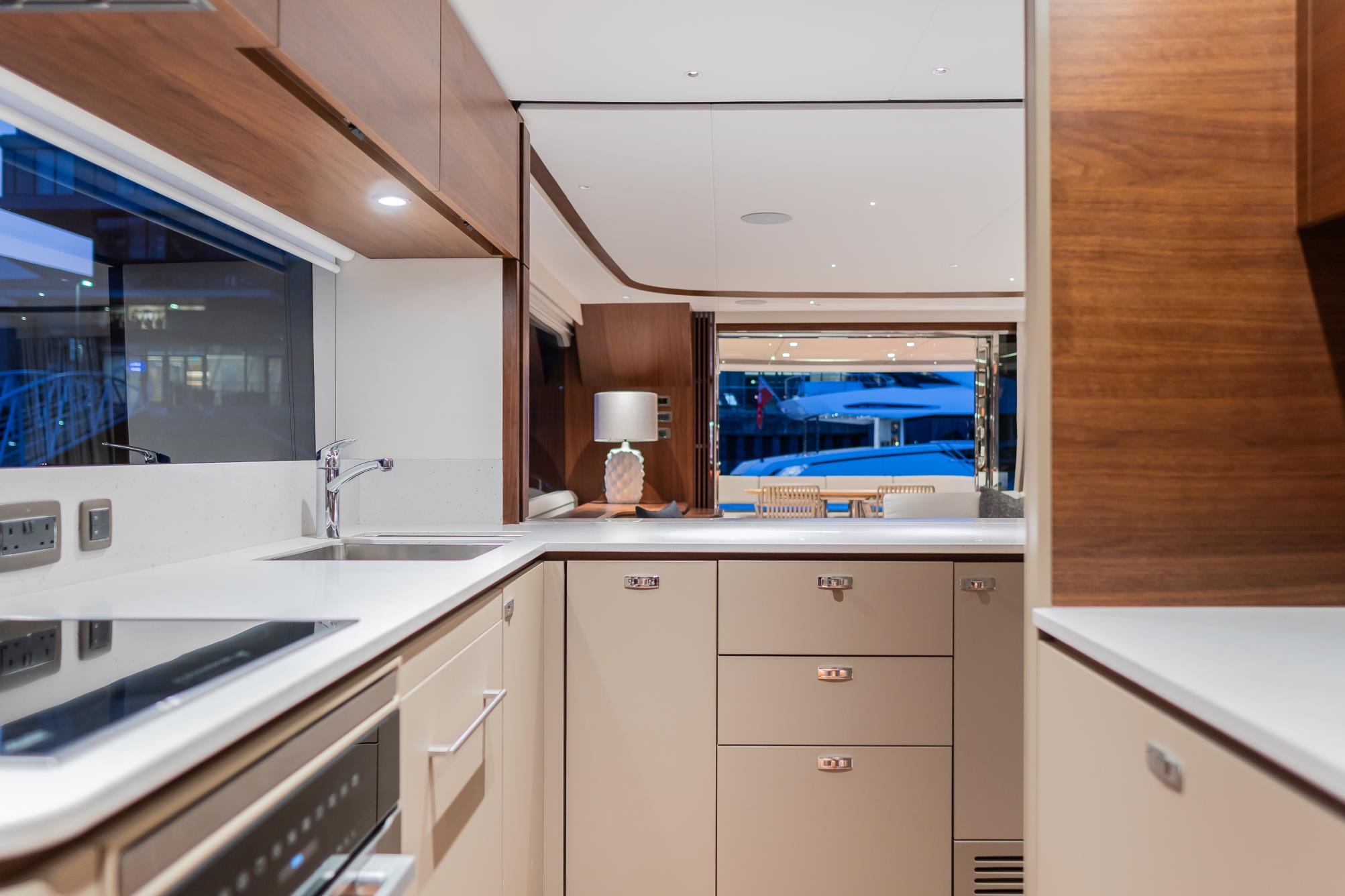

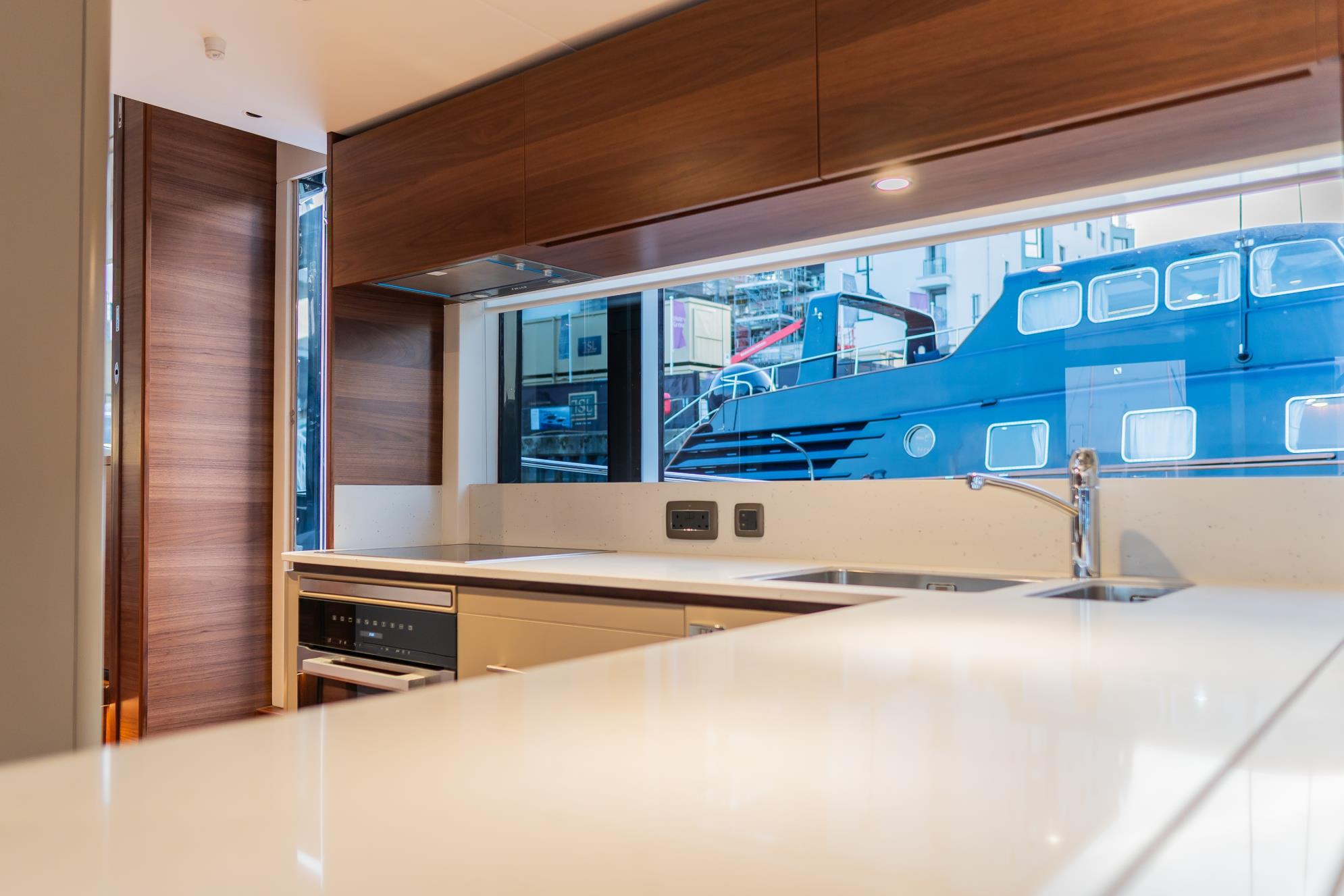

– Galley furniture inboard full height unit and front panels in True Taupe Laminate
Walnut interior wood satin finish (galley floor is V groove planked walnut as standard, Skylounge (with inlaid rug*) and wheelhouse are in V groove planked Walnut as standard)
– Forward dining area/Main Deck Master Cabin – floor in V groove planked flooring, in place of standard carpet (wood type same as galley)”

LAYOUT

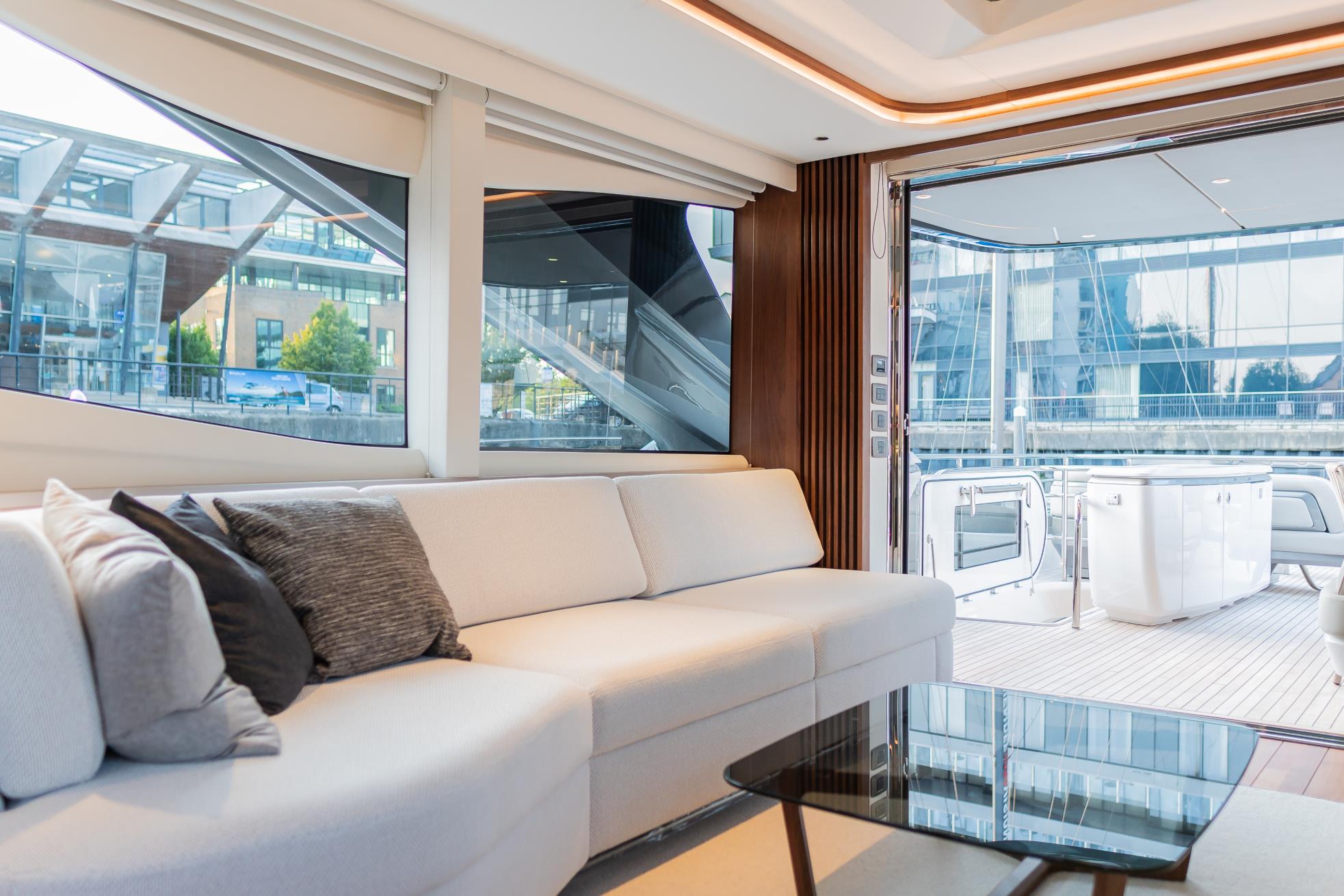

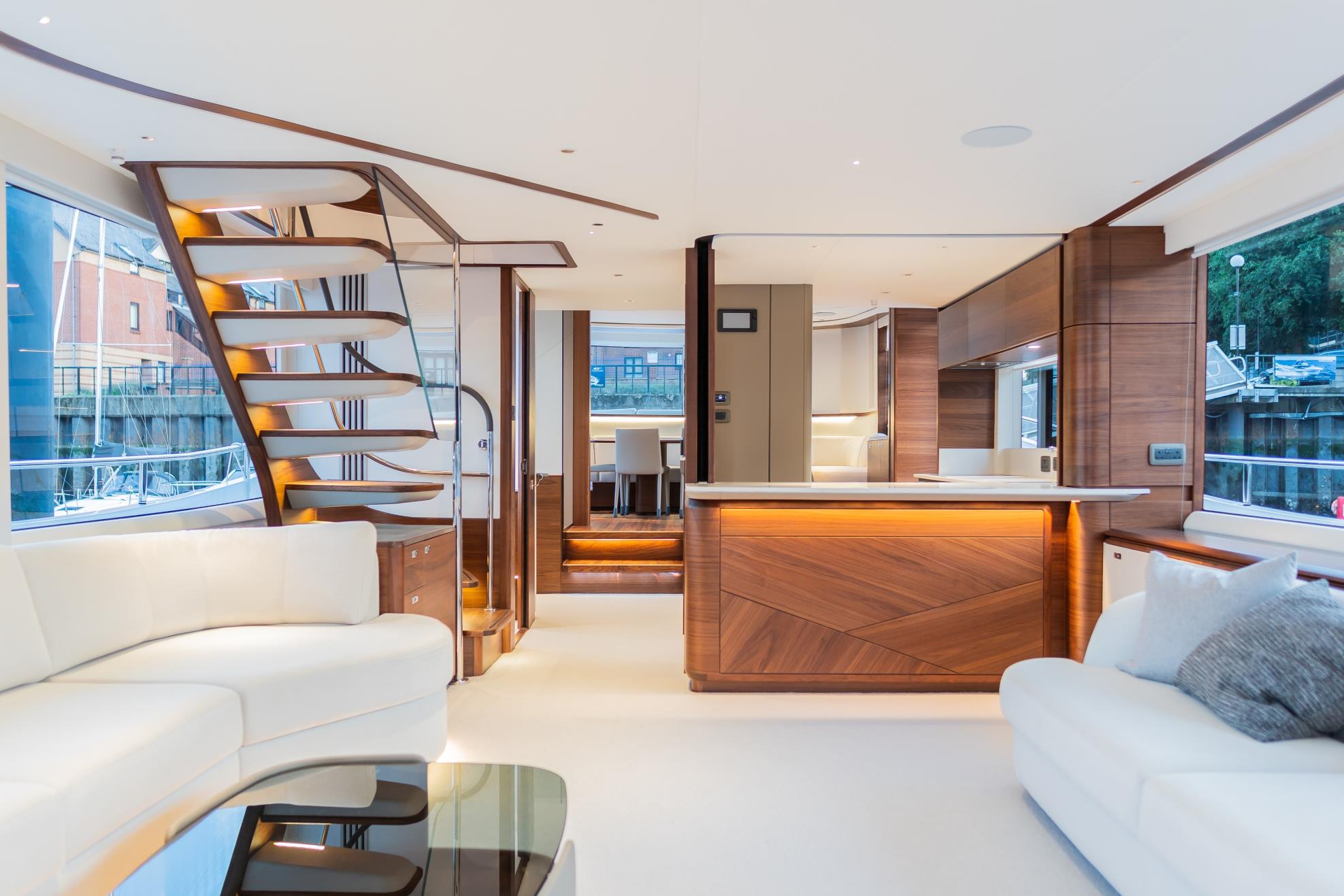

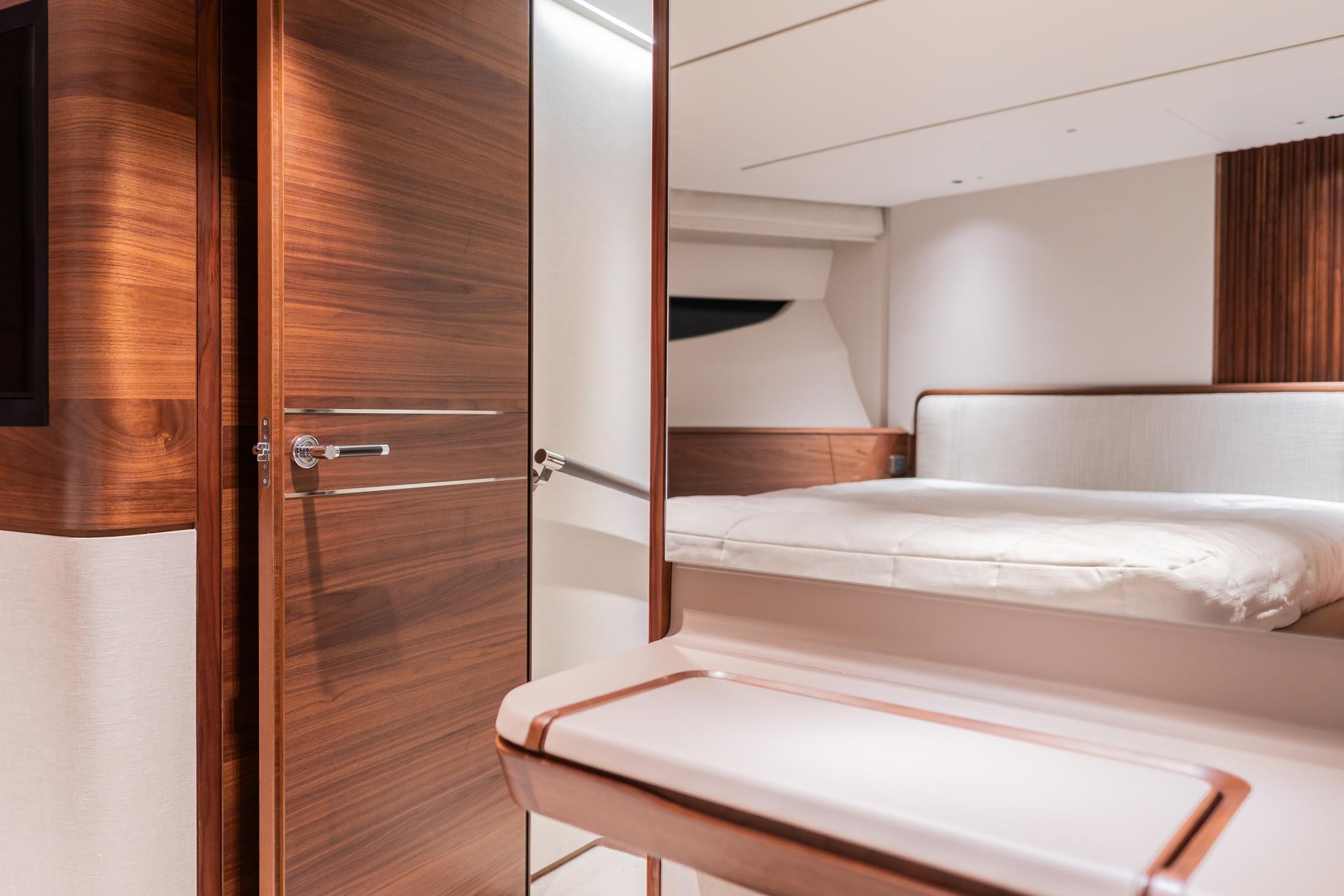

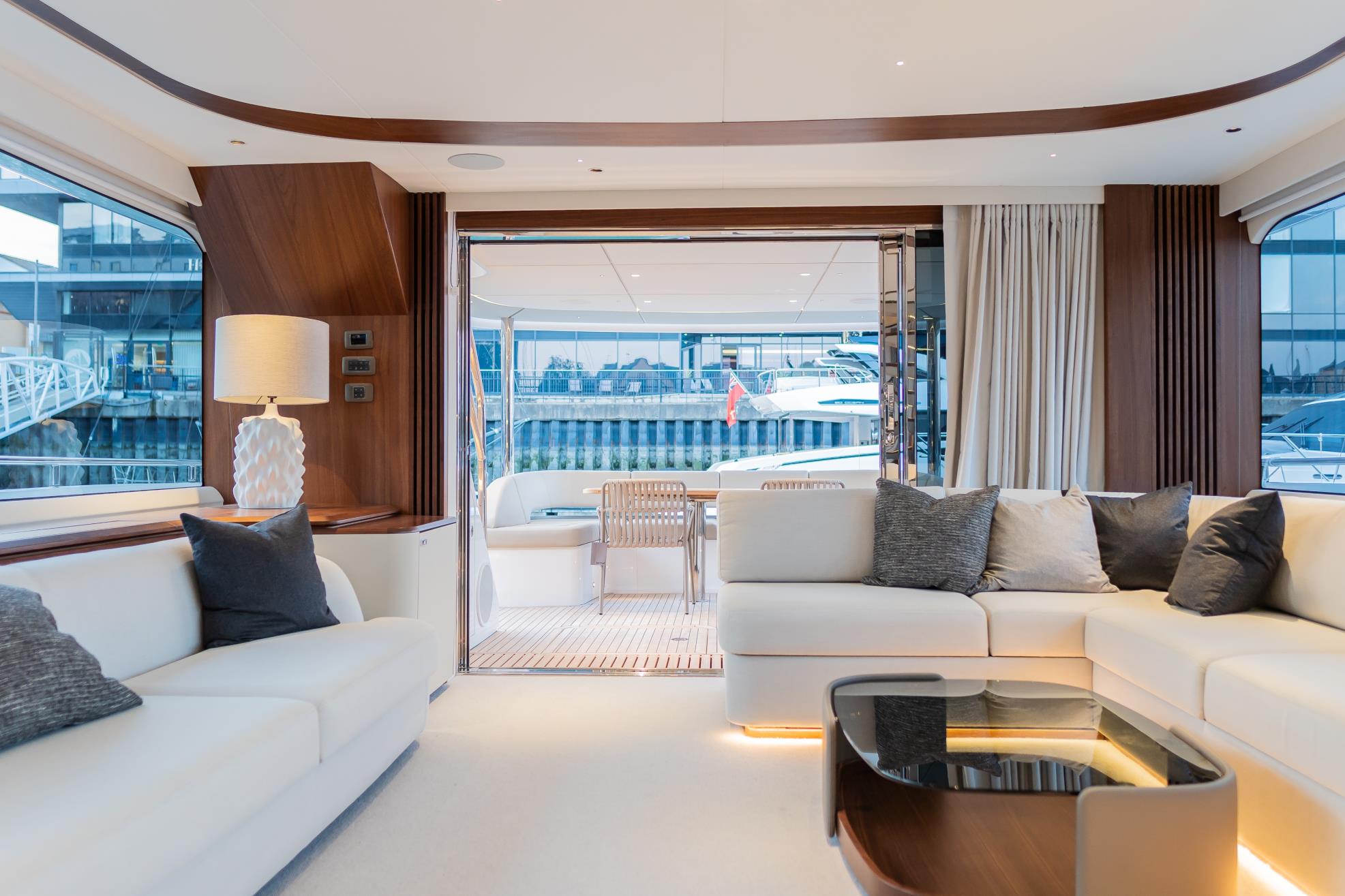

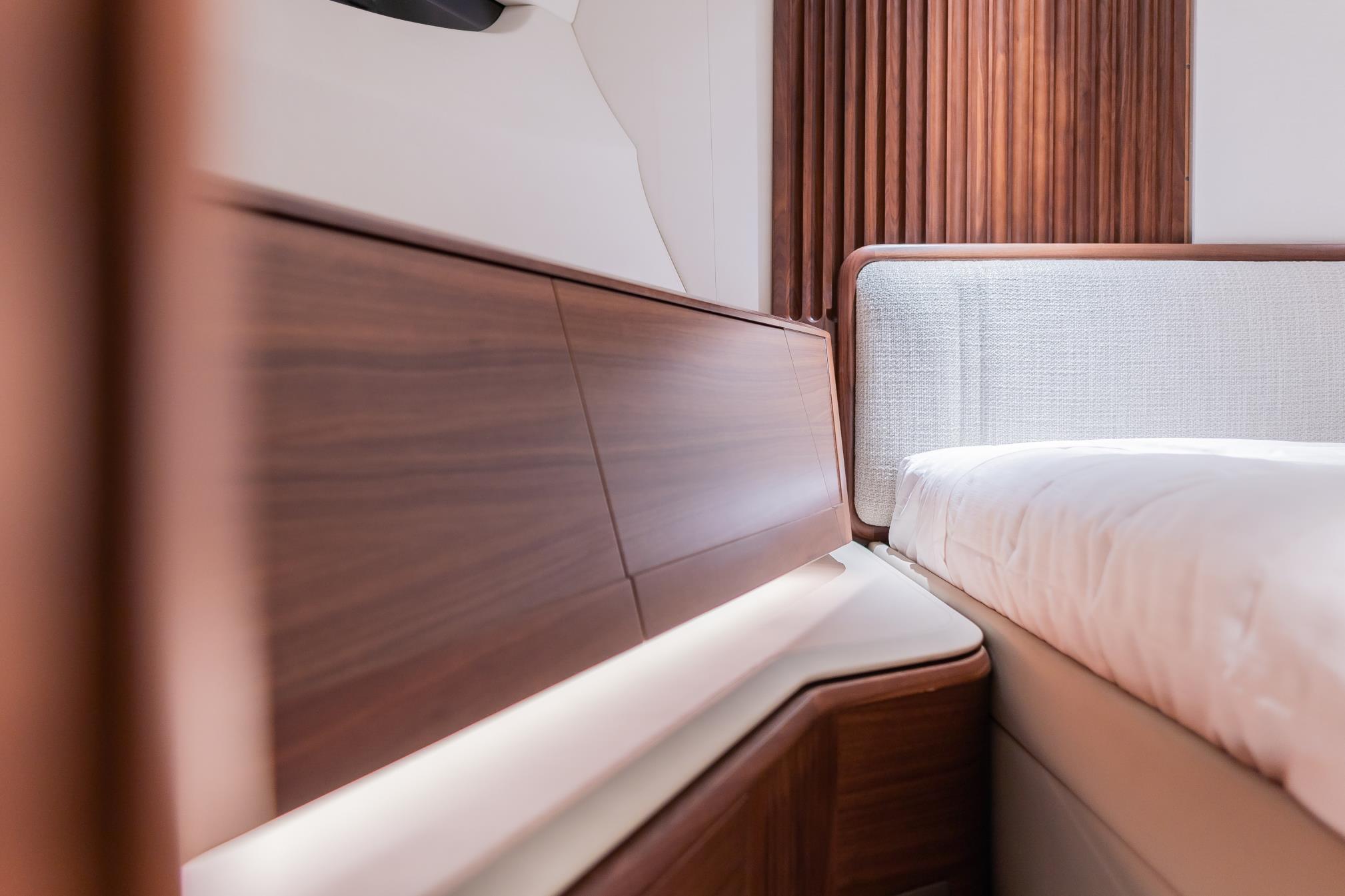

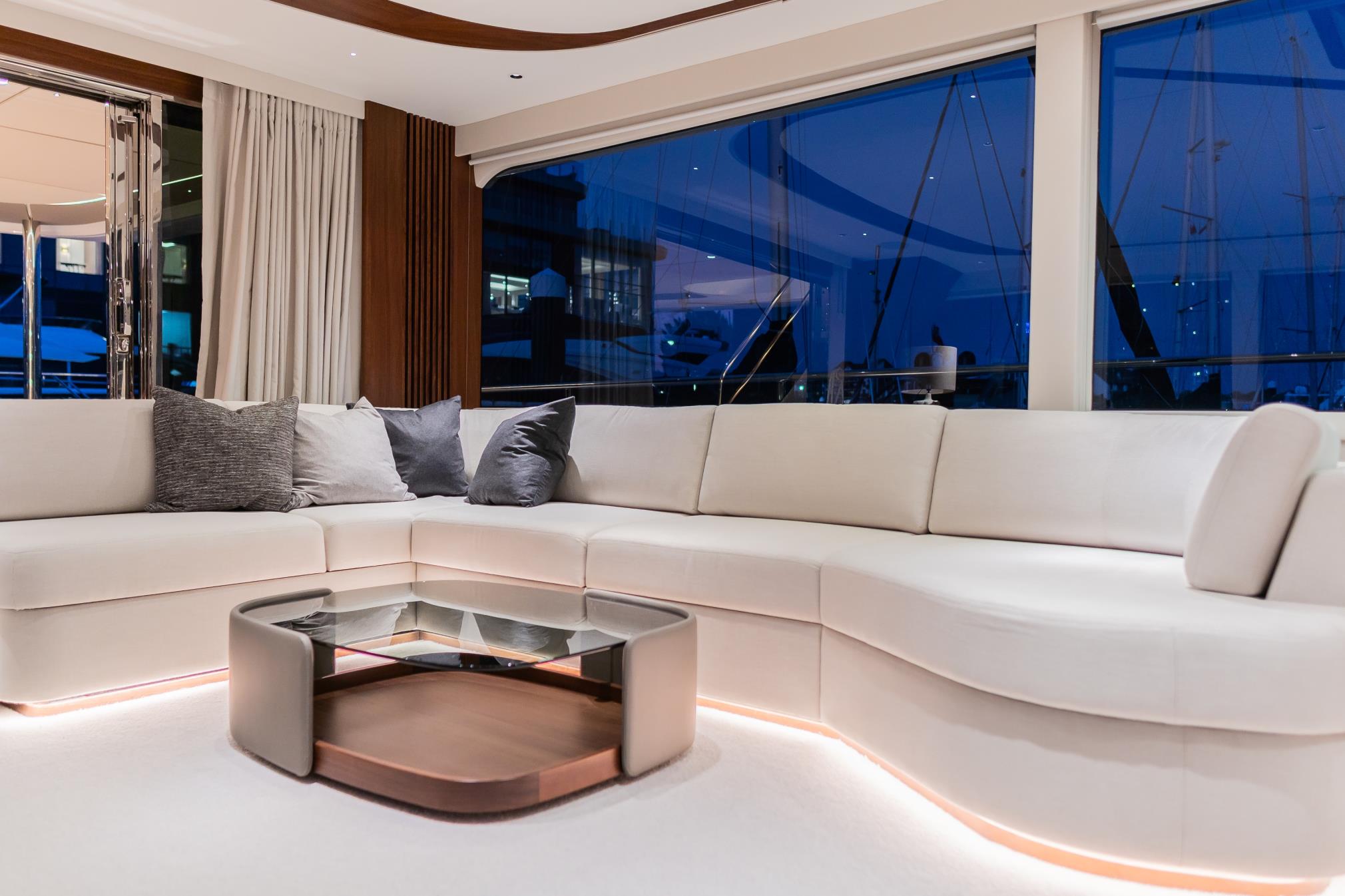

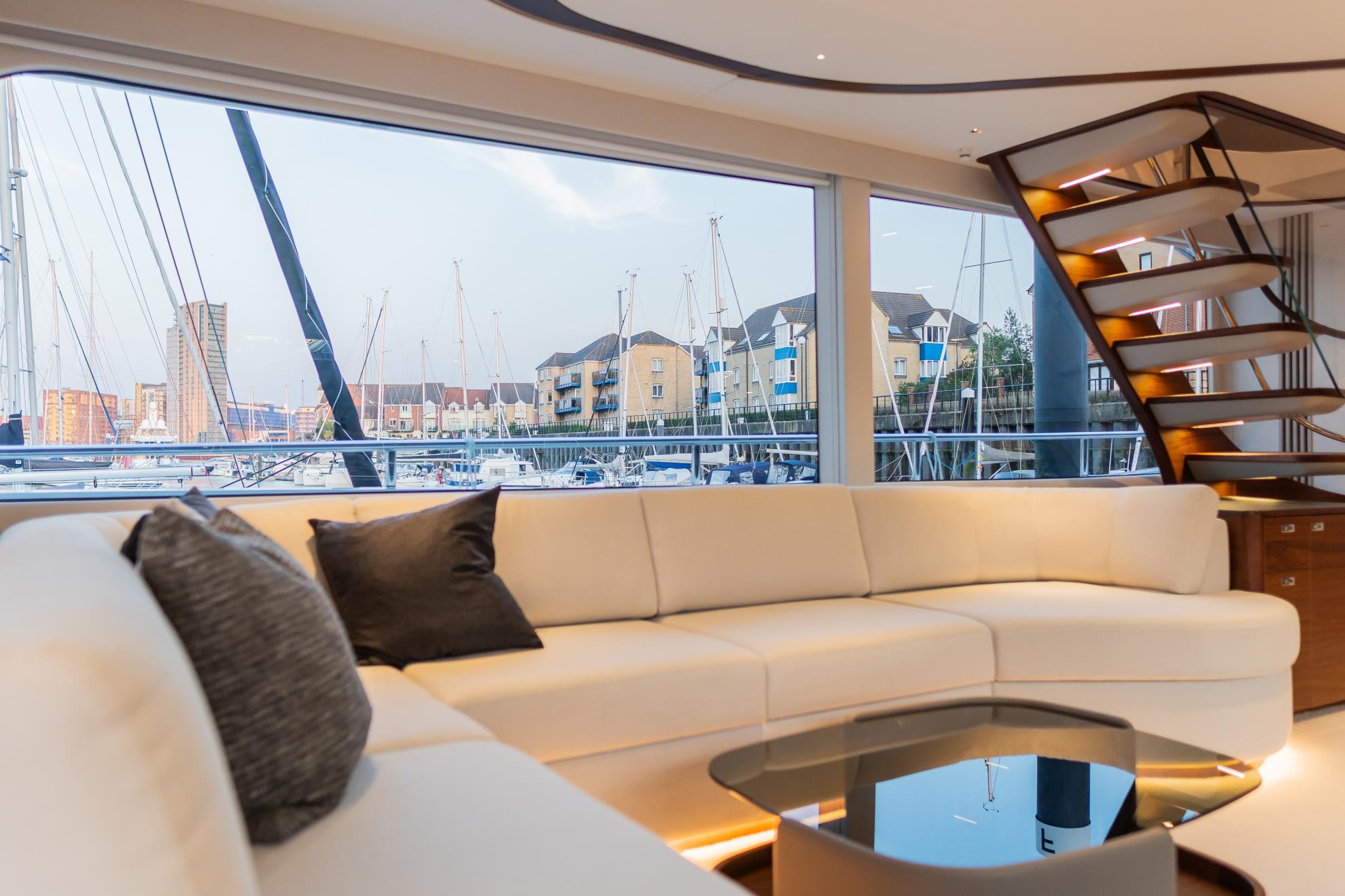

– Standard lower deck layout four (4) cabins, incorporates aft master stateroom and forward stateroom, starboard stateroom and port side twin berth cabin, all en-suite. Starboard galley with lifting screen, forward dining area with dinette sofa with 4 dining chairs. Saloon with large U-shaped sofa and coffee table to port side of saloon and sofa to starboard side. Crew accommodation in port (2 berths) and starboard (1 berth) cabins, crew bathroom (with separate shower), stacked separate washer & dryer and service corridor to access engine room Standard third deck layout is sundeck (with 2x L-shaped sofas with 2x side tables, wet bar (with sink and tap) and dining table for 8 (via 4x free standing chairs and an L-shaped dinette sofa), Skylounge (with sofa, coffee table, fridge and glass storage). Wheelhouse (with central helm, U-shaped companion seating) and foredeck sunpads.

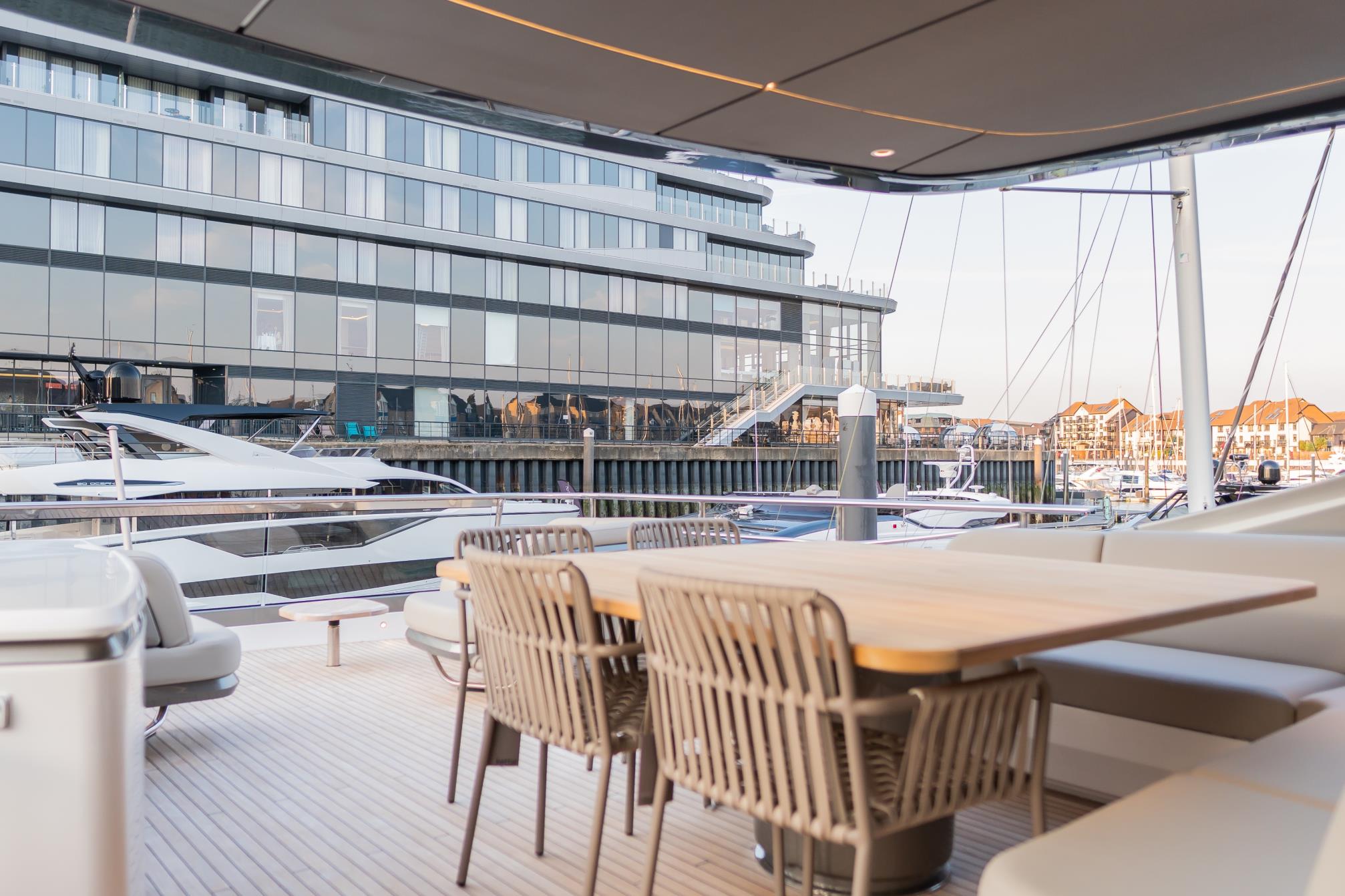

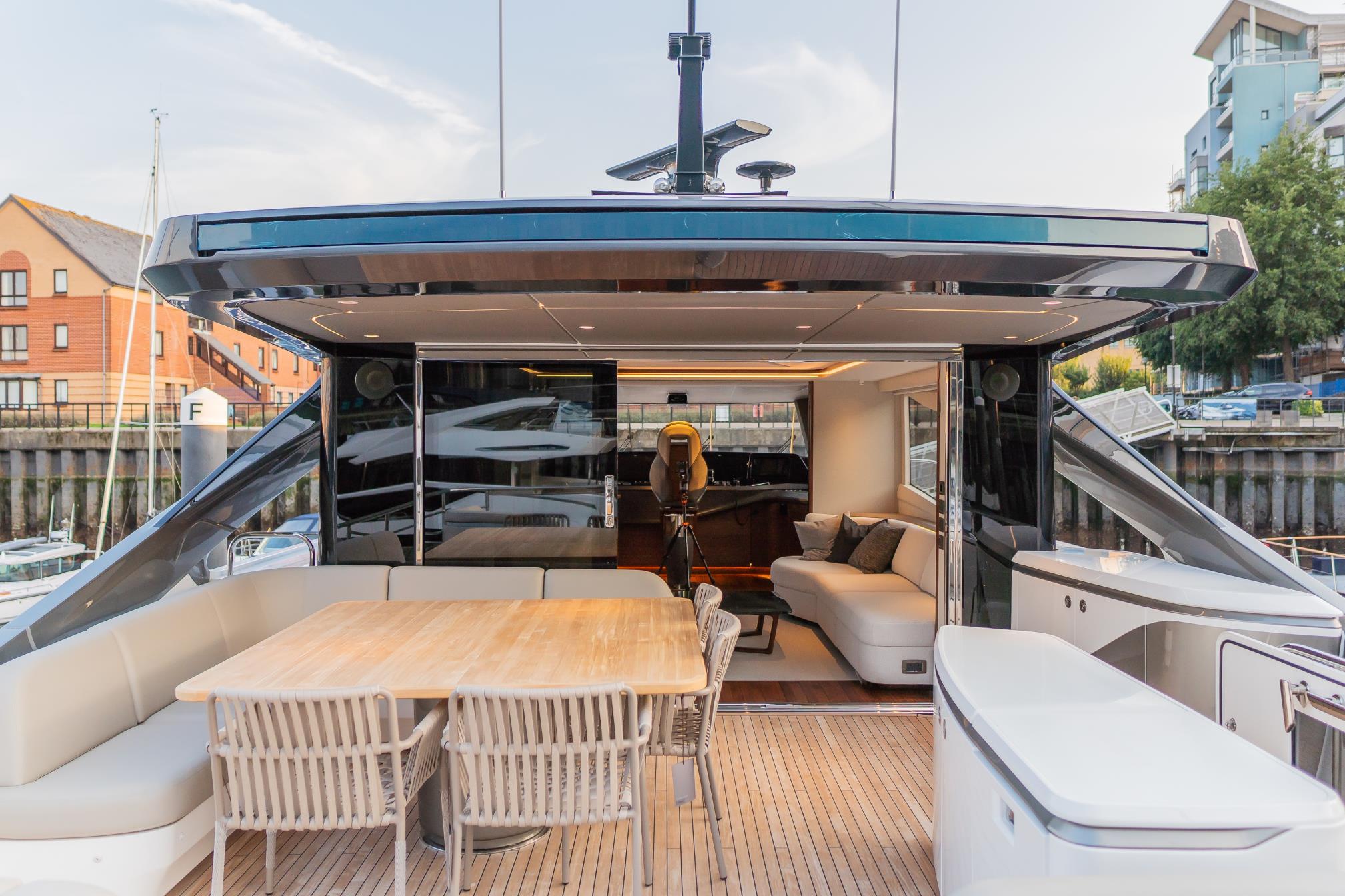

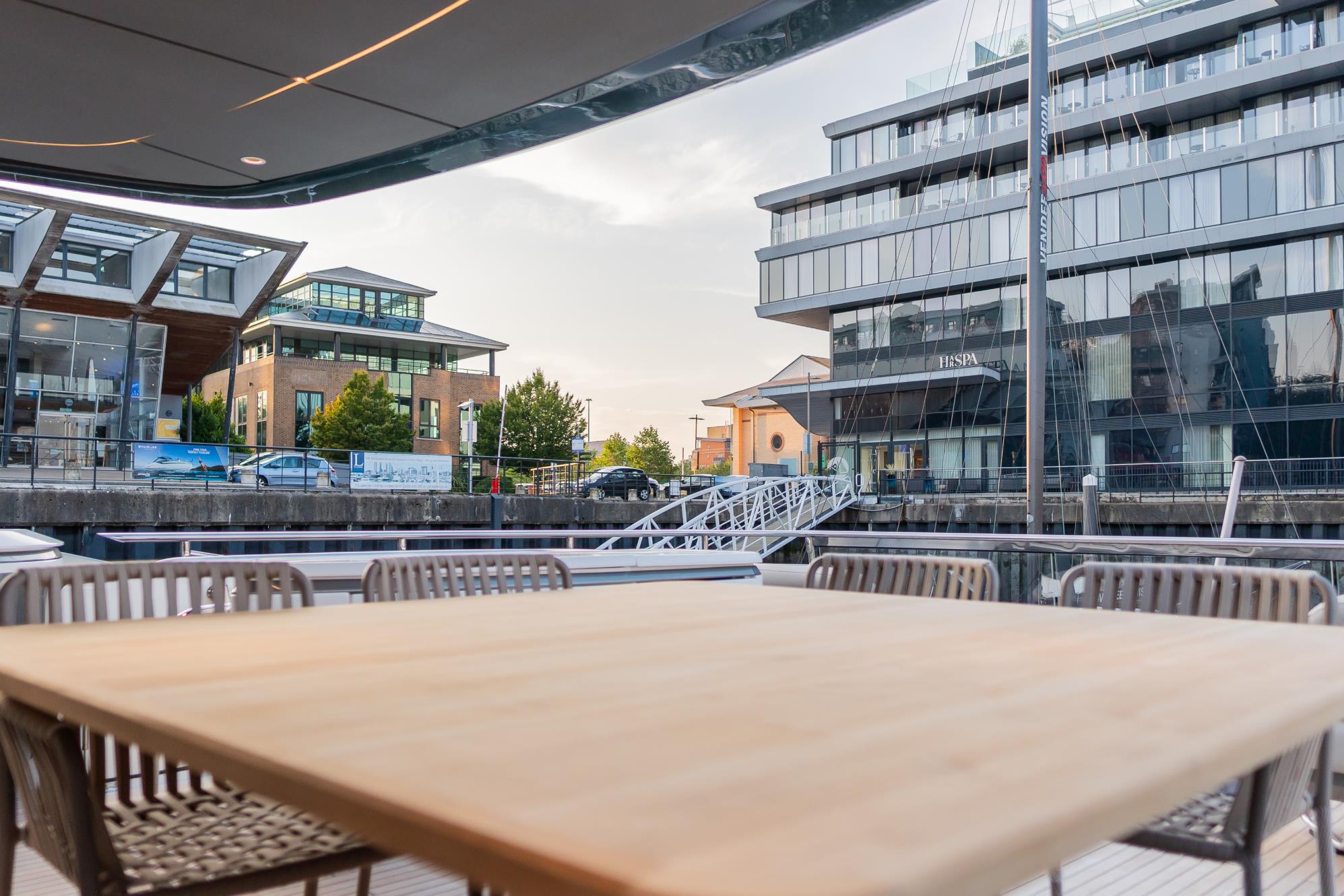

– Supply 4 x Kettal dining armchairs for flybridge

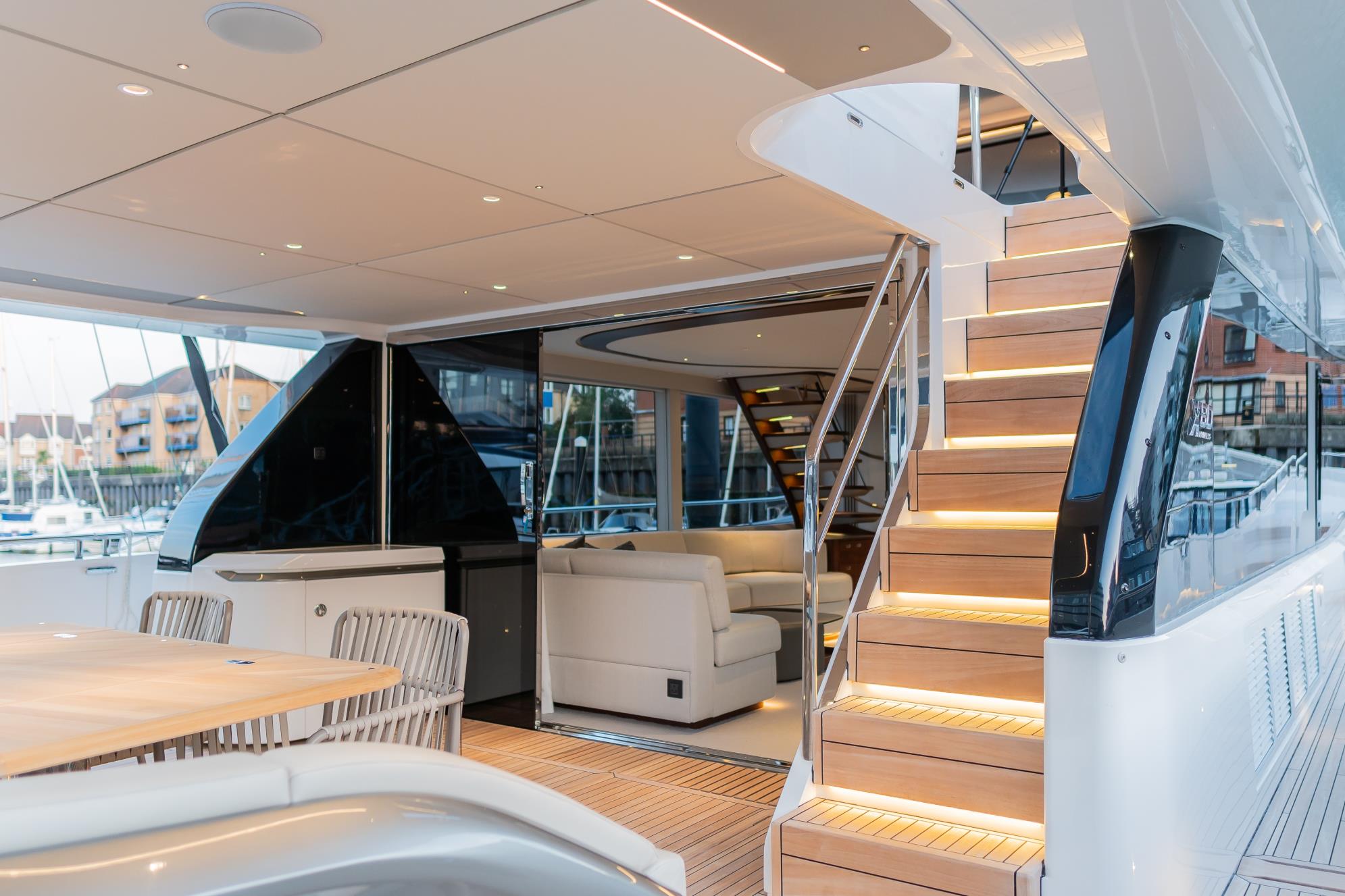

– 3 x Kettal dining chairs to cockpit

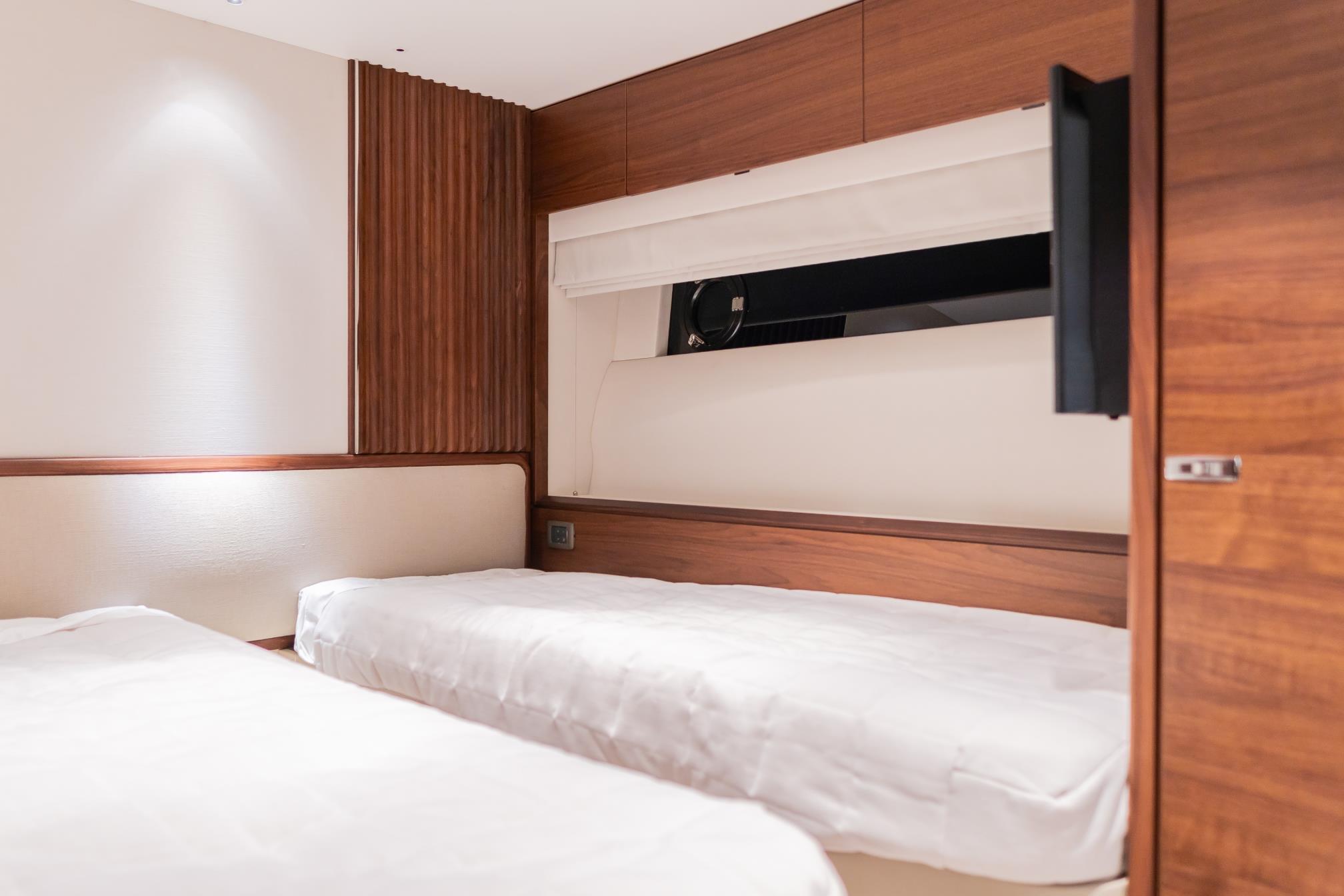

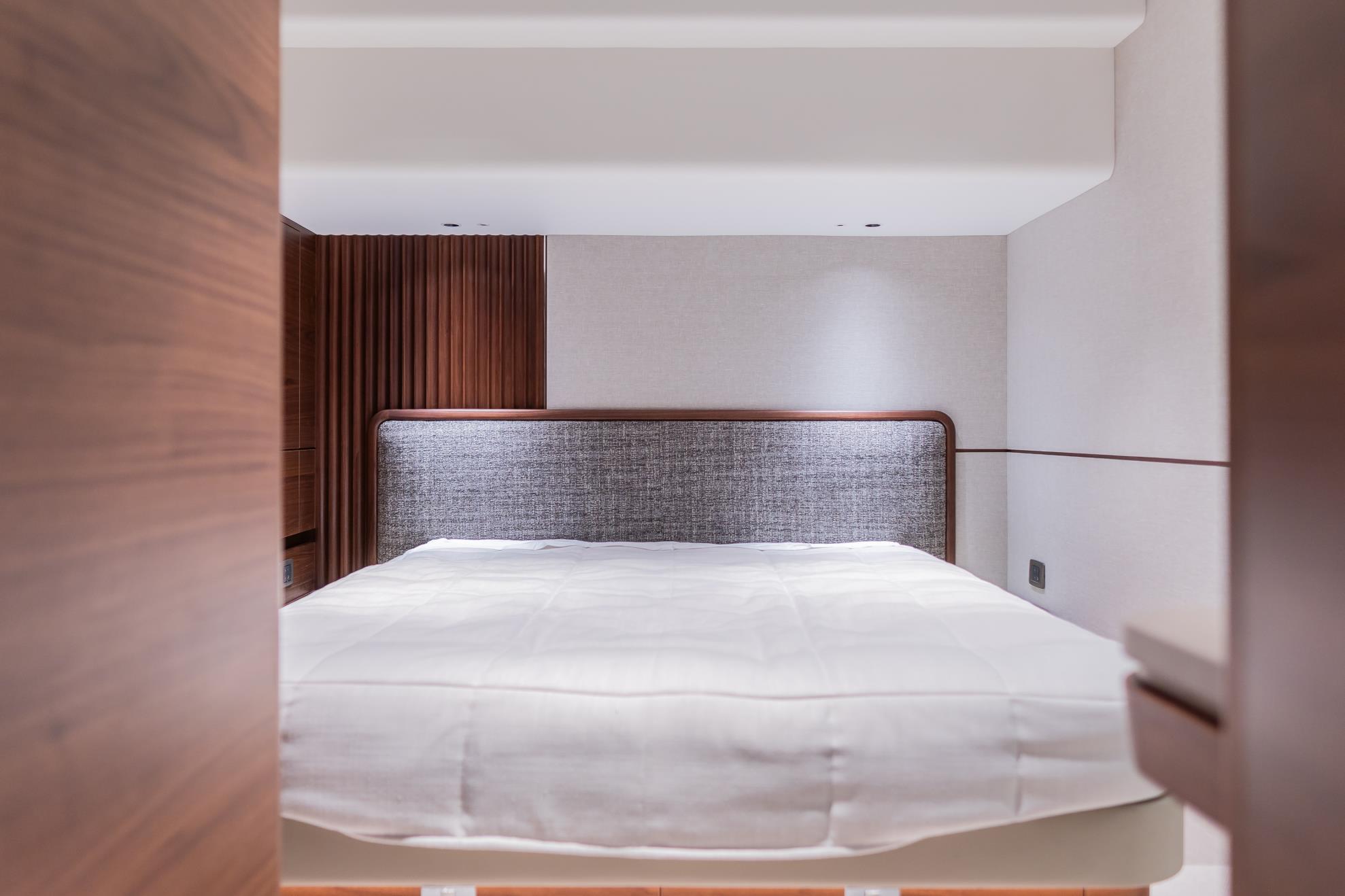

– Port cabin to have double berth conversion with powered sliding mechanism on inboard berth.
– Additional single bunk in starboard crew cabin to make two berth cabin
– Crew mess layout incorporates kitchenette, breakfast bar and 2 bar stools Starboard cabin is unaltered from standard.Kitchenette is equipped with 2-zone hob, convection microwave oven, 117l fridge/17l freezer and mixer tap/sink.



BATHROOMS

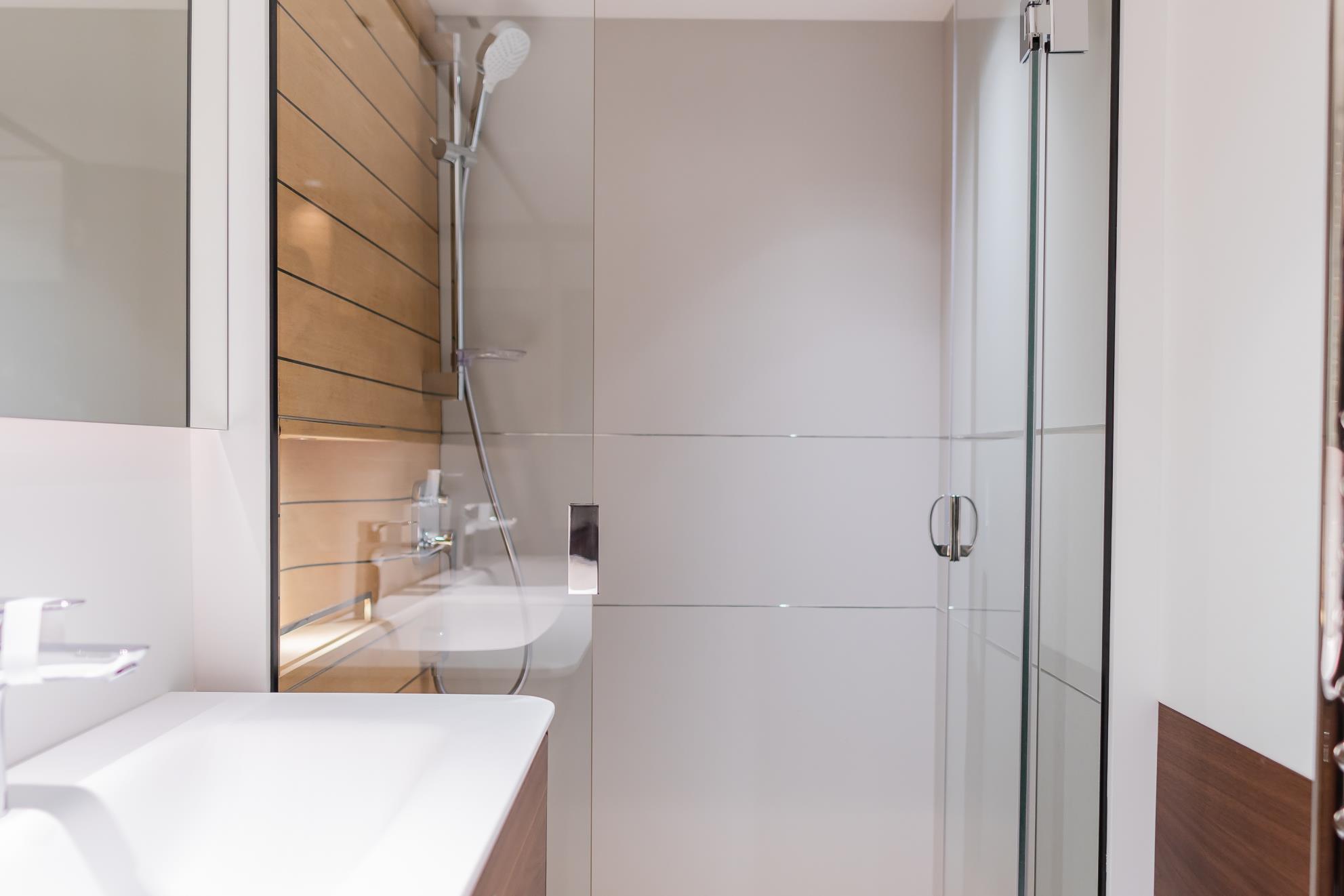

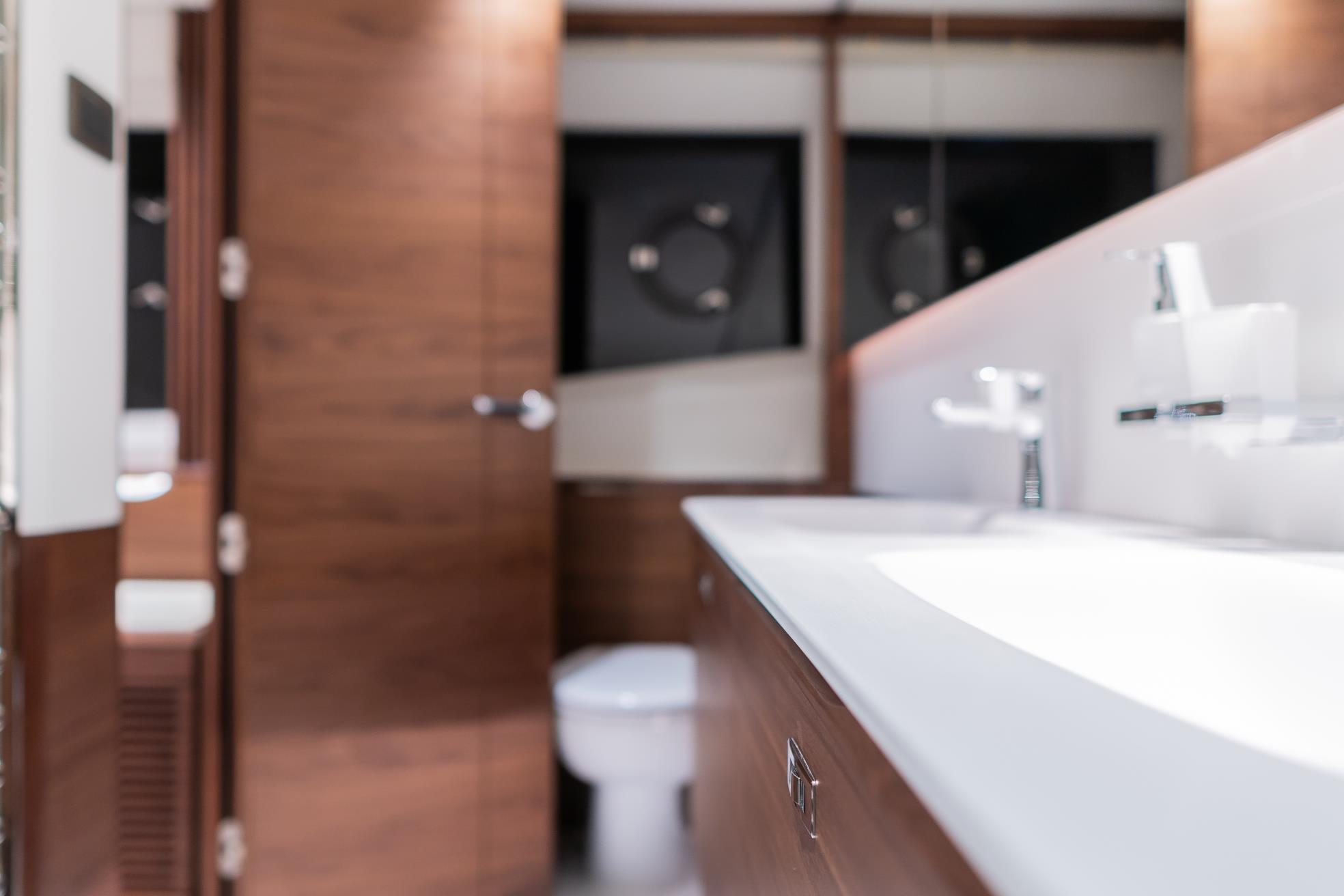

– Bathroom floors have Carrera White Solid Surface (satin finish) as standard in master stateroom bathroom (including optional main deck master stateroom when selected), all guest bathrooms and day head. Wash basins, vanity tops and splashbacks are in thermoformed Sylmar White Solid Surface (satin finish). Feature shower bulkheads and shower floor to have synthetic teak accents as standard in master stateroom bathroom and all guest bathrooms.

DECK HARDWARE

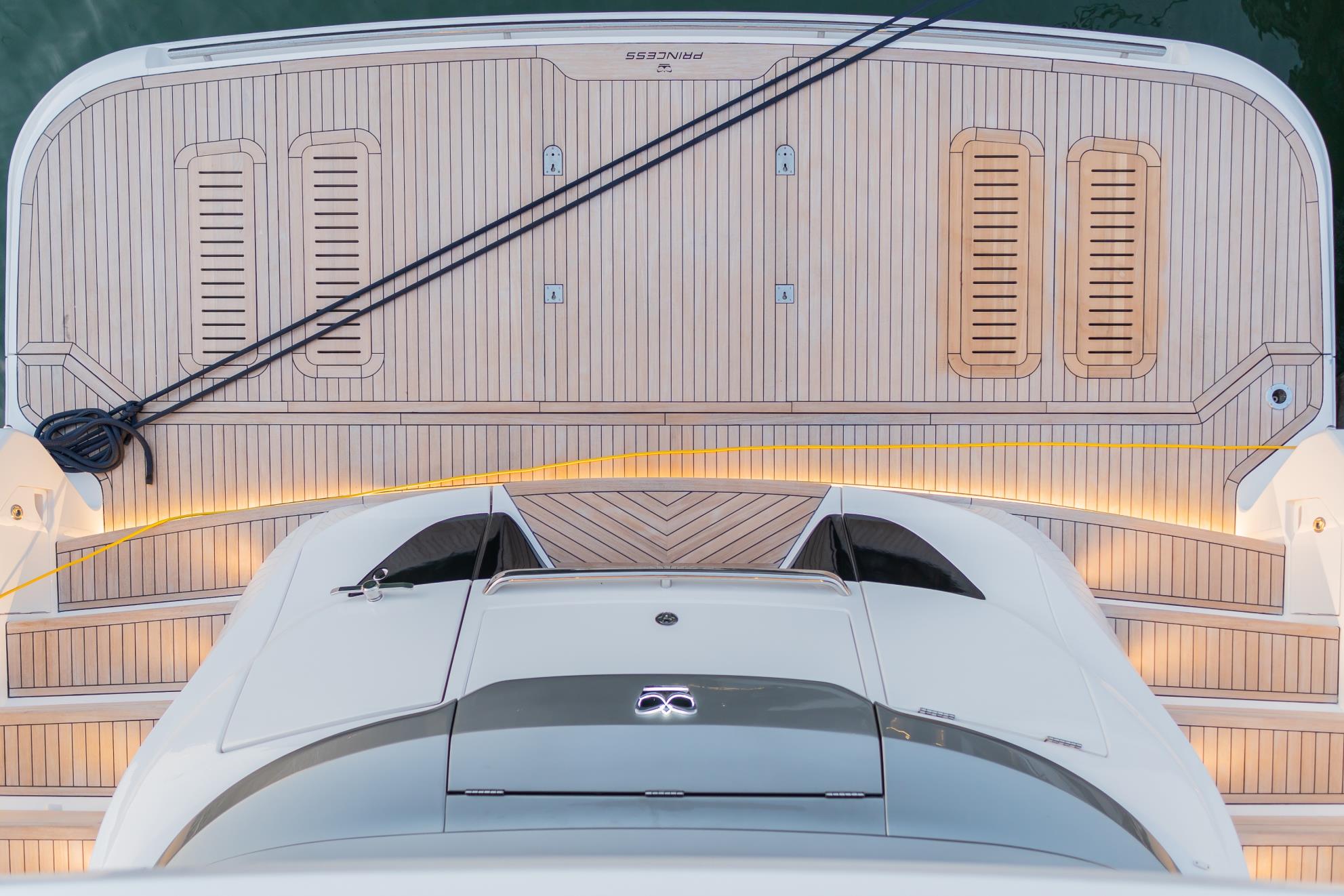

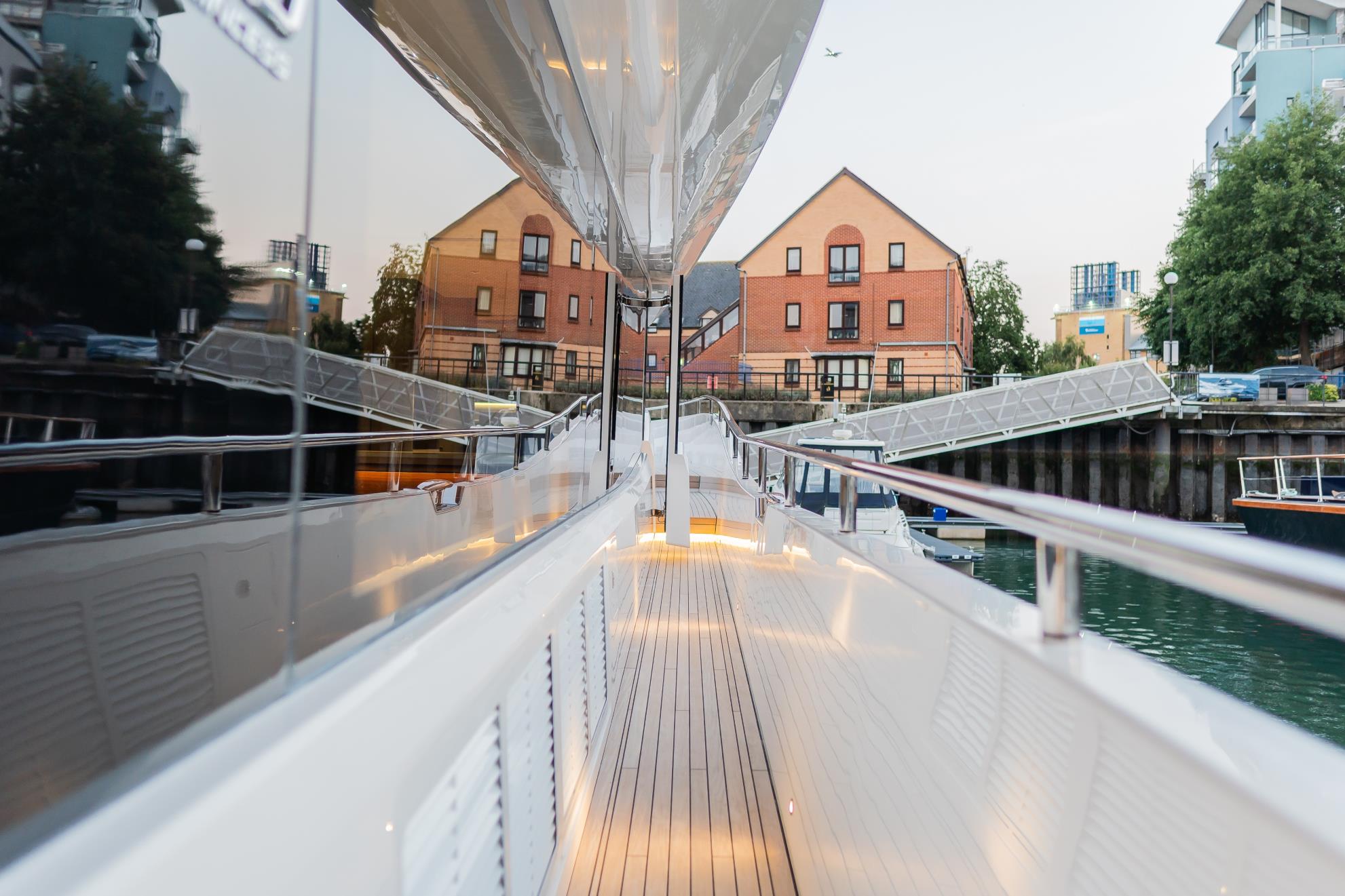

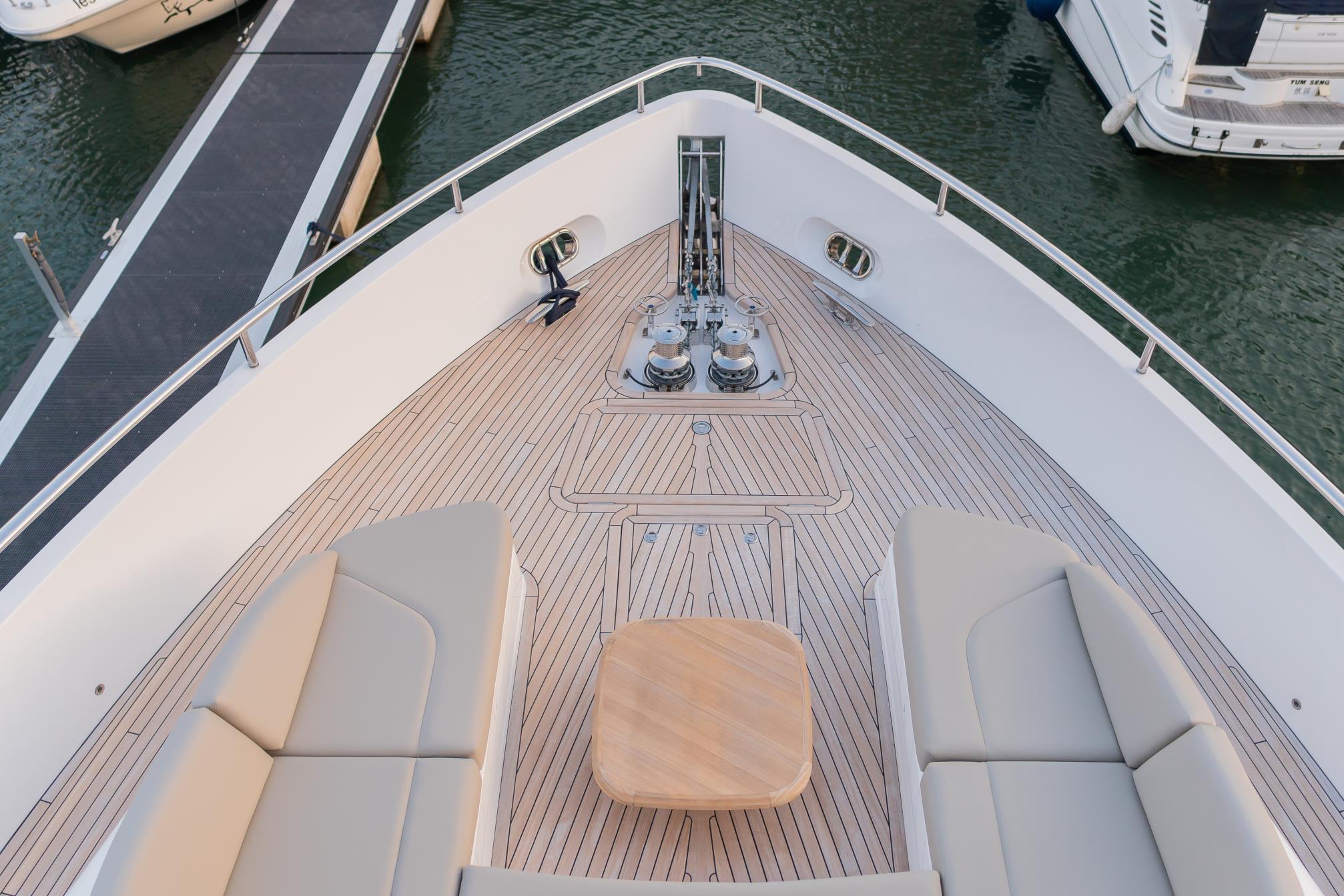

– Teak decking to transom platform, transom steps, cockpit deck, stairway to flybridge, side decks, steps to foredeck, main foredeck area, flybridge aft sun deck and flybridge foredeck seating walkthrough area. Note: The Princess X80 has an up/down electro hydraulic transom platform with 550Kg SWL fitted as standard (maximum recommended tender weight is 430kg) – suitable for up to a Williams Sportjet 395 or equivalent.
– Side entry gates to aft port & starboard side decks in addition to standard passerelle
– 8mm teak decking upgrade throughout in place of standard 6mm teak
– Additional 50m, per side, of 14mm galvanised anchor chain (standard is 100m attached to 80kg anchor & 70m attached to 50kg anchor)
– Electric aft awning fitted to upper deck (anthracite grey mesh)
– Plug in carbon pole transom shower and deck socket to bathing platform
– Cool box accessed from flybridge foredeck walkthrough area

GENERATOR & ELECTRICAL
– Generator Upgrade to two Kohler 28kW/50Hz generators, to be fitted in place of standard. Incorporates the Kohler PGEN paralleling system providing automatic Start/Stop control of the second generator as required to meet the boat loading conditions

ELECTRICAL
– UK 220v/240v sockets
– AGM 90Ah batteries in place of standard (for start, domestic batteries) and lead acid batteries for generator start.
– Underwater transom lights (4x Lumishore THX 803 full colour interfaced with Radar/Chartplotter MFDs)
– Underwater lighting to aft hull sides (4x Lumishore THX 803 full colour interfaced with Radar/Chartplotter MFDs – 2 per side)
– Flybridge aft wet bar unit fitted with 90 litre drawer fridge(Note: Not available with optional icemaker)
– Underfloor heating in lower deck master cabin bathrooms
– Heated towel rail to lower deck forward cabin bathroom
– Freshwater maker (190L/h) complete with remote instrumentation (incorporated into galley locker) and service/spares kit. (Note: Cannot be selected with the optional Spot Zero watermaker)(Note: Display to be fitted in wheelhouse)

– Exterior lighting upgrade package (incorporated into scene selection) Includes additional flybridge lights, deck lights, side deck downlights, bow lights and cockpit fibre optic lenses
– Interior lighting upgrade package (incorporated into scene selection)Includes under bunk LED strip lighting (excluding port cabin) and fibre optics to saloon headlining
– Electric roman blinds in place of manual in lower deck master stateroom
– Electric roller blinds to all main deck living area windows (excluding day head area) including galley, passageway and lower stateroom lobby, in place of manual blinds. (Includes powered curved blind to forward dining/optional main deck master window and electric upgrade to port side glass/port patio door (when selected)
– Electric roller blinds to Skylounge in place of manual – includes overhead blinds to skylight in place of manual
– Power Socket upgrade Additional power sockets sky lounge, deck saloon, galley, forward dining/main deck master option and all cabins, including crew quarters). Qi wireless chargers to flybridge foredeck and main deck foredeck seating
– Saloon lamp on aft end of starboard sideboard unit (Porta Romana Baobab in plaster white, with a 16” tall cylindrical shade in natural linen

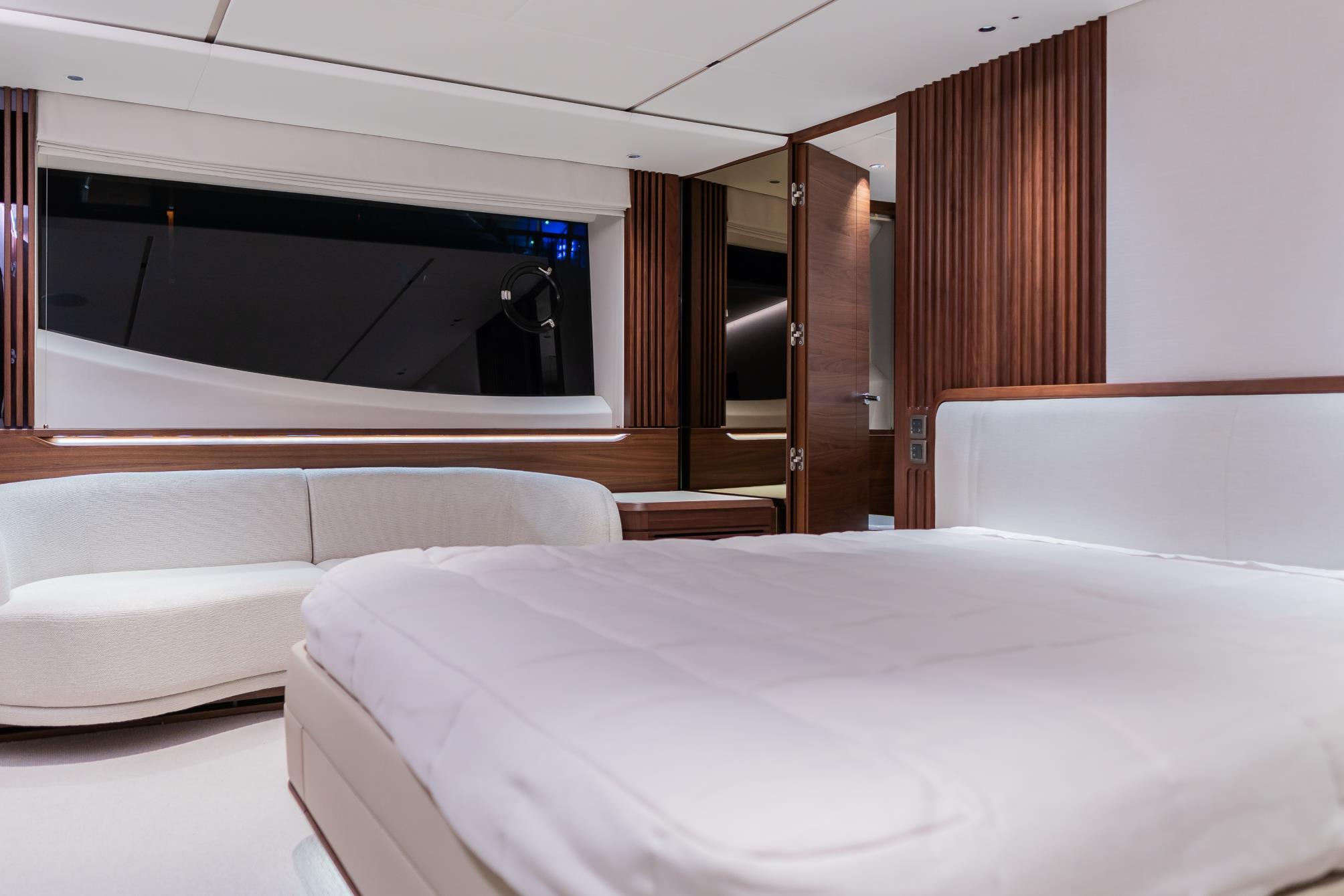

– Master (lower) stateroom lamp on forward end of the port vanity unit Porta Romana Hardy Lamp VLB61 with 18″ straight oval in natural linen and card lining – base in dappled white

AUDIO VISUAL & COMMUNICATIONS

– STANDARD AUDIO/VIDEO SYSTEM (4 cabin layout)Incorporates : Deck Saloon – 55” LED TV on a power lift.Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with Focal speakers (2) and a subwoofer.Owner’s Stateroom – 55” LED TV, Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with Focal speakers (2) and a subwoofer.Forward Stateroom – 43″” LED TV, Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with Focal speakers (2).Forward dining area Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with Focal speakers (2)Skylounge Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app.Paired with Focal speakers (2)Flybridge aft– Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with JL Audio waterproof speakers (2)

– System includes- on board Ethernet network and 4G internet capability- on board WIFI network incorporating external WIFI and 3G/4G antenna for extended range.Enabling connectivity to onshore WIFI networks through the vessel including crew and external guest areas (Mobile internet connectivity required an activated mobile data SIM card)• Combination inverter charger fitted, providing seamless transfer between generators/shore power and inverted battery power for full audio and wi-fi system (includes saloon TV for non-US boats).
“STANDARD AUDIO/VIDEO SYSTEM (5 cabin layout) – where selected 5 cabin layout with main deck Master Stateroom – includes the following zone in in place of the Forward Dining Area in the package above: Main deck Master Stateroom – 50” LED TV, Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with Focal speakers (2) and a subwoofer.

– Skylounge 55″ TV connected to standard Audio system

– Cockpit seating area Audio Package Naim audio Uniti Atom system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with JL Audio waterproof speakers (2) a subwoofer and an amplifier
– Forward dining TV & audio upgrade – 50” LED TV, Naim Uniti Star audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with upgraded Focal speakers (4) and a subwoofer
– Starboard Cabin TV & Audio Package32” Magic Mirror TV, Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app.. Paired with Focal speakers (2).
– Port Cabin TV & Audio Package32” LED TV, Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app.Paired with Focal speakers (2).

NAVIGATION

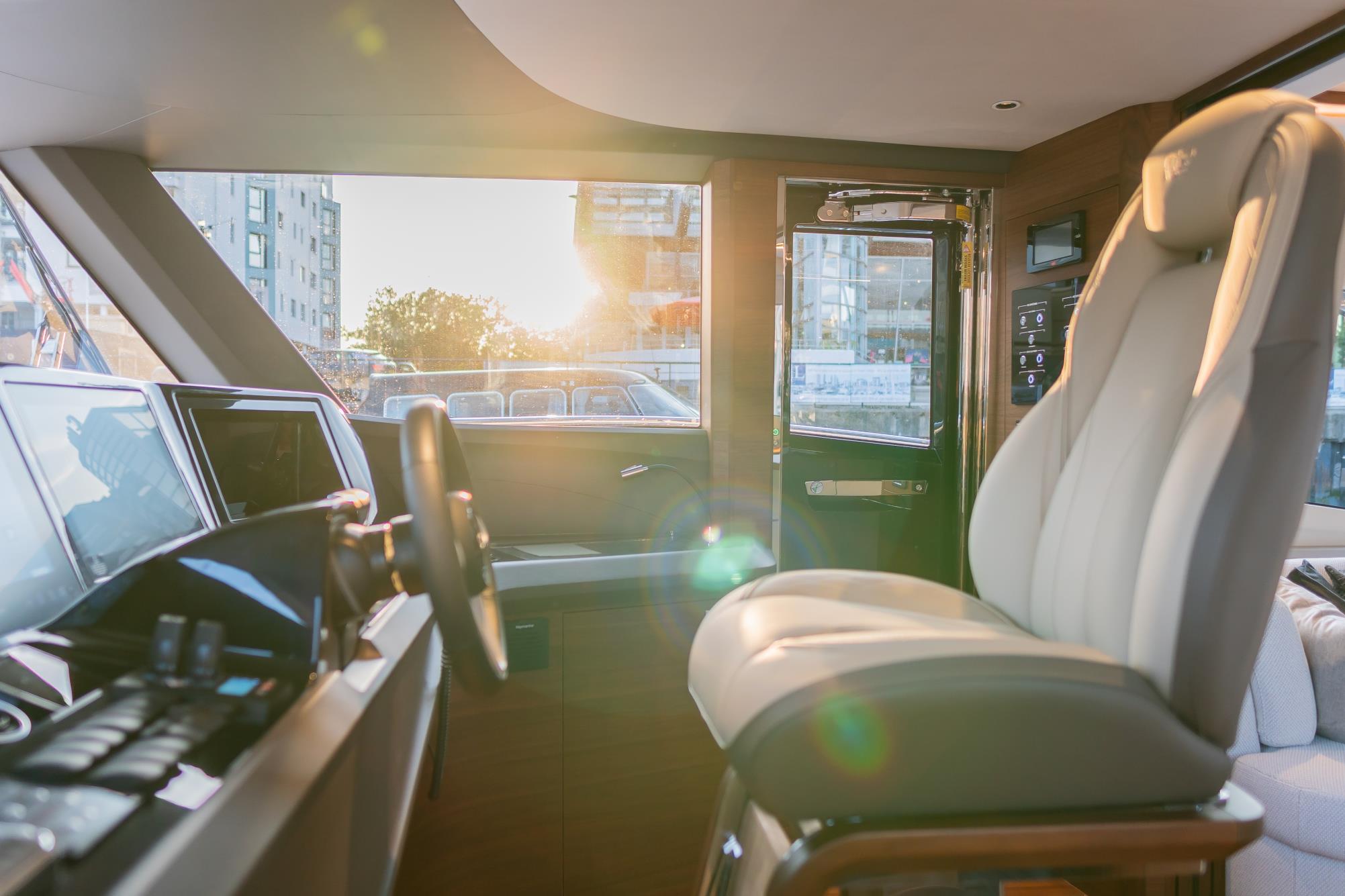

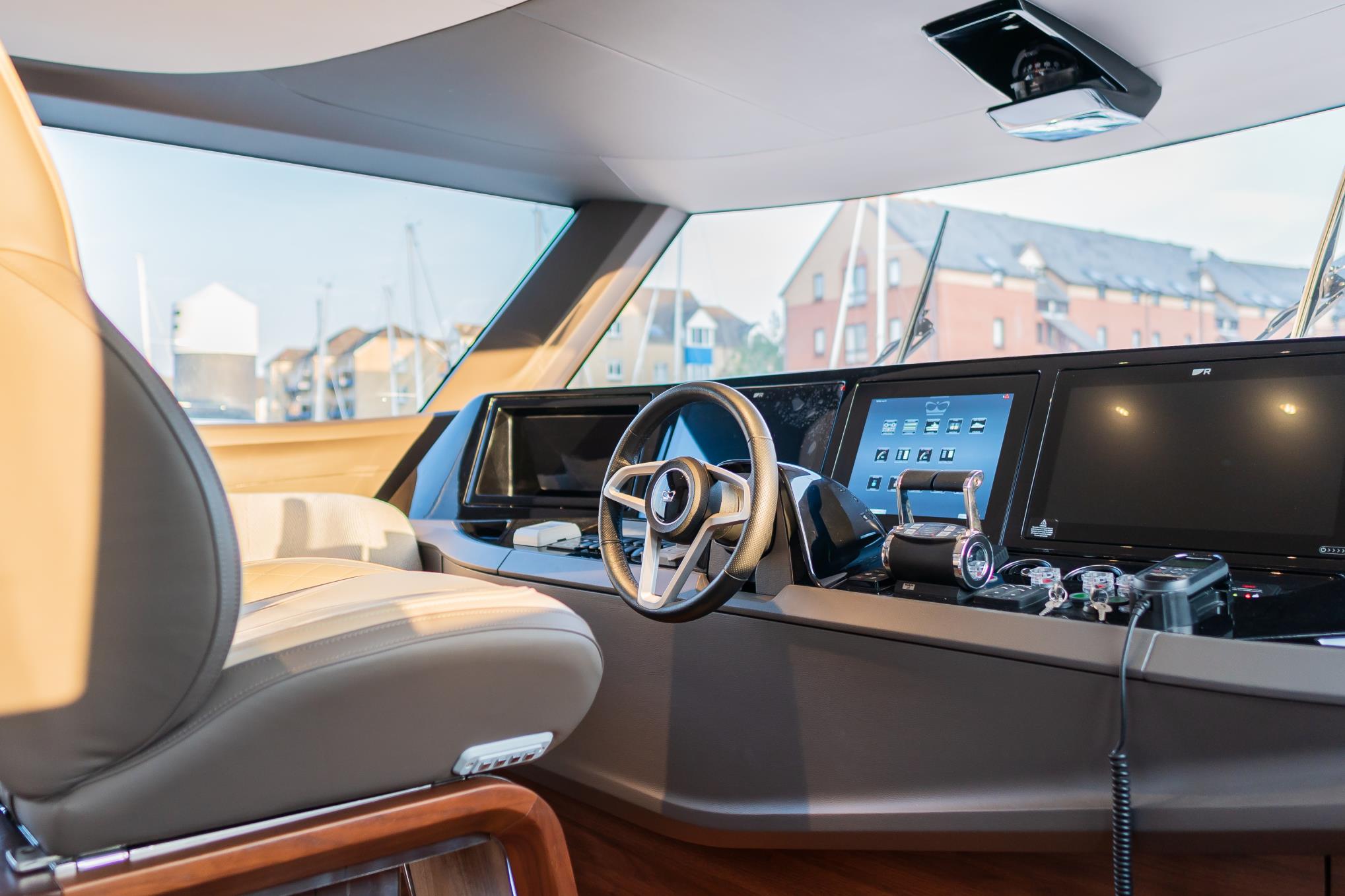

– Standard Navigation equipment incorporates:- Raymarine Axiom XL Radar/Chartplotter with GPS & 2 x 15.6″” display brilliant colour multifunction displays (with RMK-10 remote control) and Raymarine Cyclone Radar 55W pedestal with 4′ open array scanner. Raymarine p70Rs autopilot with rate gyro and i70s colour multifunction instruments (for speed, distance, trip, depth, depth alarm, water temperature etc).1x Böning screen with the following functionality…-E ngine instrumentation (including fuel levels & fuel flow)-Digital boat alarms-Lighting controls-A C/DC control & monitoring
– Raymarine Axiom XL multifunction 19” brilliant colour multifunction displays (2) in place of standard 15.6″ displays at helm
– Raymarine chart plotters have embedded charts which cover certain areas of the world, to ensure the correct version of plotter is fitted please indicate the area of use
– Rest of World version plotter charts
– Raymarine AIS Class B transponder interfaced with chartplotters
– NB Automatic Identification System Class B both transmits and receives ship identification, position, course and speed information also please note the AIS installation price does not include final commissioning which must be carried out locally once ship’s name, call sign and MMSI number are known This craft is fitted with a Raymarine 90 Station VHF – to ensure correct unit is fitted, please indicate VHF/RT DSC registration
– International VHF

EXTERIOR UPHOLSTERY / CANVAS / COVERS
– Fixed cockpit seating/Foredeck/flybridge foredeck seating and sunbed in Comfort Exterior III Met or VogueMain upholstery Colour : MET MACADAMIA
– Exterior covers – Grey Canvas

ACCESSORIES
– 8 place setting of china, cutlery & glasses are supplied as standard, additional place settings are available as follows (10 place setting if 5 cabin layout is selected):
– Fender socks with Princess Logo (each) Dark blue – X10
