MAAOS

Specification Details

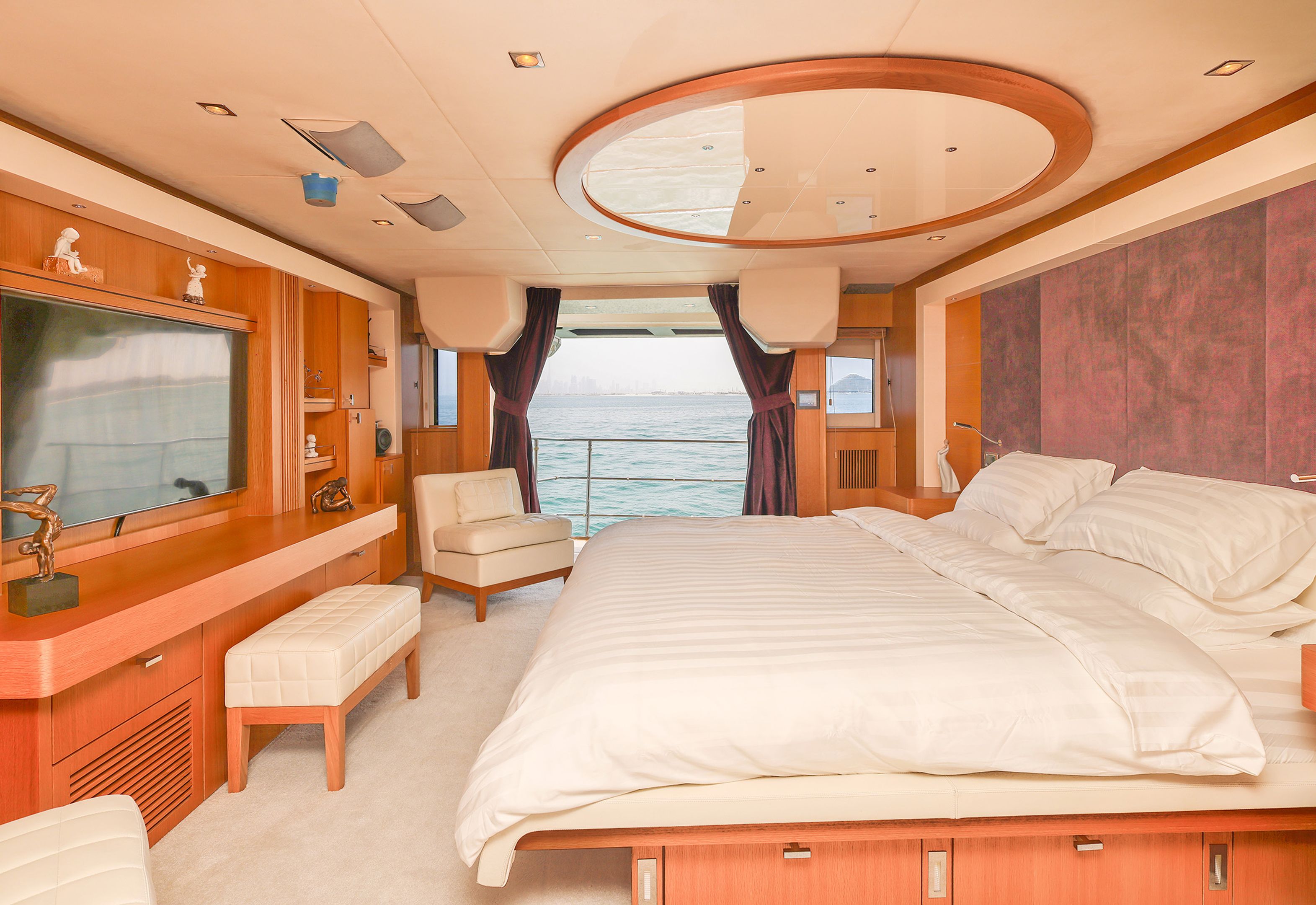

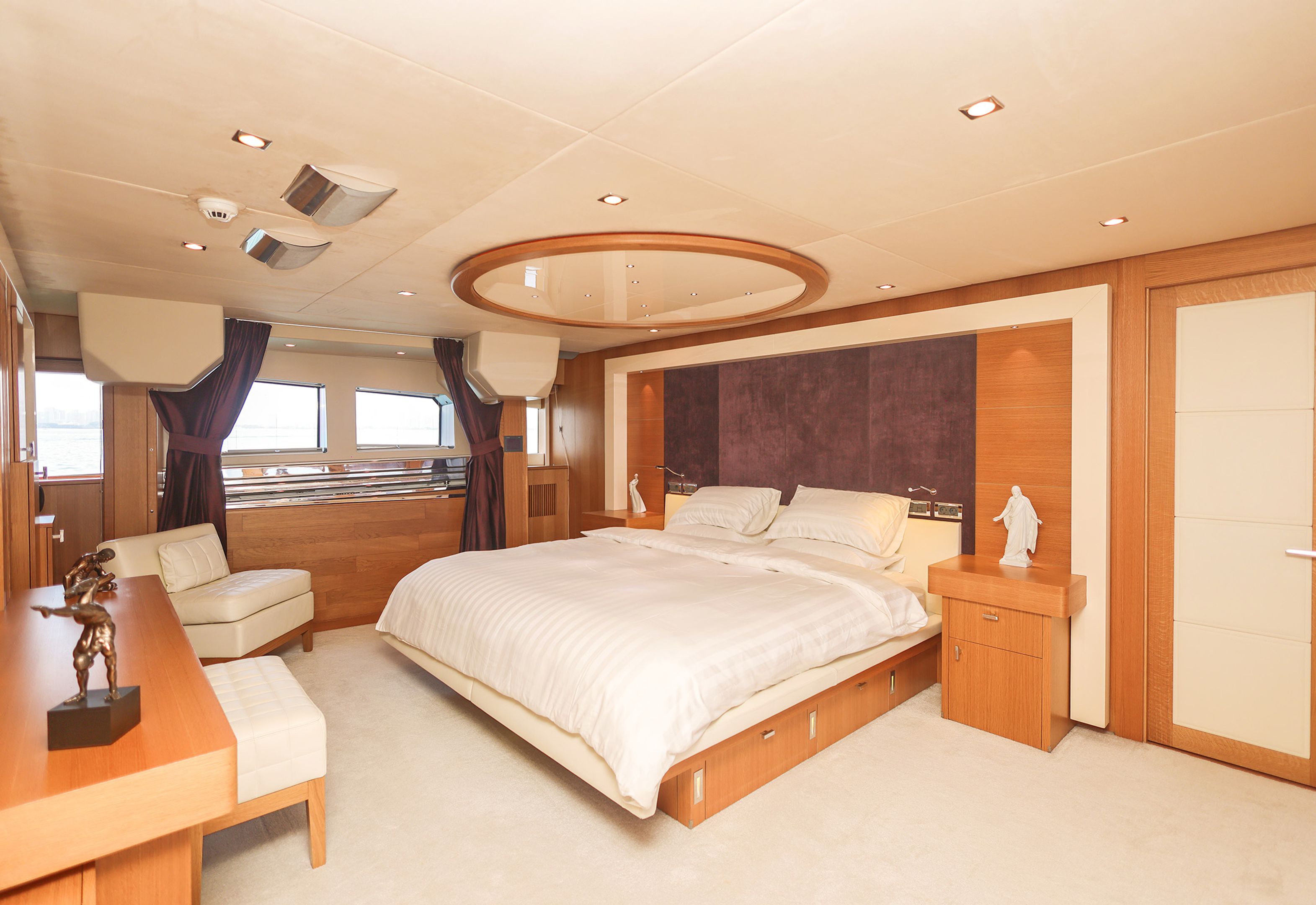

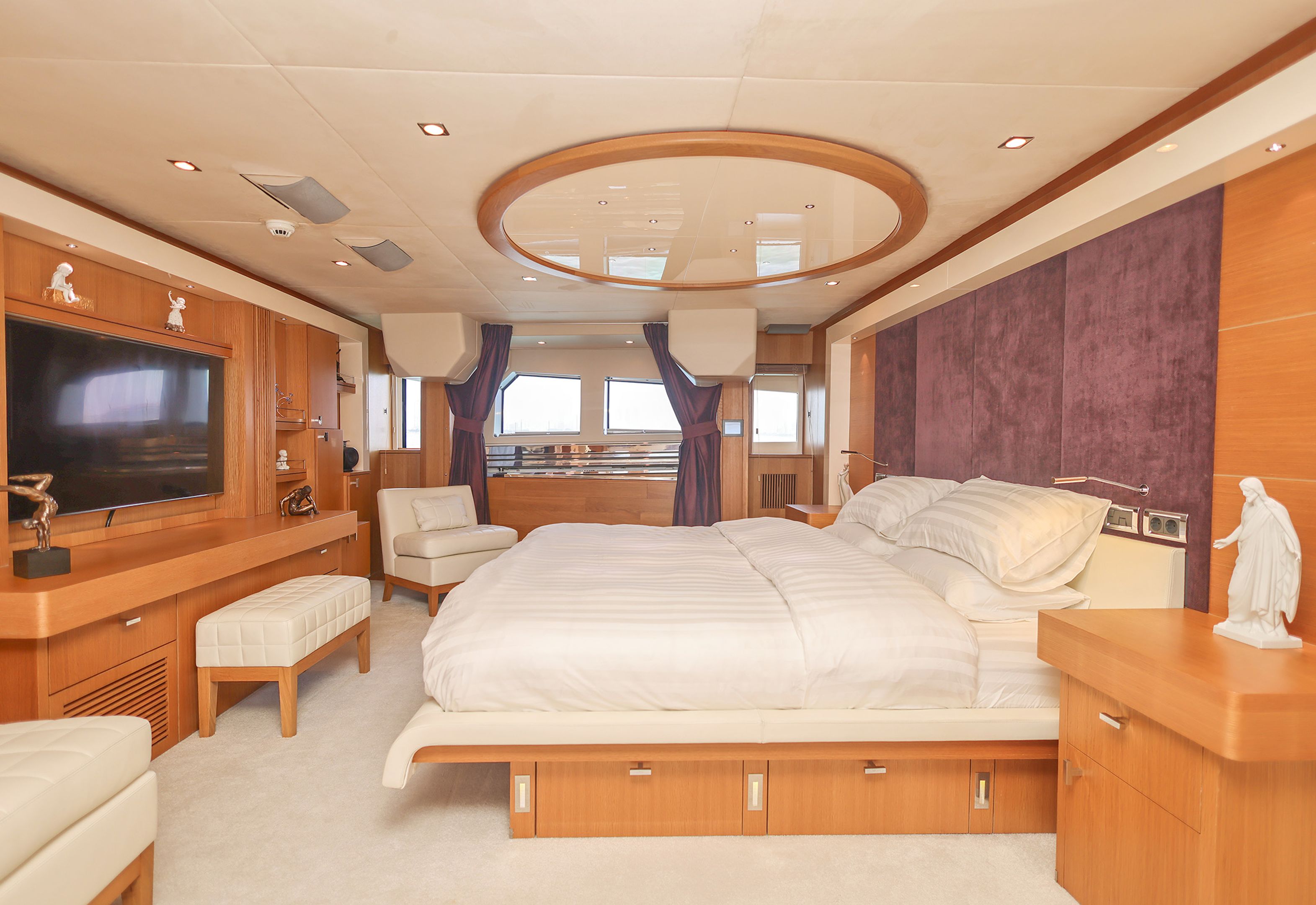

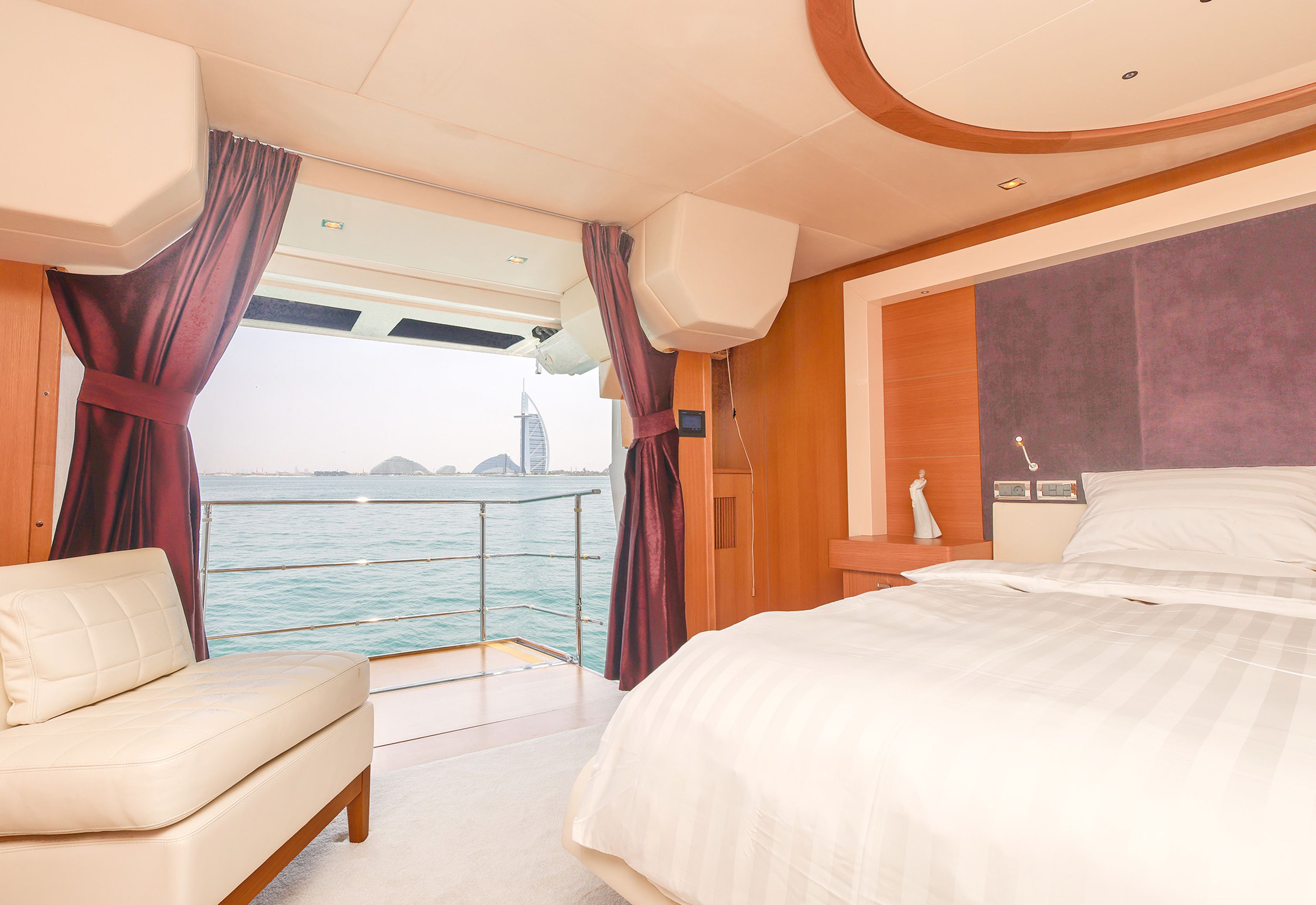

Owner’s Suite, Main Deck Forward
A majestic full beam stateroom forward of the main saloon on the main deck, the bedroom features a large flat screen television and optional hydraulic balcony.

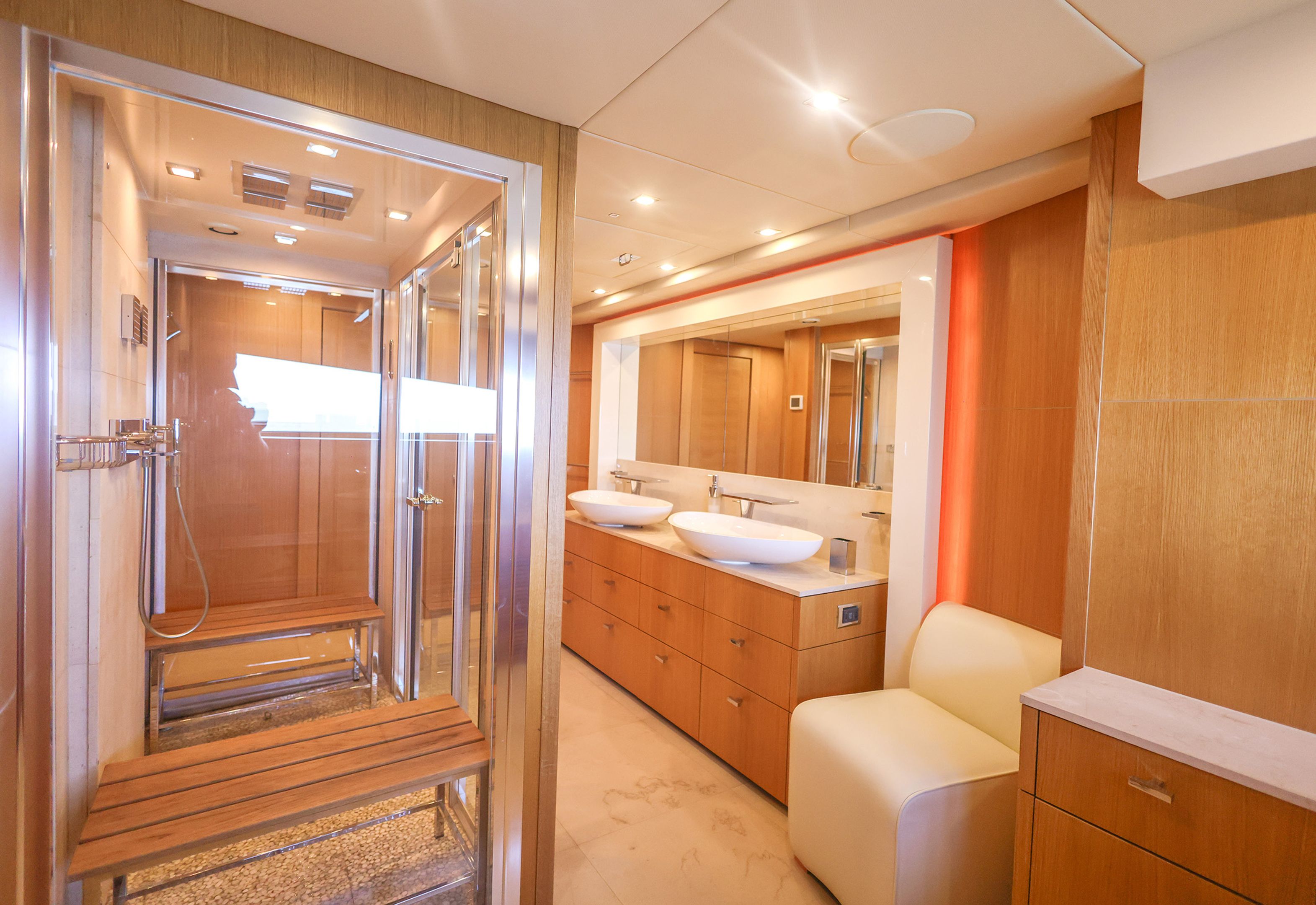

Forward is the spacious en suite with his and hers washbasins and enclosed shower & stream room.

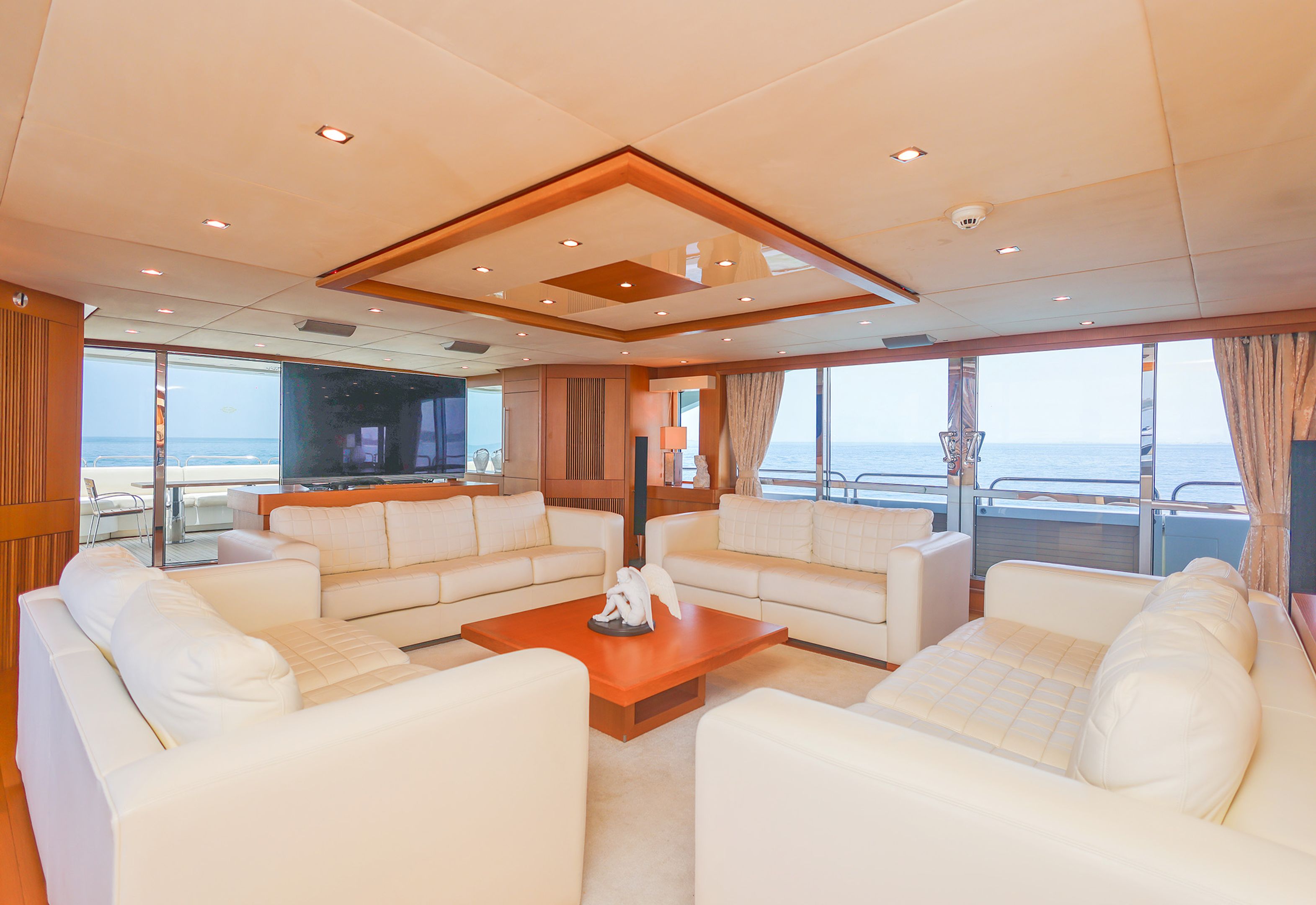

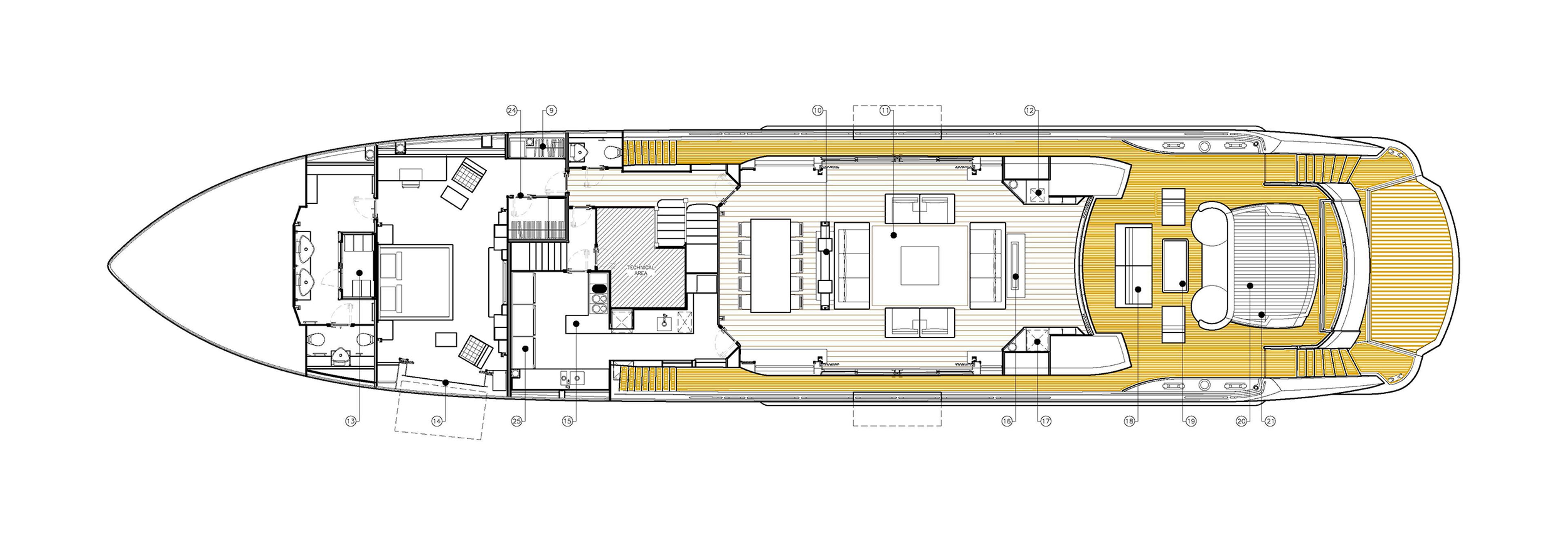

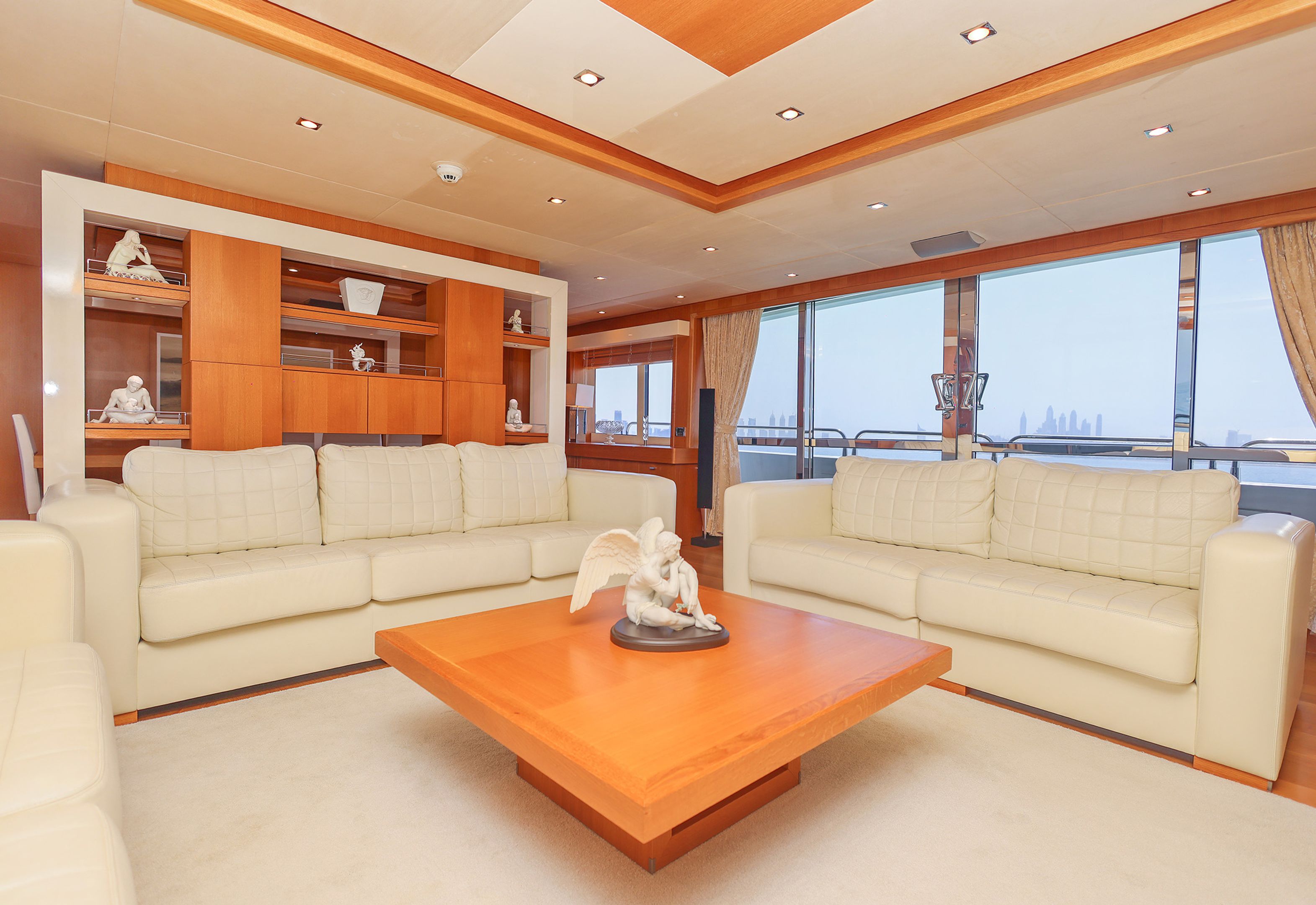

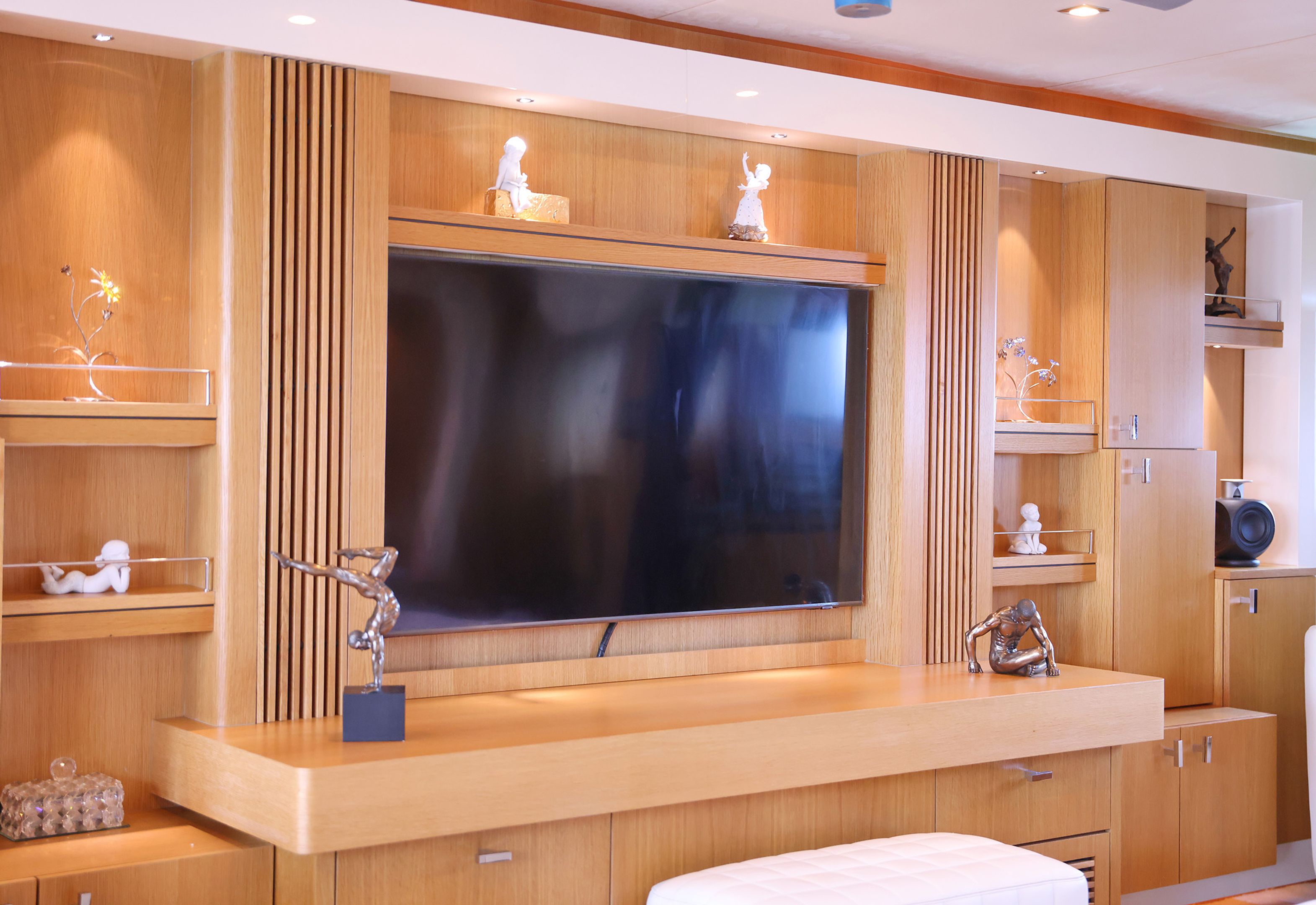

Main Salon, Main Deck

• BO System
• TV Screen BO
• iPod docking station
• Mini Fridge & Bar
• Mini Fridge & Bar
• OCEAN AIR blinder
• Sounds System (Subwoofer)
• Escape Hatch (Floor bathroom crew, top sinks foredeck)
• Steam Shower
• Bathroom Heating Floor
• Entry walking wardrobe
• Additional sound insulation

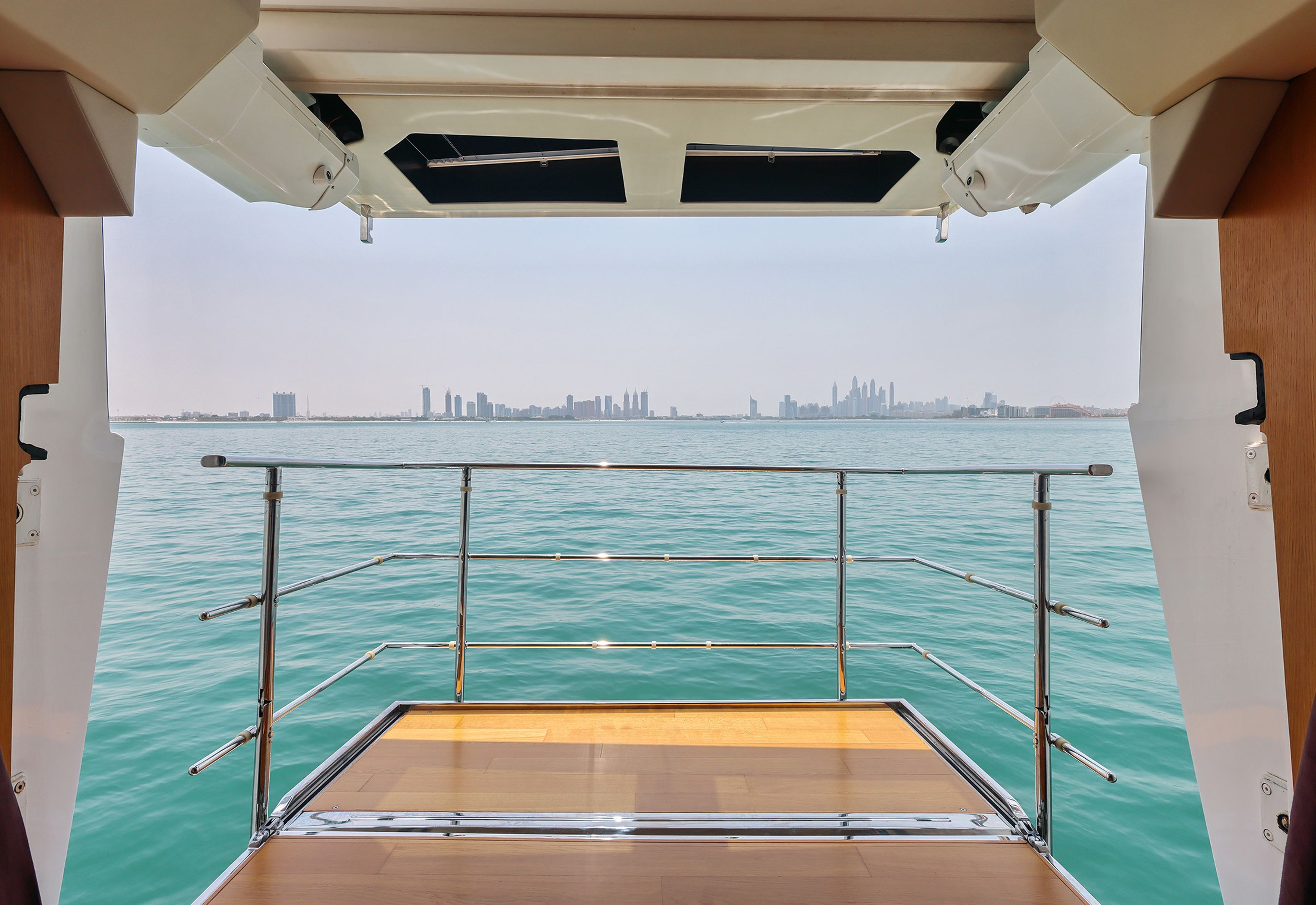

• Balcony : (BESENZONI) full hull side split door arrangement with automatic stanchions
• Teak Inlay

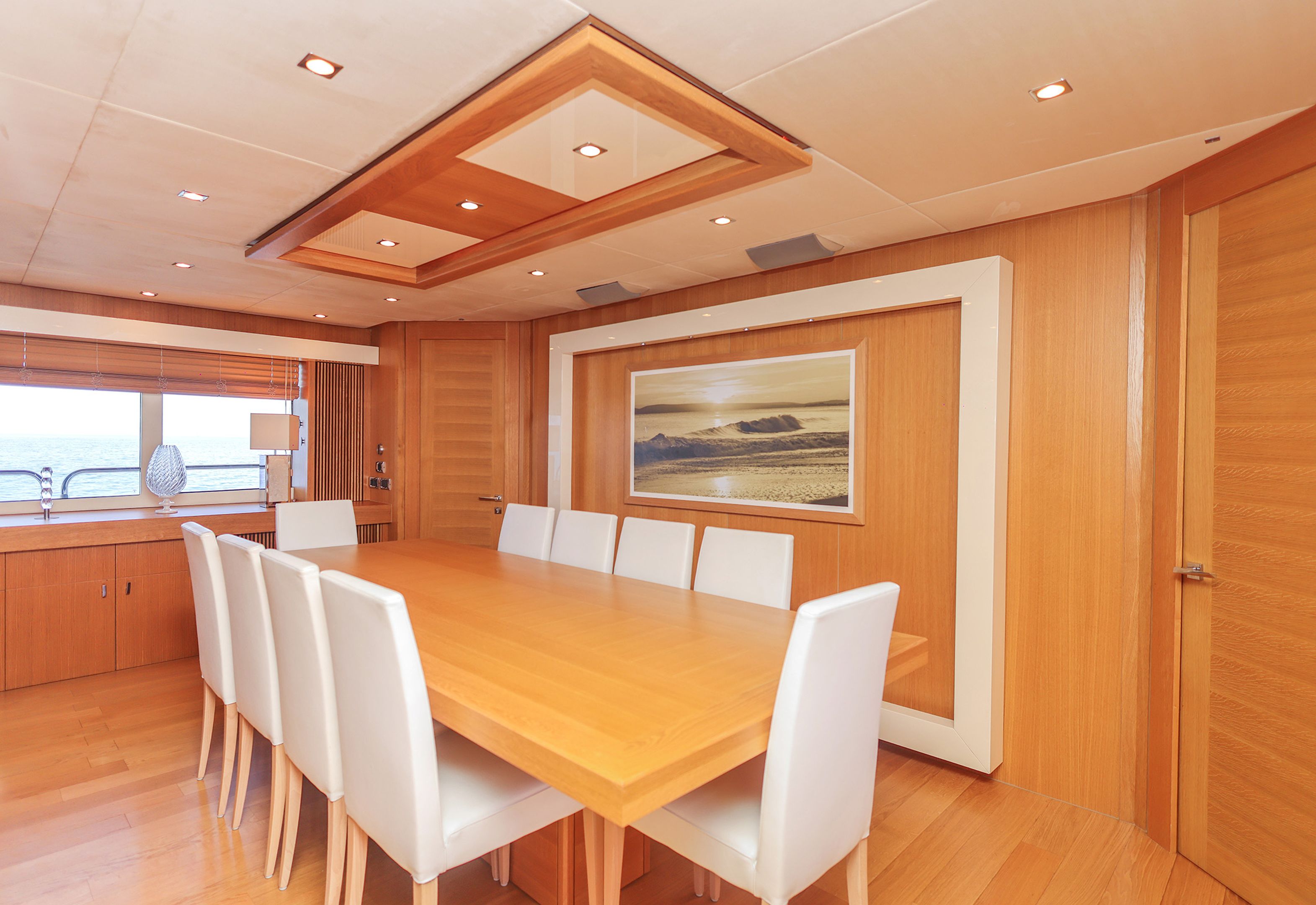

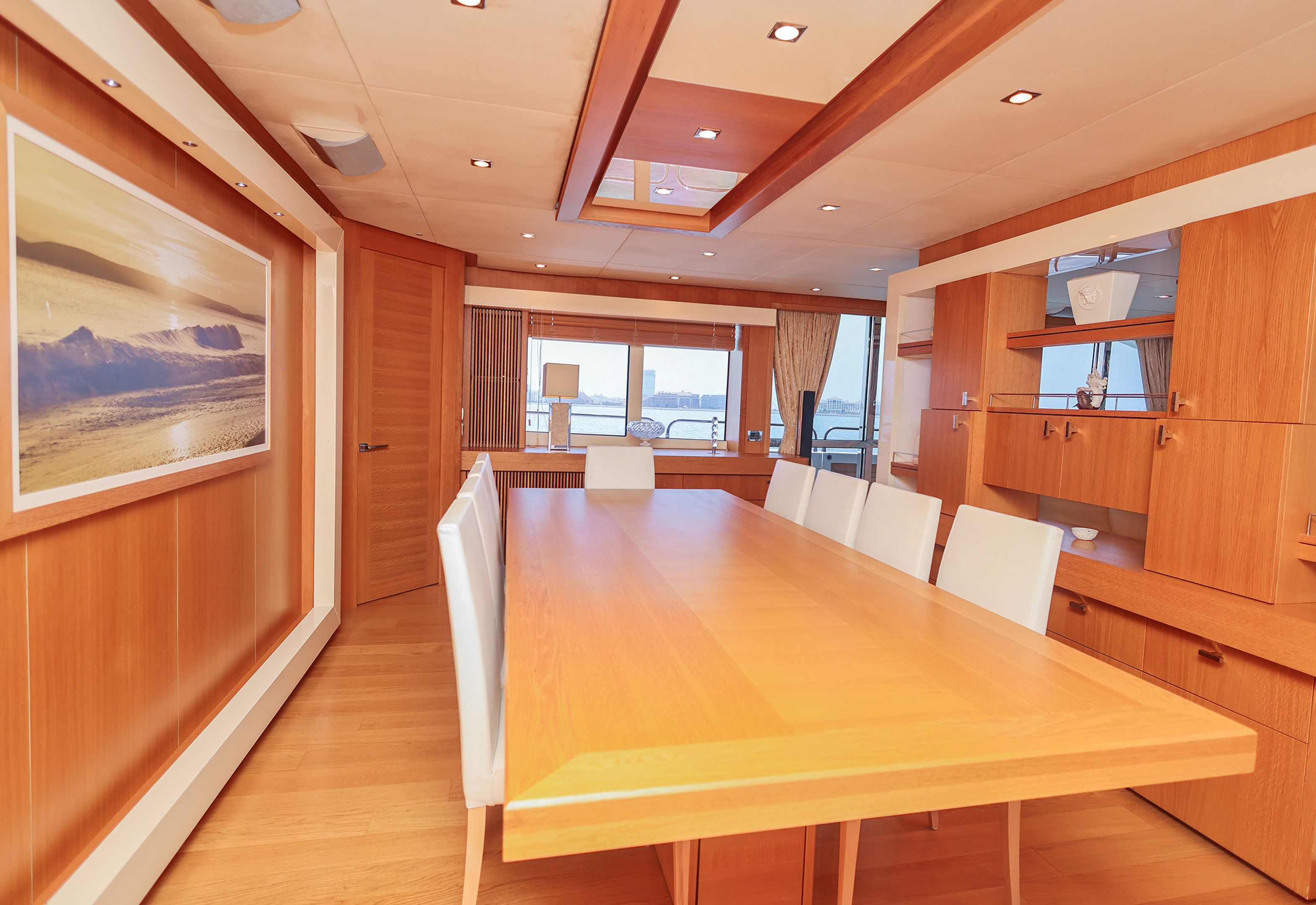

Dining Salon, Main Deck
An open-plan area that is the perfect meeting place for guests, the main saloon feature s ample seating, a rise and fall flat screen television and hydraulic balconies.

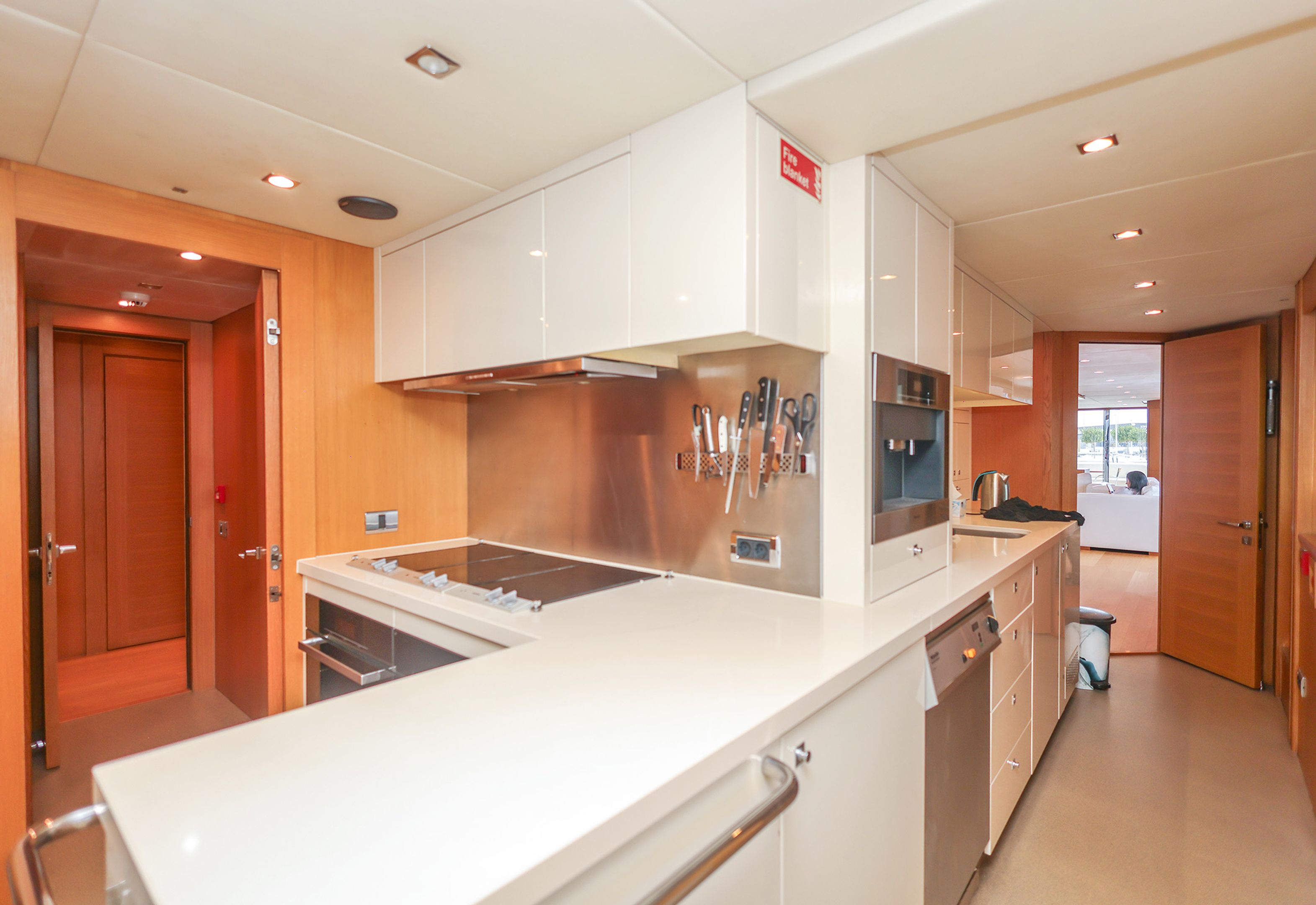

Galley, Main Deck Forward Amidship
This area features a table that can sit twelve and benefits from an airy, light feel with proximity of the balconies. Located on the main deck adjacent to the dining area, this is a fully fitted, chef-standard kitchen where all guest meals, including formal dinner parties, can be prepared with ease.

• All Oak Panelling & Floor
• Blade Store Wood
• Fridge & Icemaker
• AV System BO
• 4 Sofas – Coffee Table
• UV Tinting on main deck saloon side windows and patio doors
• Electric Patio Door
• Full height bulwalk balcony fitted with manual stanchions

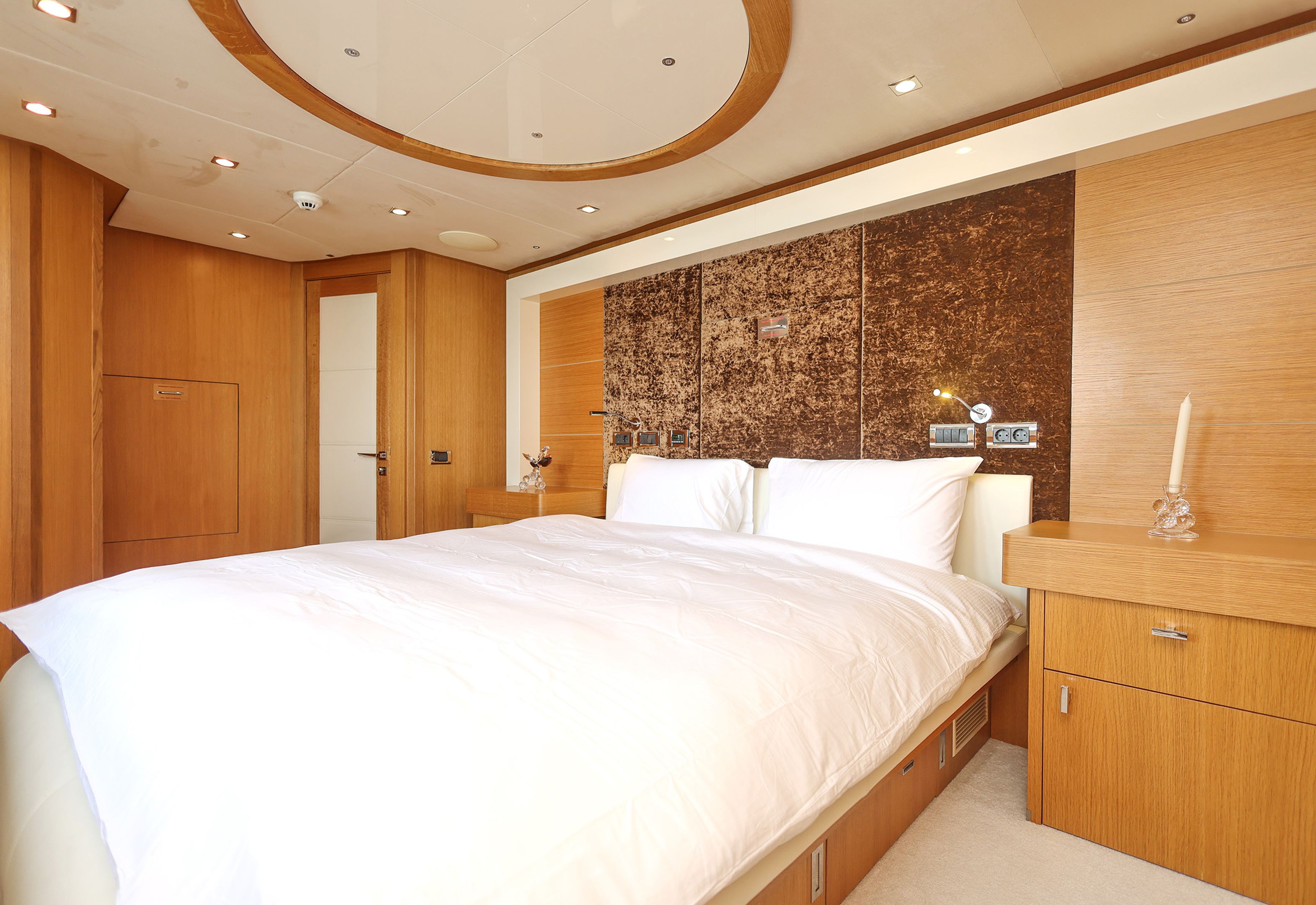

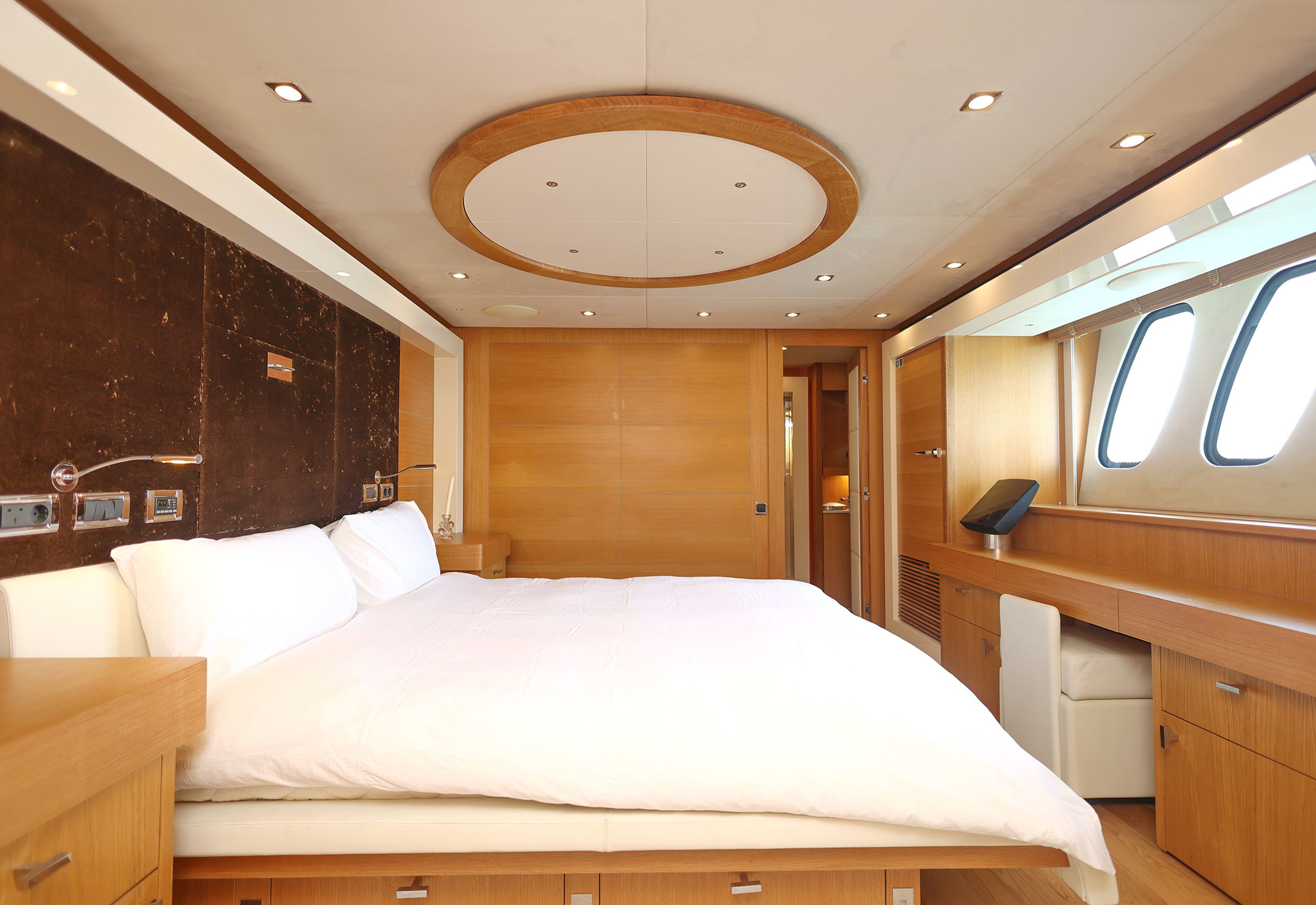

Guest Staterooms

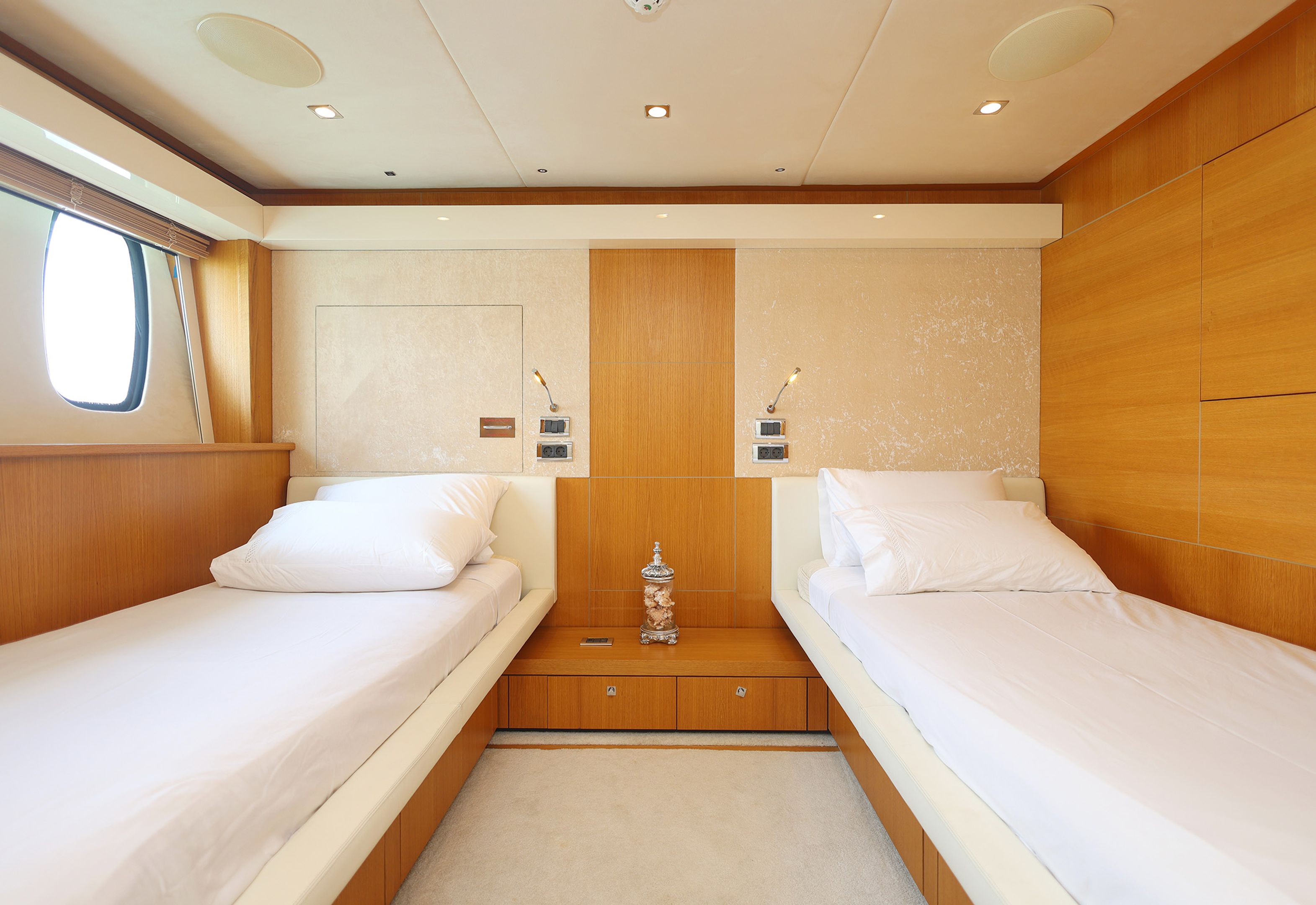

• Port guest stateroom offers twin beds and en suite shower room.
• Entertainment B&O IPOD Dock

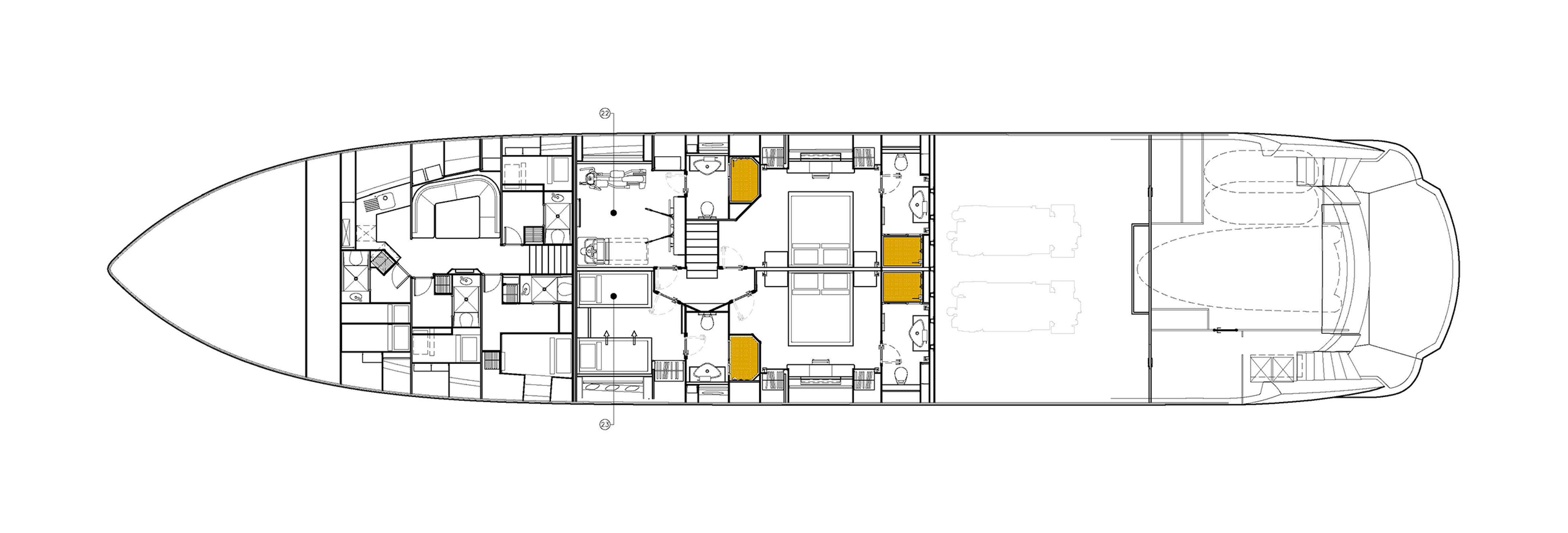

• (2) Guest staterooms below deck aft with Queen Size bed and en suite bathroom, entertainment B&O IPOD Dock

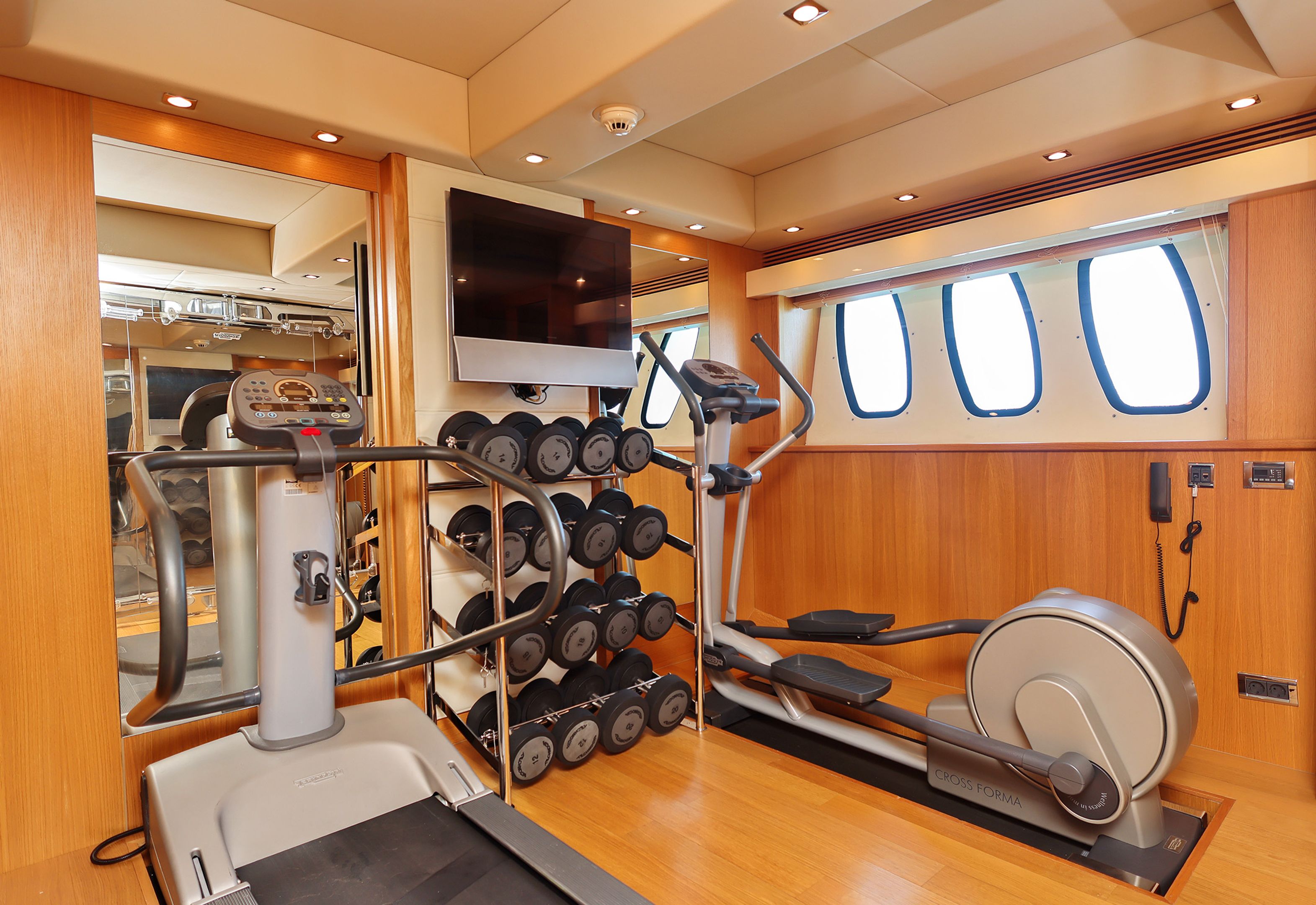

• Exercise Room, Below Deck Forward Starboard
• The Gym includes a Complement of exercise equipmen

Crew Quarters Forward
With separate circulation for the crew, the crew area is accessed through staircase from the main deck. Feature a galley and crew mess as well as Accommodation for up to eight crew.

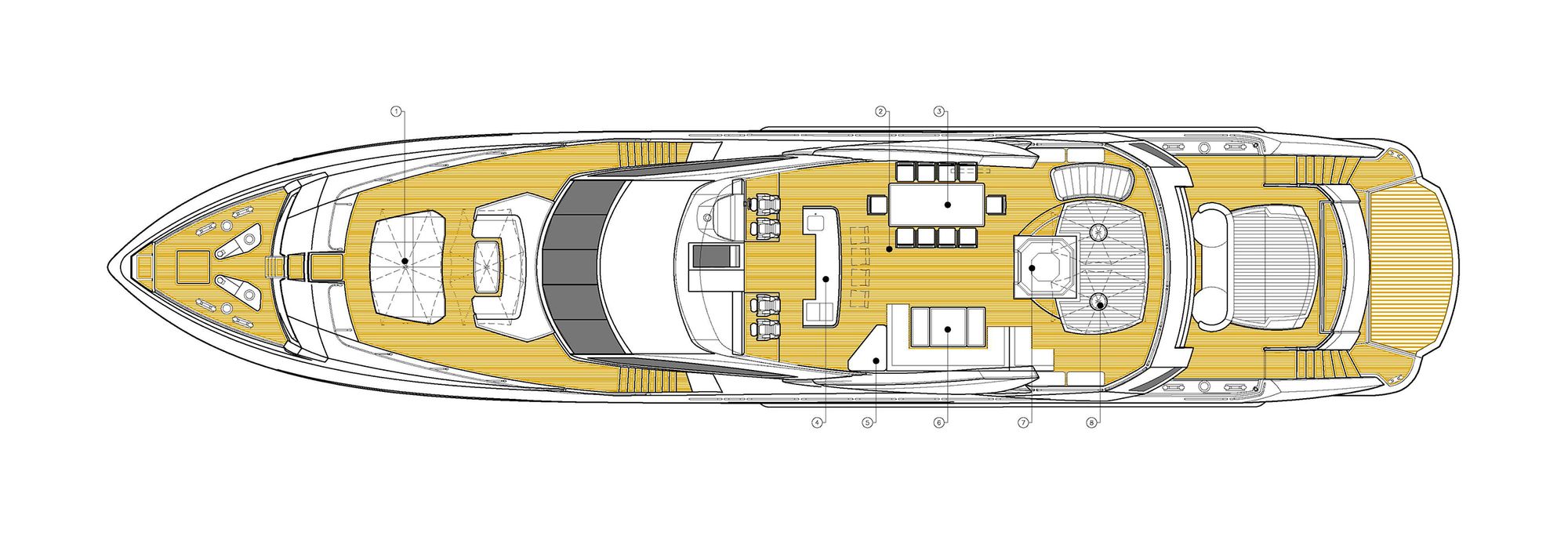

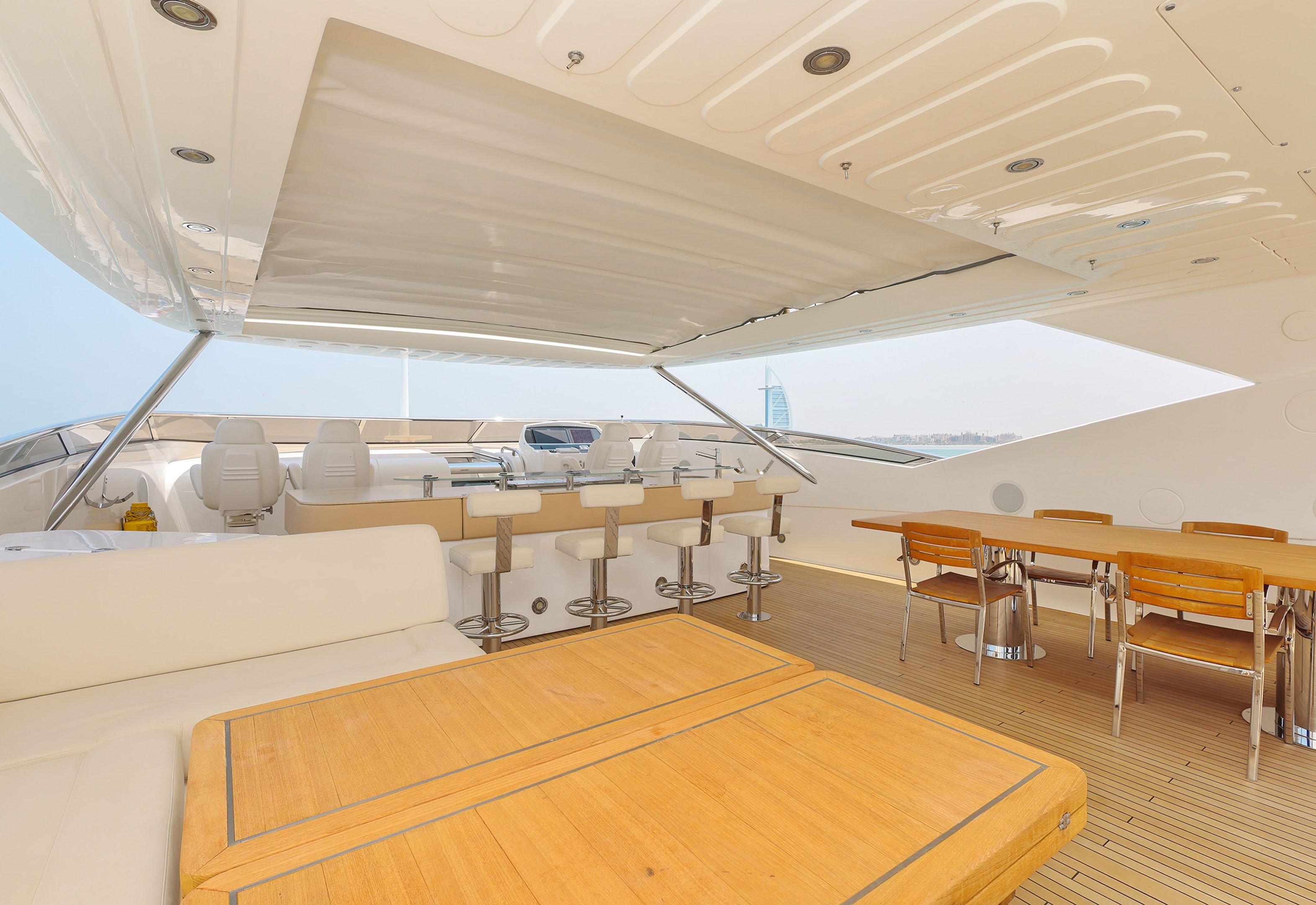

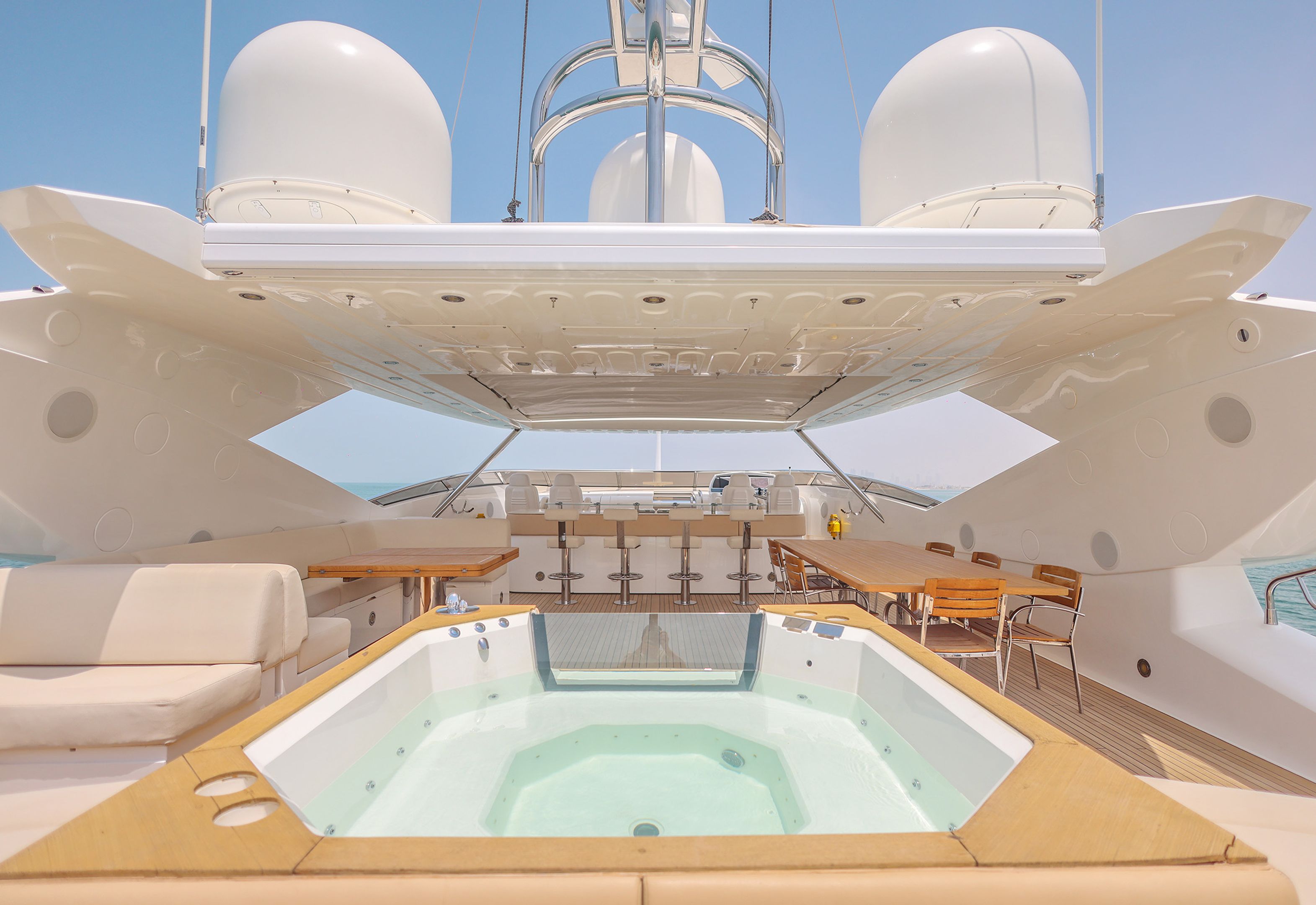

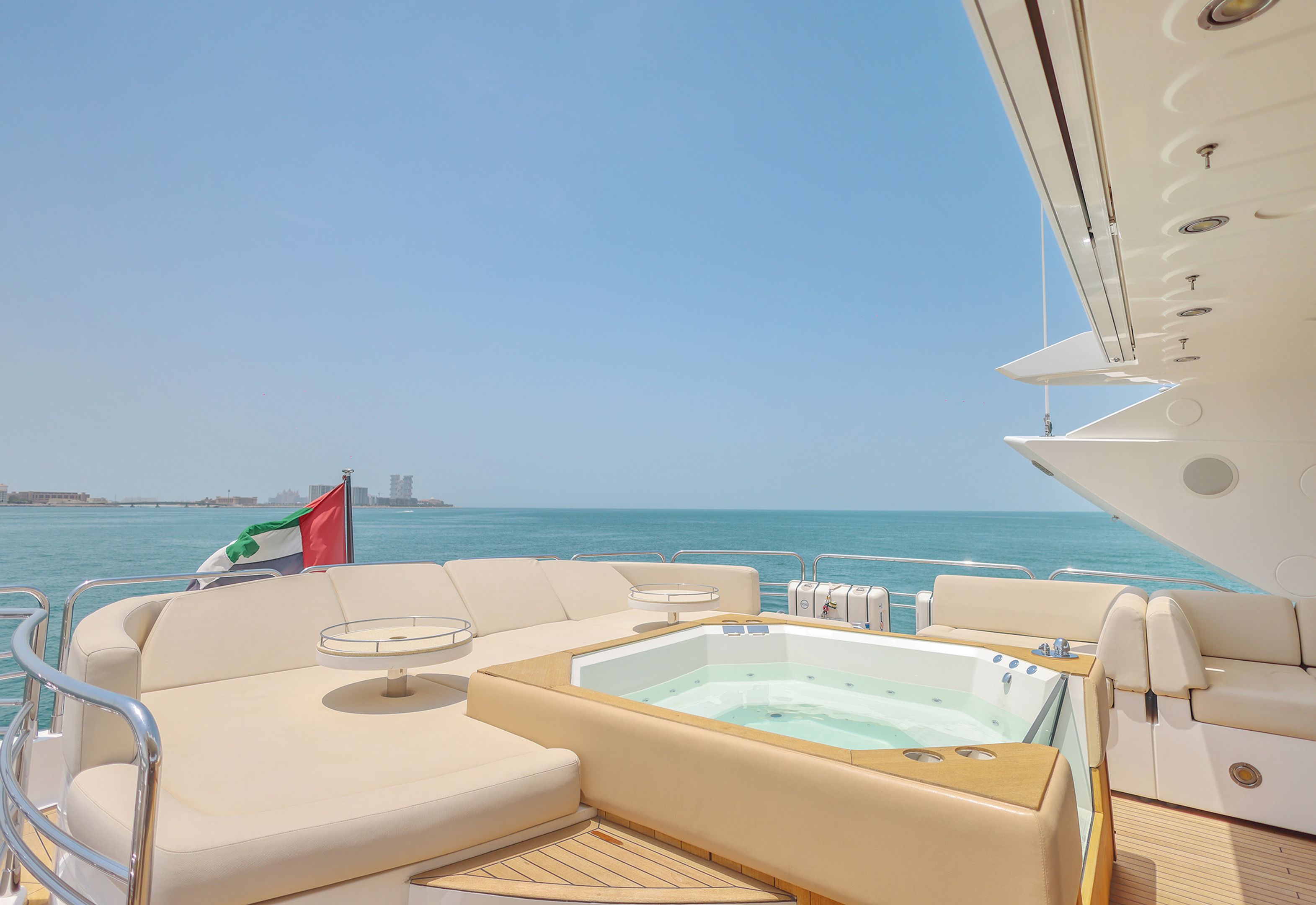

Sun Deck

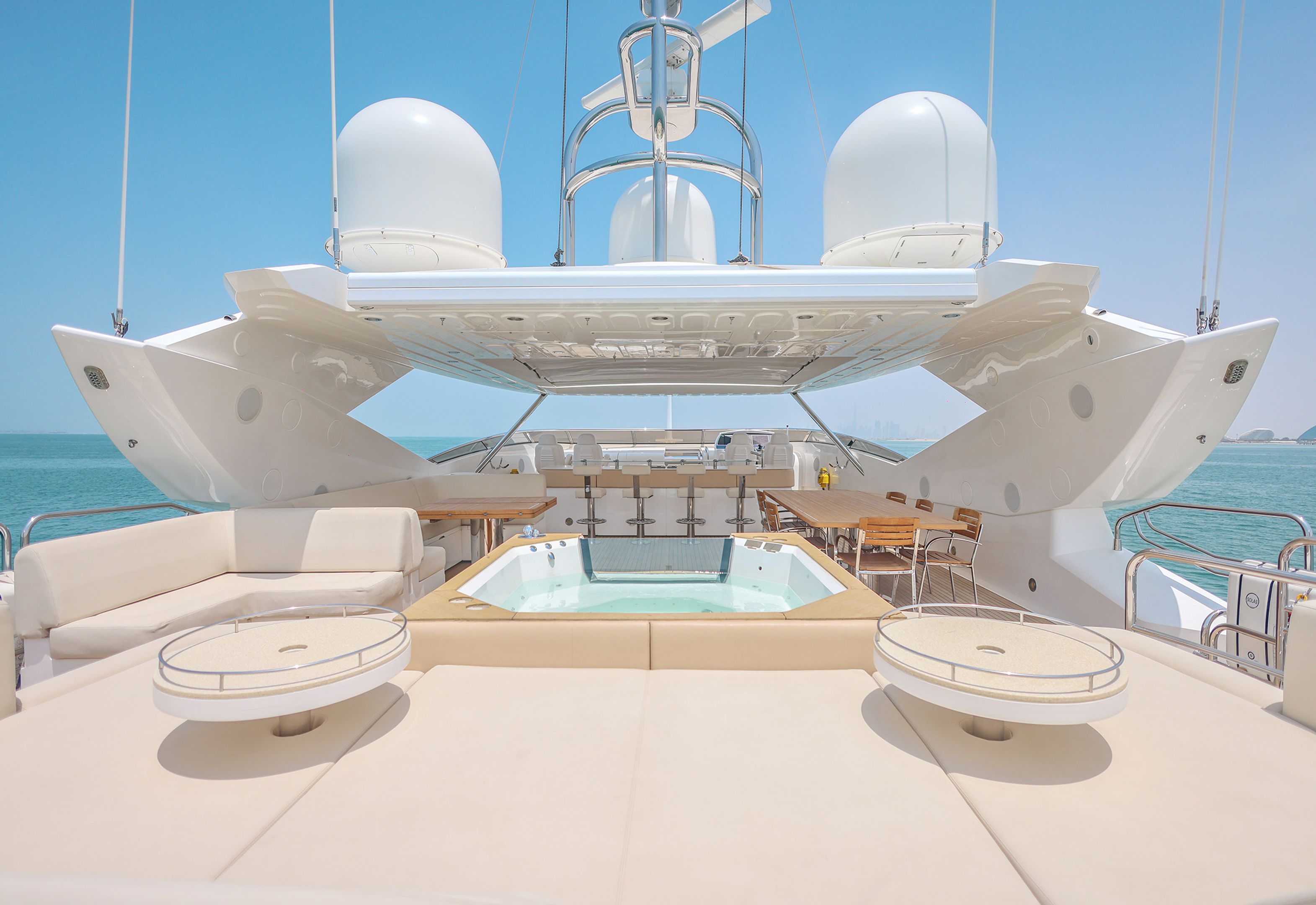

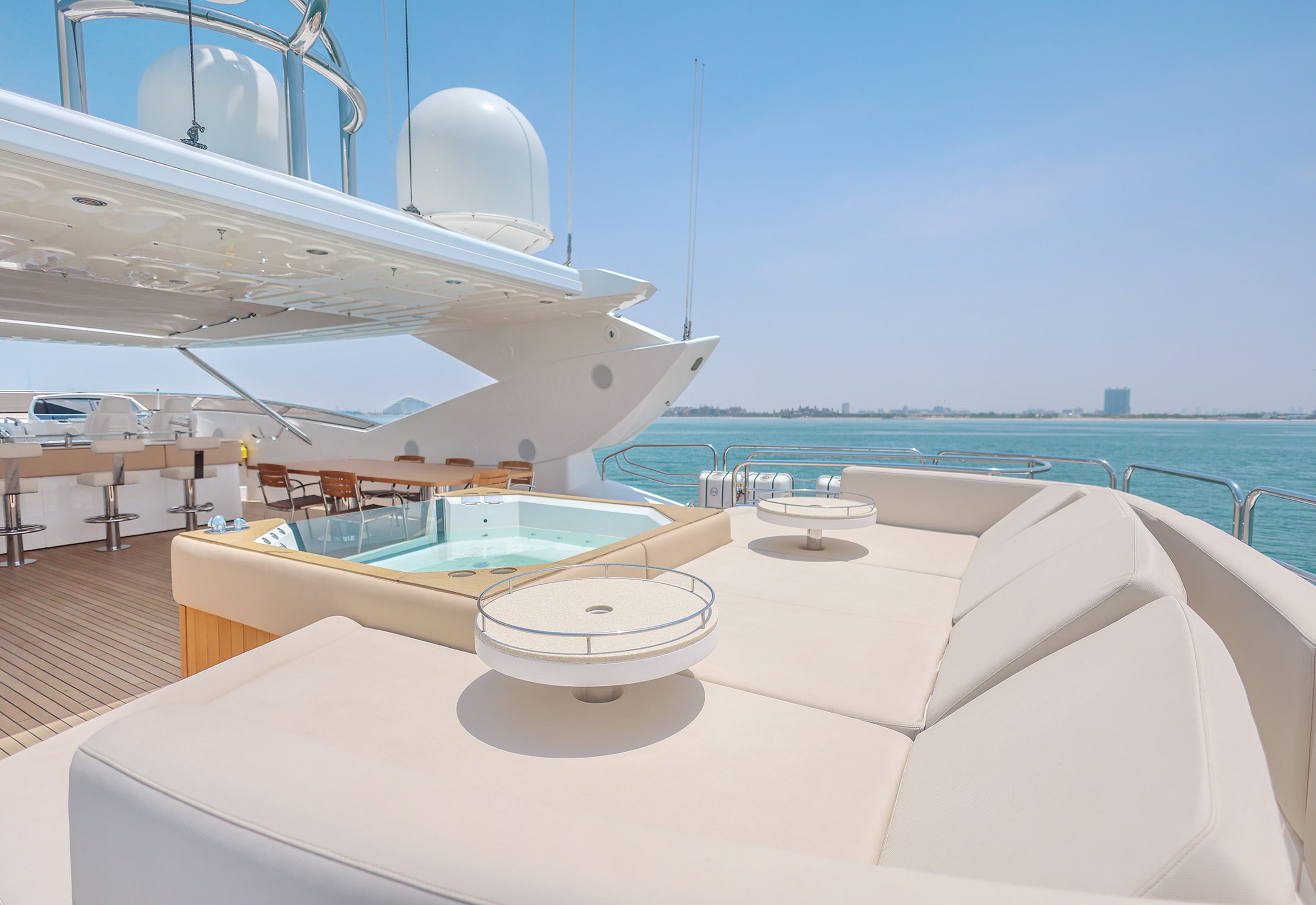

From aft with Jacuzzi surrounded by sunbathing beds, followed by dining table opposite to wet bar with sink & tap, fridges, Ice-crusher, grills and storage. Forward there is fly bridge navigation station and access to raised pilothouse.

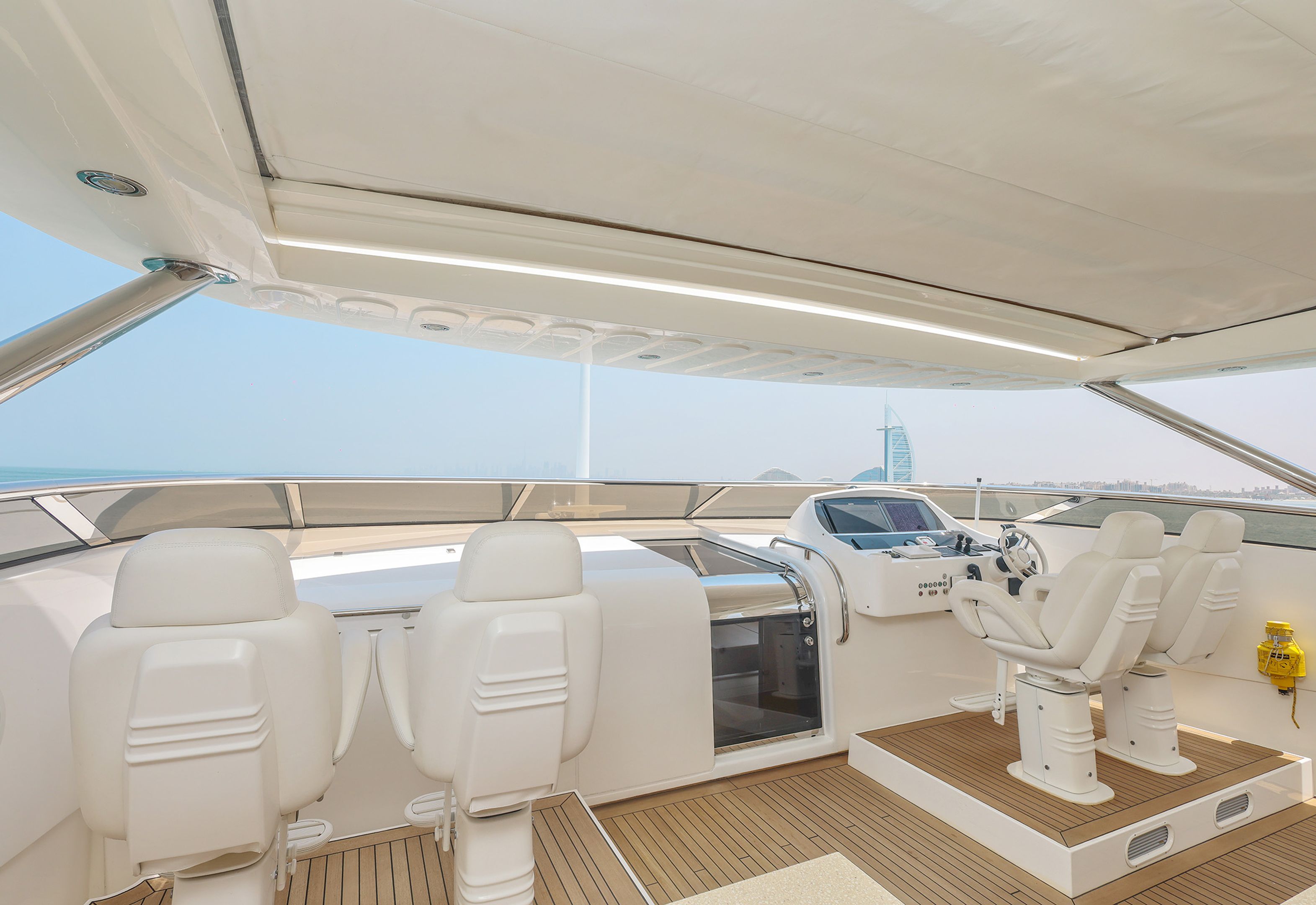

The Flybridge is also equipped with recessed Flat TV screen in the mast, mist sprinklers, hardtop retractable awning and aft mast retractable sun awning
Retractable sun awning flybridge hardtop in white
Aft Cockpit retractable sun awning
Fold-out wing station port side of flybridge

ELECTRICAL SYSTEM

• AC Supply & Distribution
• Connection to shore power through Glendenning 100amp 20mt master cable. Seamless transfer switching between generator and shore power
• Marine Personal Assistant (M.P.A) control of tank levels, breaker status, alarm activation and monitoring, pump controls, bilge and fire information and all electrical load management

ANCILLARY MACHINERY

• WATERMAKER #1 – HRO 180L/H 2 membranes Horizon Seafari H1212101480
• WATERMAKER #2 – HRO 120L/H 1 membrane Horizon Seafari H1212000630
• Stabilizers (at anchor) – ABT TRAC 370 fin Stabilizer 21.5 Sq ft (type 16X)
• Bow Thruster – ABT TRAC 20 100HP (American Bow Thruster)
• Stern Thruster – ABT TRAC 65HP
• Steering System – HYDRIVE
• Emergency Steering System – MANUAL, 220V/24V

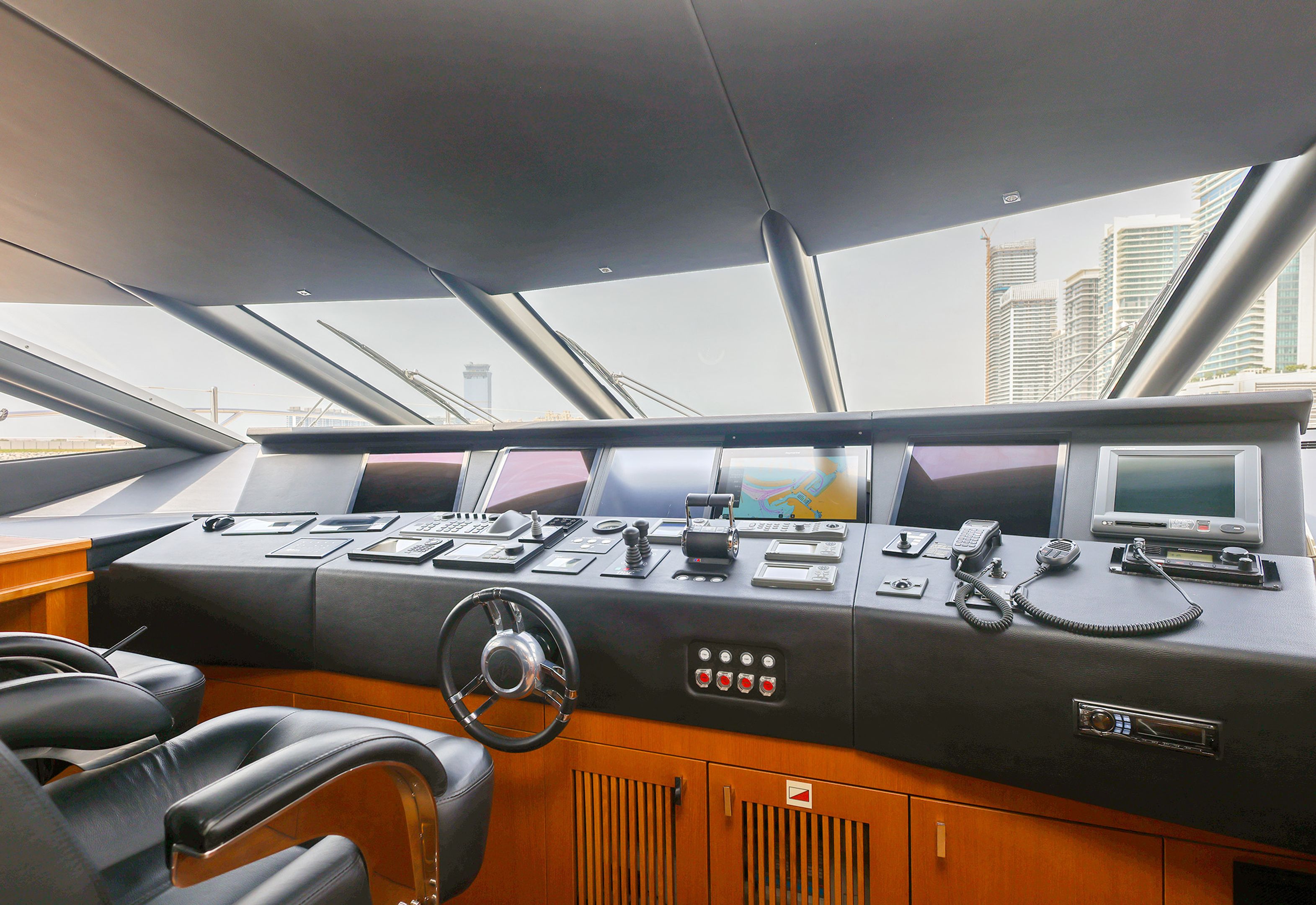

• Helm/Control (4) Stations – Wheelhouse – Flybridge – (2) Wings
• Sewage System – HAMANN
• Black Water System – TECMA 24V
• Discharge/macerator pump – 220/380 V AC – 140l/min
• Fresh Water System – (2) GIANNESCHI
• Water mist system – Flybridge hardtop – 8 pcs
• Steam shower Owner – Kohler 7kW
• Grey Water System – TECMA wastewater pumping units
• Discharge/macerator pump  – 220/380V AC – 160 l/min
• Fuel Filtration – ALFA LAVAL MIB 303S-13 7500T/Min 760 lt/hr
• Extraction & Ventilation System – 165m3/mn A60 approved marine fire dampers

HYDRAULIC SYSTEM

• Power pack
• (2) pumps 220V AC
• Oil Tank Capacity up to 100 litres

Auxiliary Hydraulic Pack

• Tender garage door
• Tender garage door locking pins
• Trim tabs
• Hydraulic Tender Recovery Winch
• Hydraulic Rise & Fall Bathing Platform
• Bulwark
• Balconies and locking cylinders
• Master Stateroom Balconies and locking cylinders

Central Hydraulic System

• American Bow Thruster bow & stern, Stabilizers
• (2) Anchor winches
• (2) warping capstans
• (2) hydraulically driven seawater-cooling pumps.

PTO – Pump on port Generator, both Main engine, 2x 11kw AC pump A locally mounted manual hand pump, in the event of ships power loss, can also operate the System

COMMUNICATION

• Communication System – Panasonic KX-T7730
• Satcom(s) – Furuno 0560
• VHF Fixed – SAILOR RT5022 VHF DSC
• VHF Handheld – MIALANA SIMRAD GMDSS
• VHF – SIMRAD RS87 DSC VHF (wheelhouse, flybridge helm, crew mess, emergency steering)
• VHF – Sailor RT5022 repeater hand set at the fly helm
• Loudhailer – Hailer horn connected to SIMRAD RS87
• Telephone System Two shoreline – Phone and Fax connected to PABX
• PABX telephone – B&O telephone Wheelhouse, Captain’s cabin, Main Saloon, Master Stateroom, Starboard twin guest cabin, Port twin guest cabin
• Emergency Radio Beacon – SIMRAD EP50 EPIRB & SART SIMRAD SA50

Communication Equipment

• (2) handheld VHF SIMRAD AX50 GMDSS
• Thrane & Thrane V7 broadband
• Fixed data points
• Wireless Access Points

Navigation

• Sat TV – (2) Seatel 4004
• Radar – Furuno FAR2117BB 96 Nm
• Radar – Furuno 1944BB 72 Nm
• Autopilot – SIMRAD AP 50 Autopilot with RF45X Rudder ref
• Gyrocompass – COMNAV DV2-FURUNO Satellite Compass
• Compass – FURUNO SC50 Satellite compass interfaced to autopilot
• Compass – Richie COMPASS
• Displays wheelhouse – (3)    19’’ Hatteland screen
• Display Flybridge – (2) 15’’ Hatteland screen
• Navigation display – Radar integration for Transas, AIS class A transponder, ARPA Integration for Transas
• Satellite System – Signal from Transas to be fed on Saloon TV only
• Searchlight – THRANE & THRANE fleet 33 phone system
• Windscreen Wipers – (1) 24V Sanshin remote searchlight
• Air Horn – (5) pantograph with screen washers
• Depth Sounders – Kahlenberg D2 with KA500 Air Compressor
• GPS – Furuno MULTI STATION RD 30
• Navigation Display – SIMRAD GN 33
• Chart Software – Hatteland
• GPS – Transas Navisailor chart plotting bridge & flybridge
• NAVTEX FURUNO AIS
• FURUNO NX700
• Weather Fax – FURUNO FAI
• Wind Indicator – INMARSAT C FURUNO N700B

Flybridge Navigation

• VHF – SIMRAD RS 87 GMDSS
• VHF – SAILOR CU 500
• Autopilot – Repeater SIMRAD AP50
• Repeater – Bow & Stern Thruster Control TRAC, Hydrive Steering Control, Night Camera – CCTV – Monitor – Flir
• Search Light  – SANSHIN HR 1012

AUDIO VISUAL EQUIPMENT

• BANG and OLUFSEN system Audio Visual up throughout all accommodation
• Main Deck Saloon
• LG 4K OLED 65 Model 65E7V “fixed”
• Bose 38 Lifestyle surround sound-system
• Satellite decoder with local control
• IPod docking station

Owner Cabin

• 50” LCD television
• Bose 28 Lifestyle surround sound-system
• Satellite decoder with local control
• IPod docking station

Guests Double Cabins (2)

• 32” LCD television
• Bose 321
• Satellite decoder with local control
• IPod docking station

Twin Cabin & Gym Room

• 26” LCD television
• Bose 321
• Satellite decoder with local control
• IPod docking station

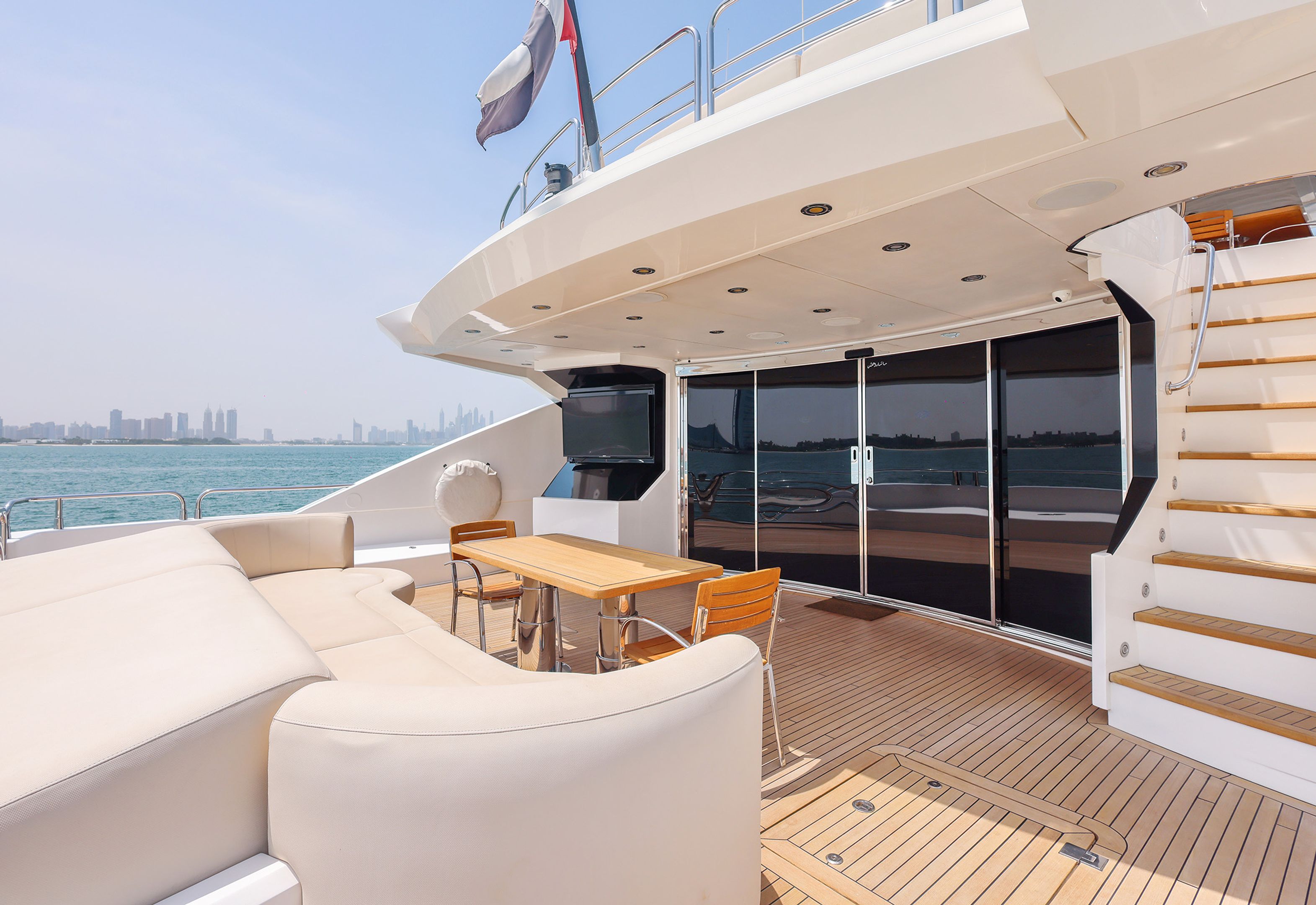

Sun Deck & Main Deck Aft Cockpit

• (3) pairs Marine speaker (zoned from Main Saloon)
• (3) Bose SA2 Amplifier
• Bose PMC II remote

GALLEY AND LAUNDRY EQUIPMENT

Main Galley appliances

• Oven – (2) MIELE M5681B 600mm
• Micro-wave – MIELE 8261SS
• Ceramic Cook top – GAGGENAU VC230
• Induction Cook top – (2) GAGGENAU VI230
• Extraction Hob – MIELE DA3190 (with upgraded metallic ducting)
• Dishwasher – MIELE Professional G7856
• Coffee Machine – MIELE CVA 5056 (Built-in)
• Wine Cooler – MIELE KWL4154 UG-1

Main Deck Saloon appliances

• Icemaker – RARITAN
• Refrigerator – MIELE K621 Ui-1 (undercounter)
• Stern Laundry appliances – MIELE Professional PW6065
• Washing Machine – MIELE Professional PT7135
• Condenser Dryer

Crew Mess appliances

• Microwave – MIELE M8201-1
• Refrigerator – MIELE K621 Ui-1
• Dish washer – MIELE G1162 SCVI
• Flybridge wet bar appliances
• (2) Waeco CR110 Icemaker RARITAN Standard Griddles/grill
• (2) GAGGENAU VR421
• Crushed Ice Machine

AMENITIES

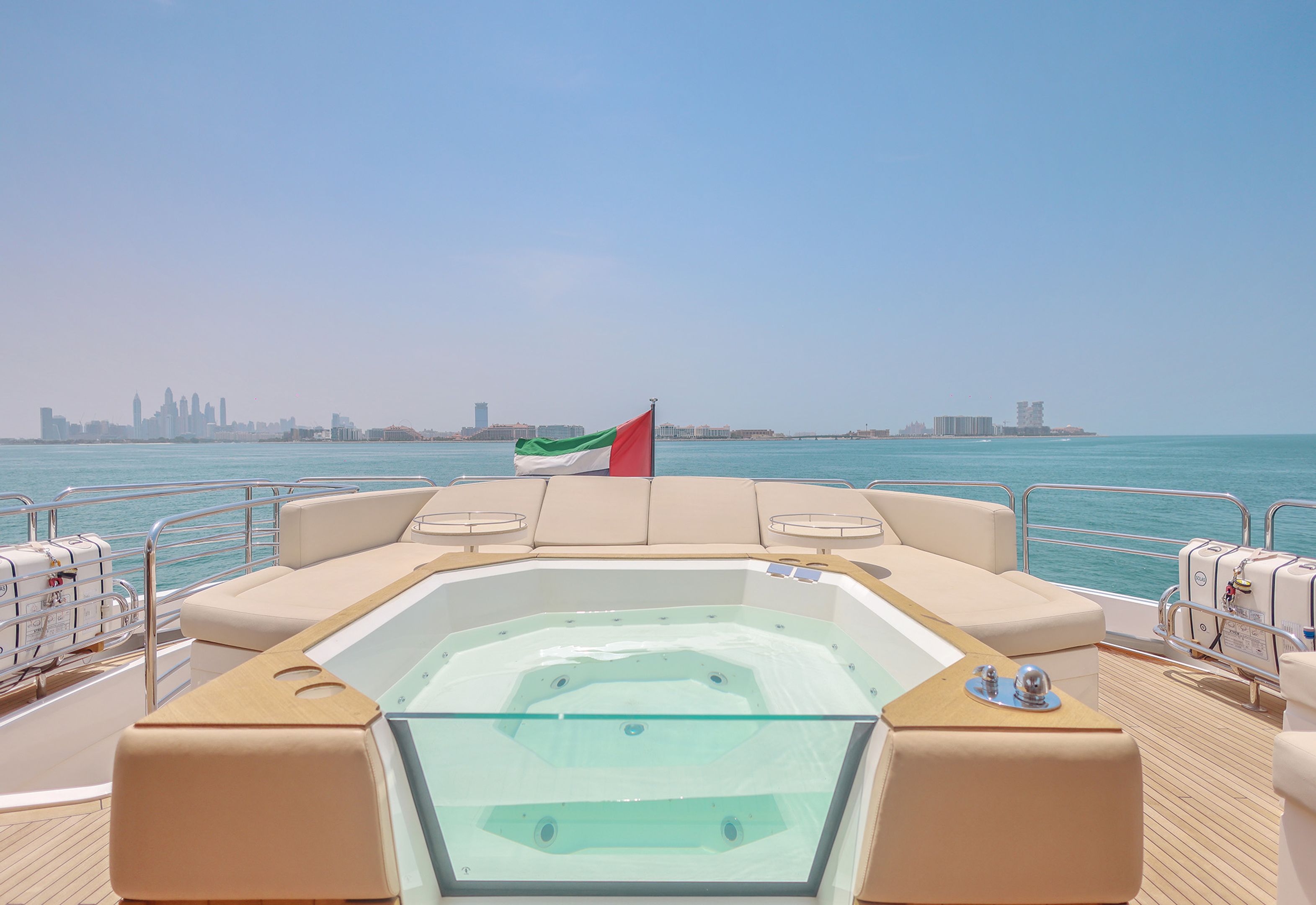

• Jacuzzi – Flybridge (seats 4 people)
• Gym – Starboard forward Cabin
• Steam Shower – Owner bathroom
• Bathrooms – All bathrooms equipped with under floor heating

DECK EQUIPMENT

• Anchor Windlass System – (2) MUIR vertical VRC 8000 HYDRAULIC
• Anchors – (2) Stainless Steel
• Anchor Chain -190mt & 165mt, Diameter 17.5mm. Galvanised stud linked chain
• Deck Capstans – (2) MUIR VC6000 HYDRAULIC
• Stern Gangway – BESENZONI 6mt x 0.58mt extension, stainless-steel
• Underwater lights – (10) under water lights Seavision SV19 (24vdc) 80mm
• Additional set of Mooring
• Bow Fairleads – (4) with integral rollers

LIST OF EXTRAS IN EXCESS OF SUNSEEKER PLATINUM OPTIONS

• Air Conditioning air handler upgrade to quieter running AHDC units
• Antifouling upgrade
• Auto Troll option for Transmissions (Trolling for gearboxes)
• Balcony – Forward Main Deck Stateroom Port side
• (2) Balcony – Amidships Main Deck Saloon
• Oak interior wood finish
• Custom Refrigeration in Main Galley
• Deck and Superstructure moulded in Ral White
• Misting system for flybridge
• Forward long-range fuel tank (5,150 litres)
• Frequency converter ASEA
• Fuel cleaning centrifuge Alfa Laval
• Generator upgrade
• GRP Flybridge Hardtop
• Hydraulics – Stern thruster – Hydraulic (65hp)
• Hydraulics – Trac Star Digital fin stabiliser system
• MPA Tisseen Monitoring System 15″ touch screen display
• MPA Monitoring – 15″ touch screen display in Crew Mess
• MPA Monitoring – CCTV system with four cameras and dedicated display in crew mess connected to Tisseen system
• MPA Monitoring – Generator Control and Monitoring System Upgrade Additional system feature allowing complete control and monitoring of generator parameters and alarms via MPA Touch Screen
• MPA Monitoring – Handheld wireless tablet display
• MTU 4000 series toolkit with stowage in engine room
• Passerelle Upgrade – Stainless Steel Finish
• Polished Stainless Steel Anchors
• Retractable Electric Sun Awning for mid deck overhang
• Retractable Electric Sun Awning for Flybridge Bar Area
• Flir camera night watch
• Security alarm system
• Sewage Treatment Plant (interfaced to Tisseen System)
• Sunshade – Additional stainless steel socket for sunshade listed below
• Sunshade – Square type three-metre sunshade for use as parasol including one stainless steel socket

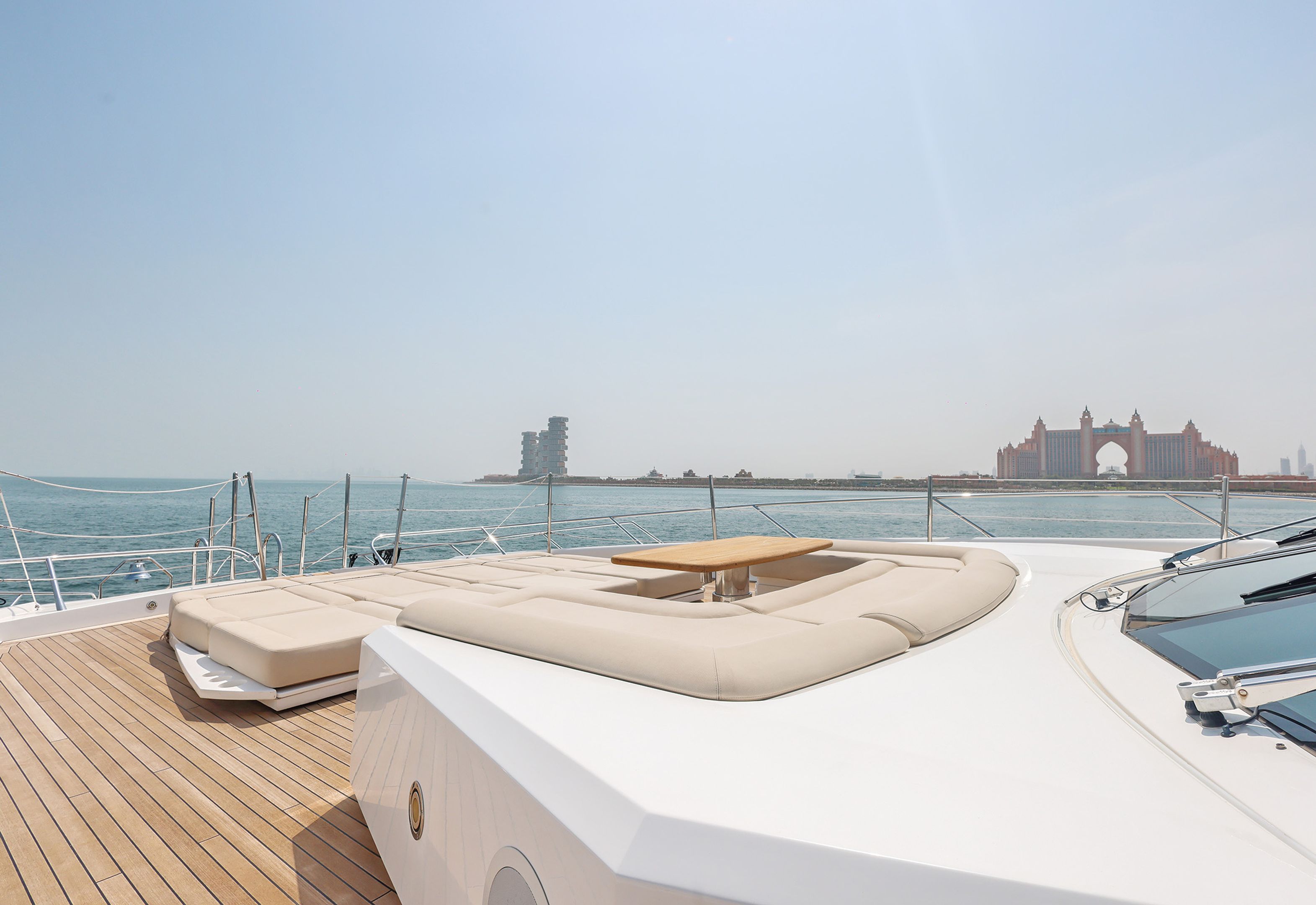

• Teak Forepeak deck area and Flybridge Deck
• Tender 6m Pascoe 6.0 m
• Trailing for engines
• Wind system to be connected to Central Navigation Display
• Under Water Lights – 5 x Large Xenon (3 across the transom and 1 aft either side)
• Automatic Main Saloon doors

ADDITIONAL EXTRAS

• Cleats – Second pair of cleats at the bow
• Tinted film to side windows and sliding doors
• 3rd generator (night generator-silent) with separate underwater exhaust
• Bow fairleads with rollers in order to save rope wear
• Tool stowage to have space
• Compressor air system
• Central display upgrade to 21″
• Radar display upgrade to 21″
• Chartplotter display upgrade to 21″
• SAT TV with receiver on each TV
• SAT Thrane & Thrane phone system doom to match SAT TV doom
• Notice* All areas apart crew mess, crew and captain cabins to have B&O TV’s and surround
• systems
• Table and chairs on fly-bridge apart from main salon
• Diver’s compressor
• Yacht name written in stainless steel with LED diodes
• MTU Blue Line controls in engine control room
• (4) Deck chair on fly-bridge
• Headroom: 7’2″ 2.1m
• Hardtop: GRP with BESENZONI retractable canopy
• Decks: Teak planking 12mn expect flybridge 9mn

SAFETY, SECURITY, AND FIREFIGHTING EQUIPMENT

Security

• CCTV System (cameras): 1 Port side facing forward, facing aft, 1 Starboard side deck, forward-facing aft, 1 Main Deck Aft Cockpit, 2 Engine Room, 1 Tender Garage
• Full 15’’ M.P.A Master Touchscreen display in crew mess
• Navigation parameter interface allowing NMEA data to be displayed on the M.P.A screens
• Primary M.P.A Touchscreen (2) Electrical Main and Wheelhouse
• Slave M.P.A Touchscreen (2) Engine Room and Crew Mess
• Tisseen System: Monitoring all system on yacht (electric power, generators, water, outside light)

Safety and Life Saving equipment (LY2)

• Life rafts – ZODIAC (10 men) XTREM 2010 10 MANSART
• Life Buoys – 4kg & (2) 2.5kg
• Life Jackets – 22 Complete with retro-reflective tape and lights adult
• Life Jackets Child – 2
• Water Sports Buoyancy aids – 6
• Grab Bags – 2 SOLAS B
• MOB smoke & light – 2
• Buoyant Line – 2
• Set of line throwers -1
• Rocket flares – 6
• Flare polybottle – 1
• Axis 30 VHF emergency radio – 2
• Axis 30 Spare testing battery – 2
• (6kg Powder, 9ltr Foam, 5kg CO2, Spare powder Cartridge, Spare Powder, Sapre Foam Cartridge, Sapre Foam Compound)
• Cat C Medical kit for 20 persons (positioned under the captain’s bunk)

Firefighting Equipment

• Smoke detectors/ heat Sensors in all cabins
• Fixed CO2 Fire System – (2) Electrical Room
• High Fog System
• Garage/Engine Room
• Sprinkler System (2) Garage Sprinkler
• Fire Extinguishers – (2) FM 200 Fire Engine Room/ Electrical Room; (2) Portable Co2 in the Engine Room; (1) Portable Co2 in the Electrical Room; (6) Powder in the engine Room; (1) Powder in the Electrical Room; Fire fighting: (2) Asbestos Suit
• Smoke detector alarms in Machinery spaces with heat detector alarms
• Fire & Bilge System
• Primary Fire & Bilge pump
• 400 V A.C 5.5kW 50/60Hz 3 phase – self priming – Circa 45m3/hr – (Approx 12.5l/sec) @ 10m head in the engine room
• Secondary Fire & Bilge pump
• Coupled to a manual start diesel engine – capacity of circa 40m3/hr (approx 11l/sec) @ 10m head in a dedicated pump room
• Emergency Bilge pump
• Engine driven – self priming
